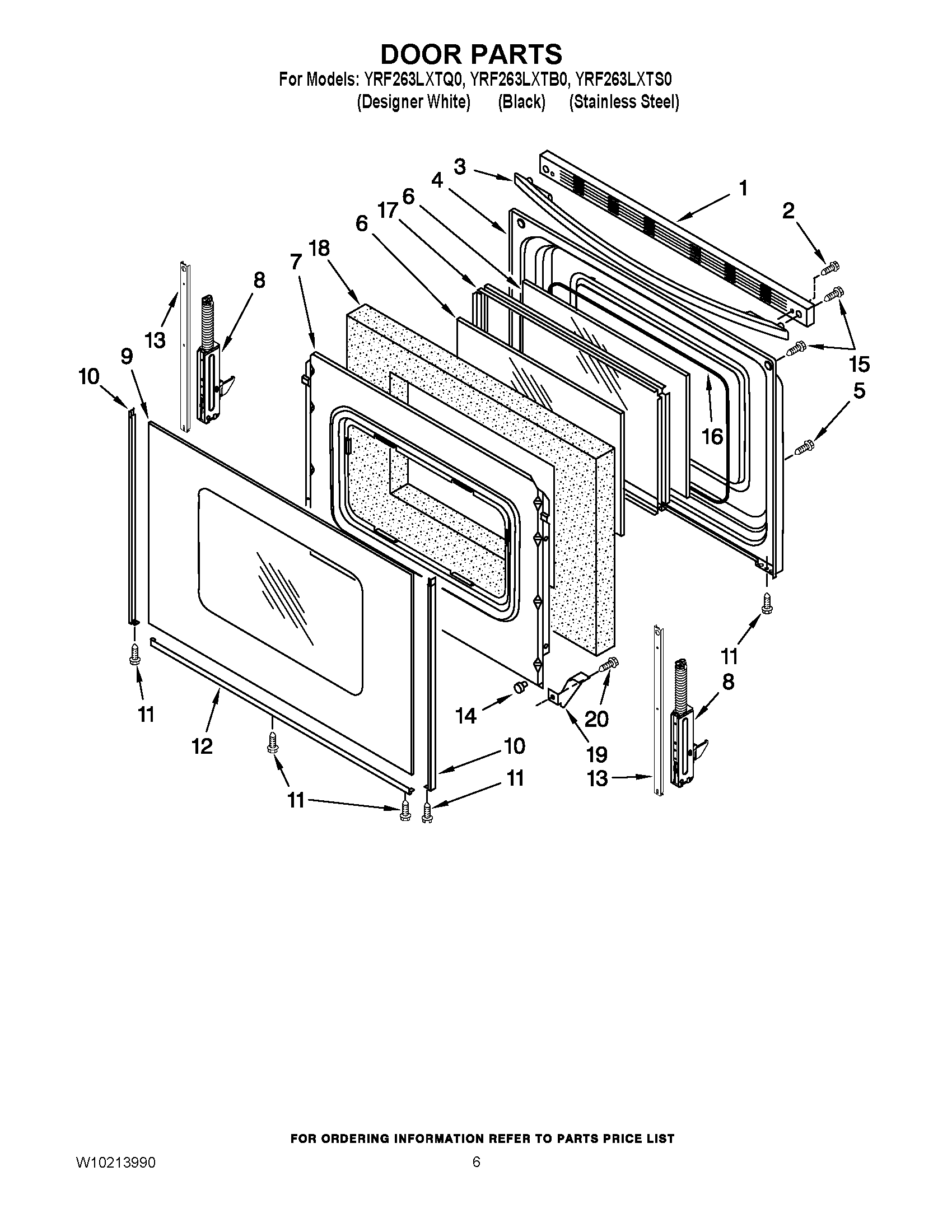

YRF263LXTB0 05 – DOOR PARTS

Products

Position	Product
1	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	WPW10200660 Whirlpool Range Oven Door Handle Screw
3	WPW10323589 Whirlpool Door Handle
3	W10817434 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	W10347466 Whirlpool Door Hinge
9	WPW10118455 Whirlpool Door Glass Assembly
9	WPW10118454 Whirlpool Door Outer Glass White
9	WPW10330077 Whirlpool Door Glass
10	W10761018 Whirlpool Dishwasher Left Door Trim
10	W10761014 Whirlpool Right Door Trim
10	WP8523172 Whirlpool Left Door Trim
10	WP8523166 Whirlpool Door Trim
10	8184858 Whirlpool Door Trim
11	W10491985 Whirlpool Screw
12	WP8523177 Whirlpool Door Trim Assembly
12	WP8523175 Whirlpool Door Trim Assembly
13	W11502236 Whirlpool Door Trim
14	238614 Whirlpool Bumper Hinge
15	W10777162 Whirlpool Screw
16	W10137382 Whirlpool Clip
17	SEAL, WINDOW
18	WPW10316950 Whirlpool Window Frame
19	WPW10278991 Whirlpool Insulation
20	WP3196175 Whirlpool Screw
