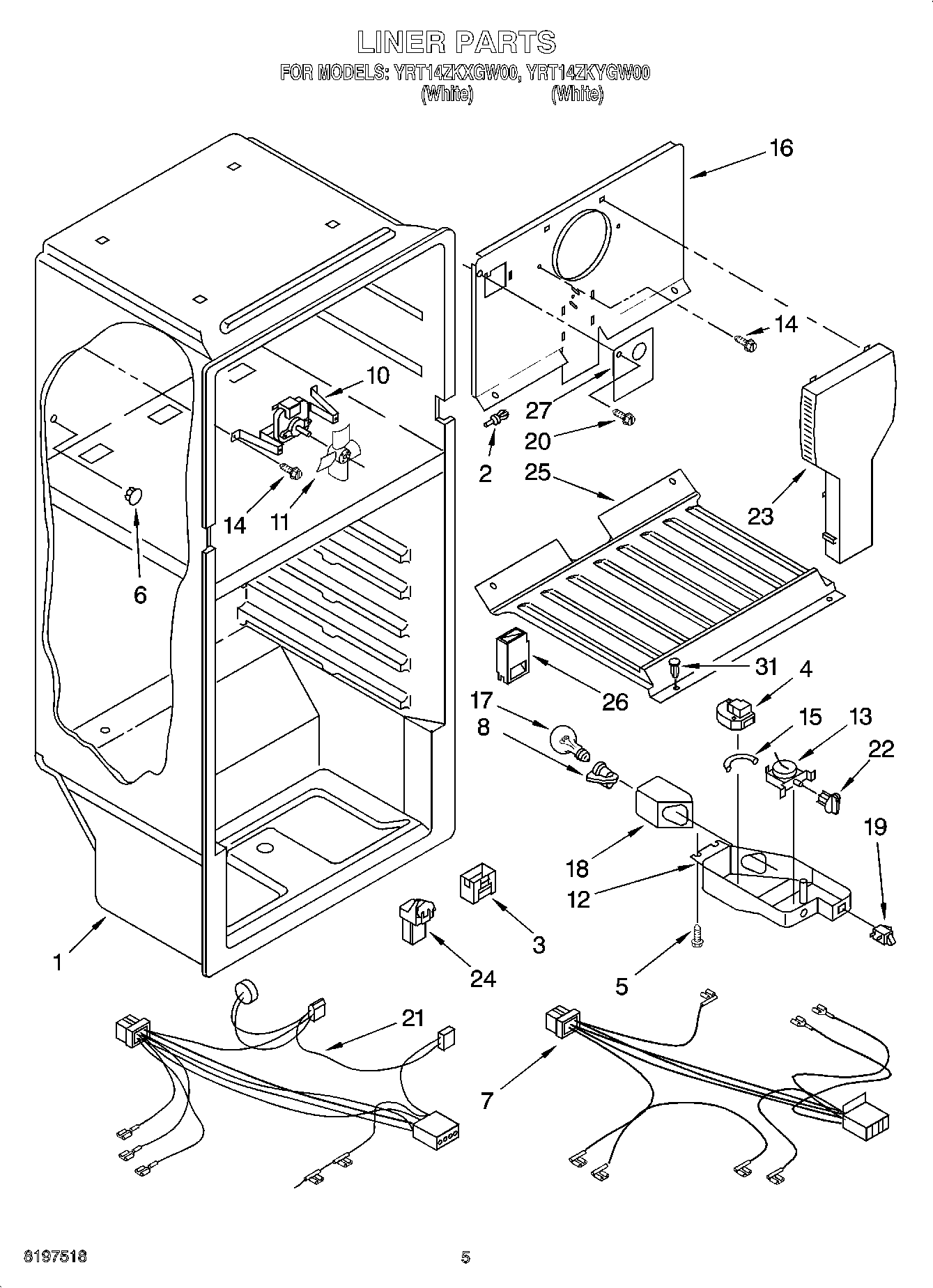

YRT14ZKYGW00 03 – LINER PARTS

YRT14ZKYGW00 03 – LINER PARTS

Written by

in

YRT14ZKYGW00 03 – LINER PARTS

Products

Position	Product
	WPL ARI139217A
	285006 Whirlpool Spray
	WPL ARI139213A
	72032 Whirlpool Touch Up Paint Black
	WPL ARI139218A
	LITERATURE PARTS (Use & Care Guide)
	LITERATURE PARTS (Service & Wiring Sheet)
	Energy Label
	WPL ARI139214A
	WPL ARI139215A
	WPL ARI139216A
	Torx Key
	WP72107 Whirlpool Touchup
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	833938 Whirlpool Refrigerator Terminal
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Air Diffuser
4	WP2183400 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	WPW10567140 Whirlpool Refrigerator Thermostat
14	WP489474 Whirlpool Refrigerator Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP489442 Whirlpool Refrigerator Screw
21	WP2192096 Whirlpool Refrigerator Wire Harness
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	Hood And Foil Assembly
25	Freezer Floor
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
31	212643 Whirlpool Refrigerator Permagum Sealer
31	876370 Whirlpool Refrigerator Insulation
31	WP503695 Whirlpool Refrigerator Sealer
31	Miscellaneous
31	WP489115 Whirlpool Refrigerator Rivet
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	511873 Whirlpool Refrigerator Paint
31	TAPE, VINYL (3/4 X 108“)
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	WPL 799833
31	Door Reversal Instructions
31	WPL 876029
31	WPL 799832
31	606755 Whirlpool Refrigerator Bag
