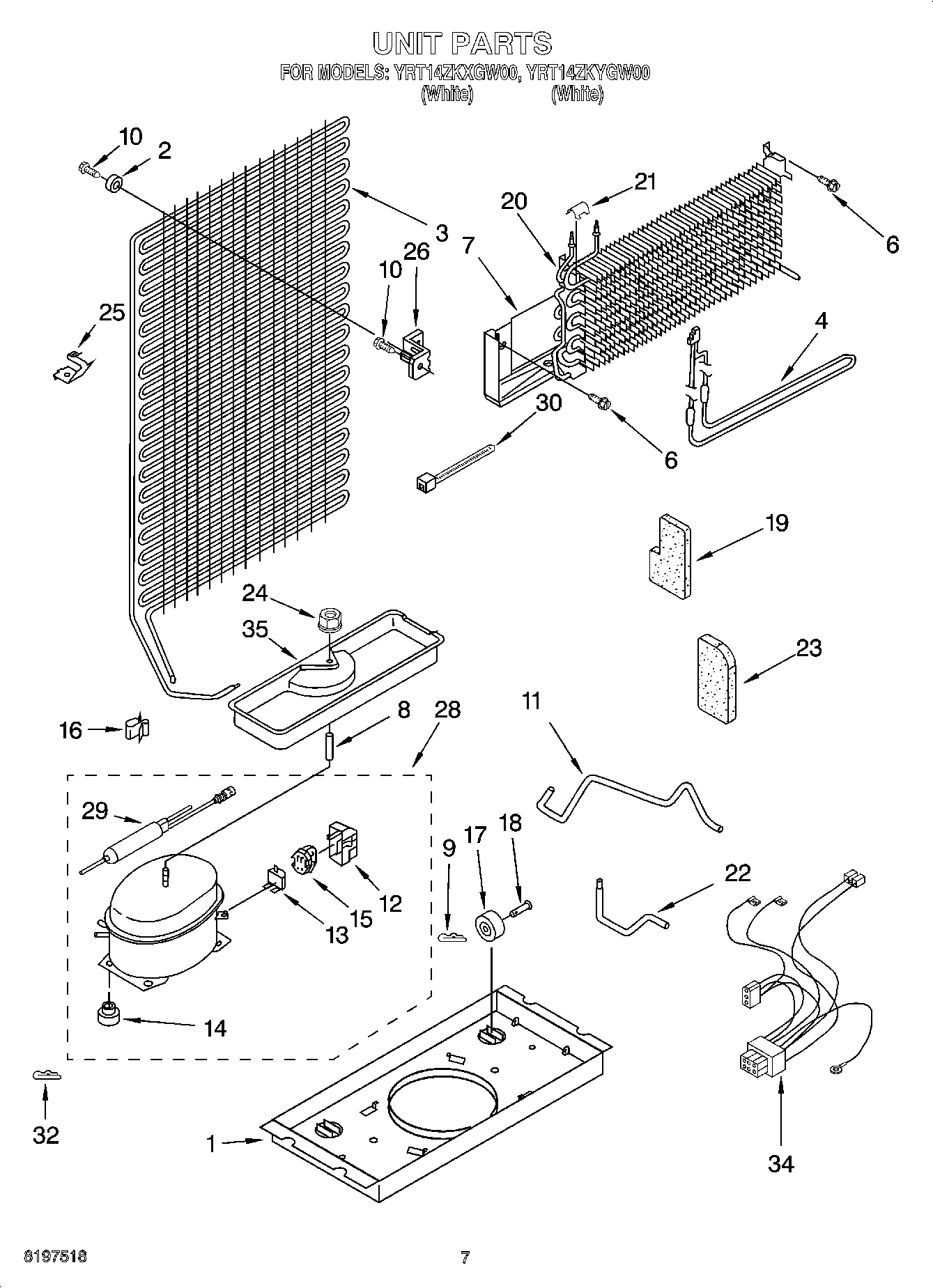

YRT14ZKYGW00 04 – UNIT PARTS

Products

PositionProduct
1WPW10222451 Whirlpool Refrigerator Support
2Bumper
3WP2252730 Whirlpool Refrigerator Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
6WP489442 Whirlpool Refrigerator Screw
7Heat Shield
8Spacer
9WP2174706 Whirlpool Refrigerator Pin Hitch
10WP488163 Whirlpool Refrigerator Screw
11Tube, Discharge
12WP2162358 Whirlpool Refrigerator Terminal Cover
14876811 Whirlpool Grommet
14WP2163786 Whirlpool Refrigerator Grommet
15WP4387938 Whirlpool Refrigerator Overload
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
198201619 Whirlpool Refrigerator Support Assembly
20WP2263919 Whirlpool Refrigerator Evaporator
219791833 Whirlpool Refrigerator Clip
22Tube, Process
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
26Bracket, Condenser
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32Clip, Compressor
34Wire Assy. Unit
35Following Parts Not Illustrated and Optional Parts Not Included
35Tray, Evaporator
35Start Kit
35VALVE, ACCESS (5/8“)
35VALVE, ACCESS (1/2“)
35WP978025 Whirlpool Refrigerator Valve
35978030 Whirlpool Refrigerator Valve
35978027 Whirlpool Refrigerator Primary Valve
35978026 Whirlpool Refrigerator Primary Valve
35876764 Whirlpool Refrigerator Primary Valve
35REFRIGERANT CHARGE 3.75 Ozs. (R134A)
