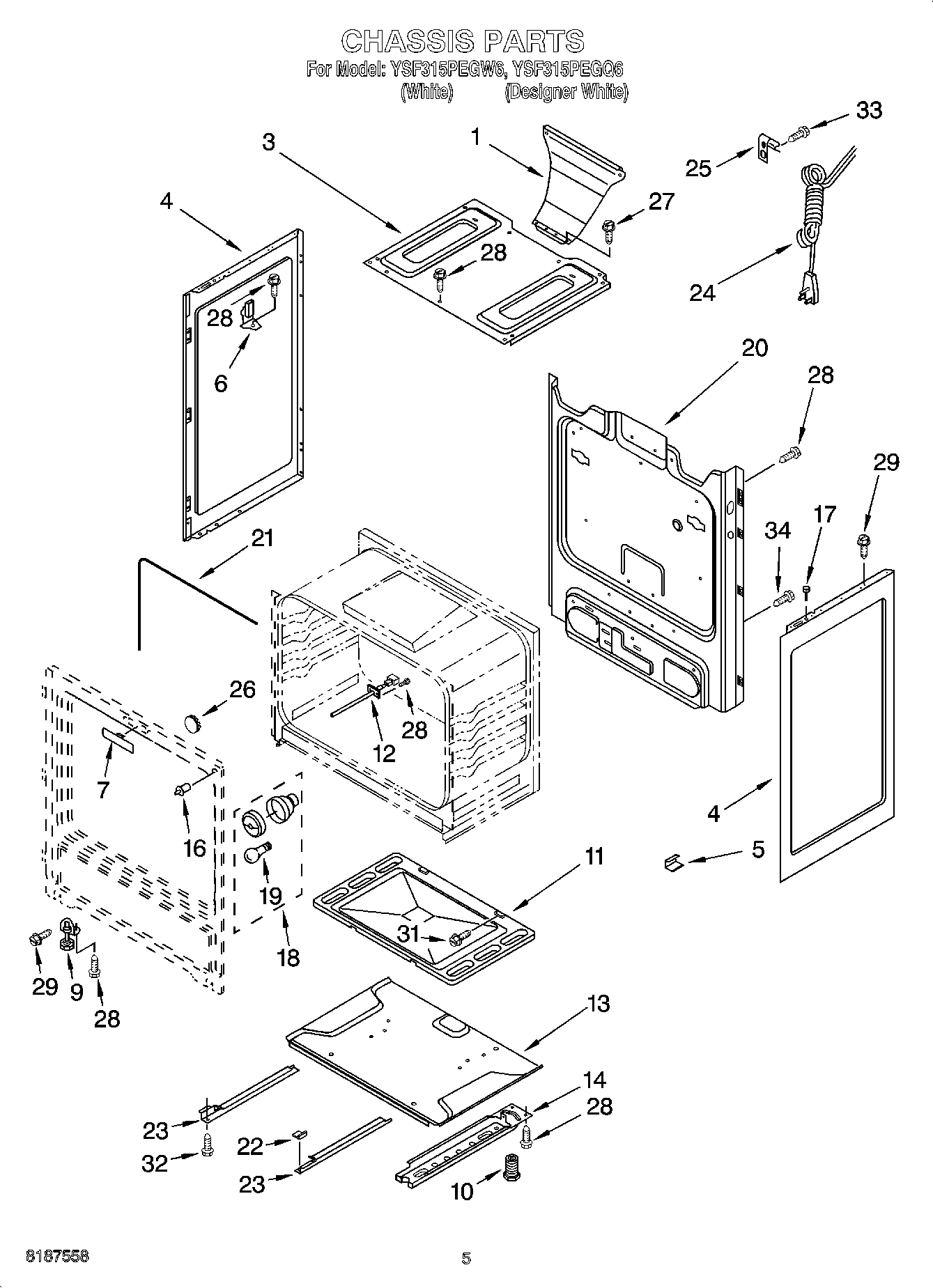

YSF315PEGQ6 04 – CHASSIS PARTS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
3	W11379351 Whirlpool Burner Box
4	WPW10575396 Whirlpool Side Panel
5	Clip, Panel (6)
6	Brkt, Manifold Mtg (Left Hand)
6	Brkt, Manifold Mtg (Right Hand)
7	Plug, Frame
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	WPW10181986 Whirlpool Oven Sensor
13	Baffle, Base
14	WPW10306546 Whirlpool Base Rail
16	Switch, Door
17	238614 Whirlpool Bumper Hinge
18	W11594027 Whirlpool Range Oven Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Glide, Front (2)
23	Plate, Guide (Right Hand)
23	Plate, Guide (Left Hand)
24	WP9757891 Whirlpool Power Cord
25	549193 Whirlpool Refrigerator Power Clamp
26	Button, Plug (25/32`` (2))
26	Button, Plug (Oval (1))
26	Button, Plug
27	WP3196557 Whirlpool Screw
28	SCREW
29	Screw
31	Screw
32	WP3196175 Whirlpool Screw
33	W11244557 Whirlpool Screw
34	WPW10208653 Whirlpool Insulation
34	WP3196183 Whirlpool Screw
34	TIE,WIRE
34	W11688737 Whirlpool Insulation
34	Insulation
