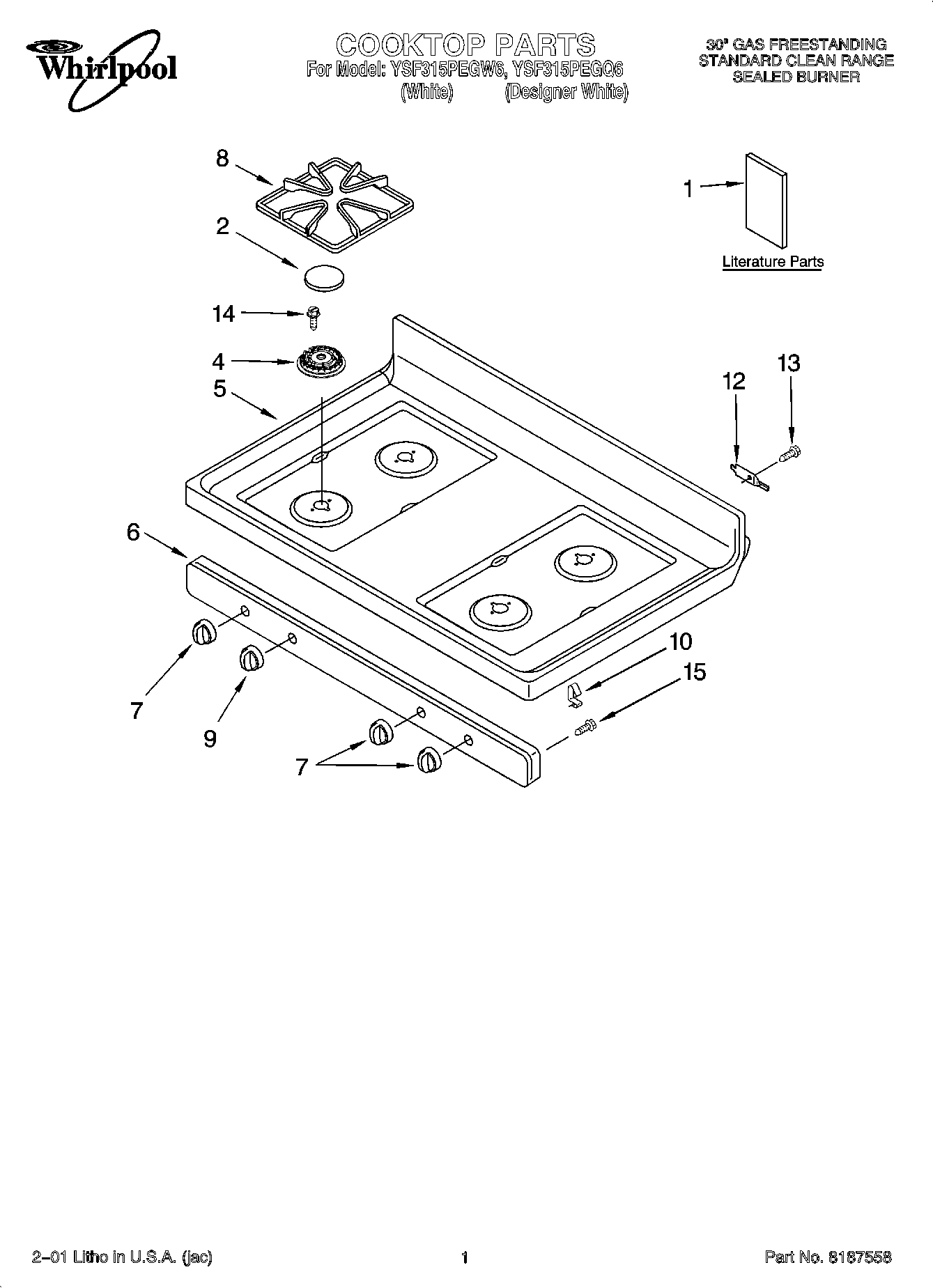

YSF315PEGW6 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation Instr (Template))
1	Literature (Installation, Instructions (Template))
2	WP3191905 Whirlpool Burner Cap
2	WP3191904 Whirlpool Burner Cap
2	WP3191903 Whirlpool Burner Cap
2	WP3191901 Whirlpool Burner Cap
2	WP3191898 Whirlpool Surface Burner Cap Black
2	Cap, Burner 6K (1) (Gray)
4	WP4455981 Whirlpool Burner Head
4	WP4455980 Whirlpool Burner Head
4	WP4455979 Whirlpool Range Small Burner Head
5	W11213959 Whirlpool Cooktop
6	8523855 Whirlpool Oven Manifold Panel
6	WP8523854 Whirlpool Manifold Panel
7	WP8273104 Whirlpool Knob
7	WP8273103 Whirlpool Black Control Knob
8	W10837340 Whirlpool Grate Kit
8	WPW10268483 Whirlpool Grate Kit
10	Clip – Mounting
12	WP3195060 Whirlpool Cooktop Pin
13	SCREW
14	WP3368921 Whirlpool Screw
15	WP3196557 Whirlpool Screw
