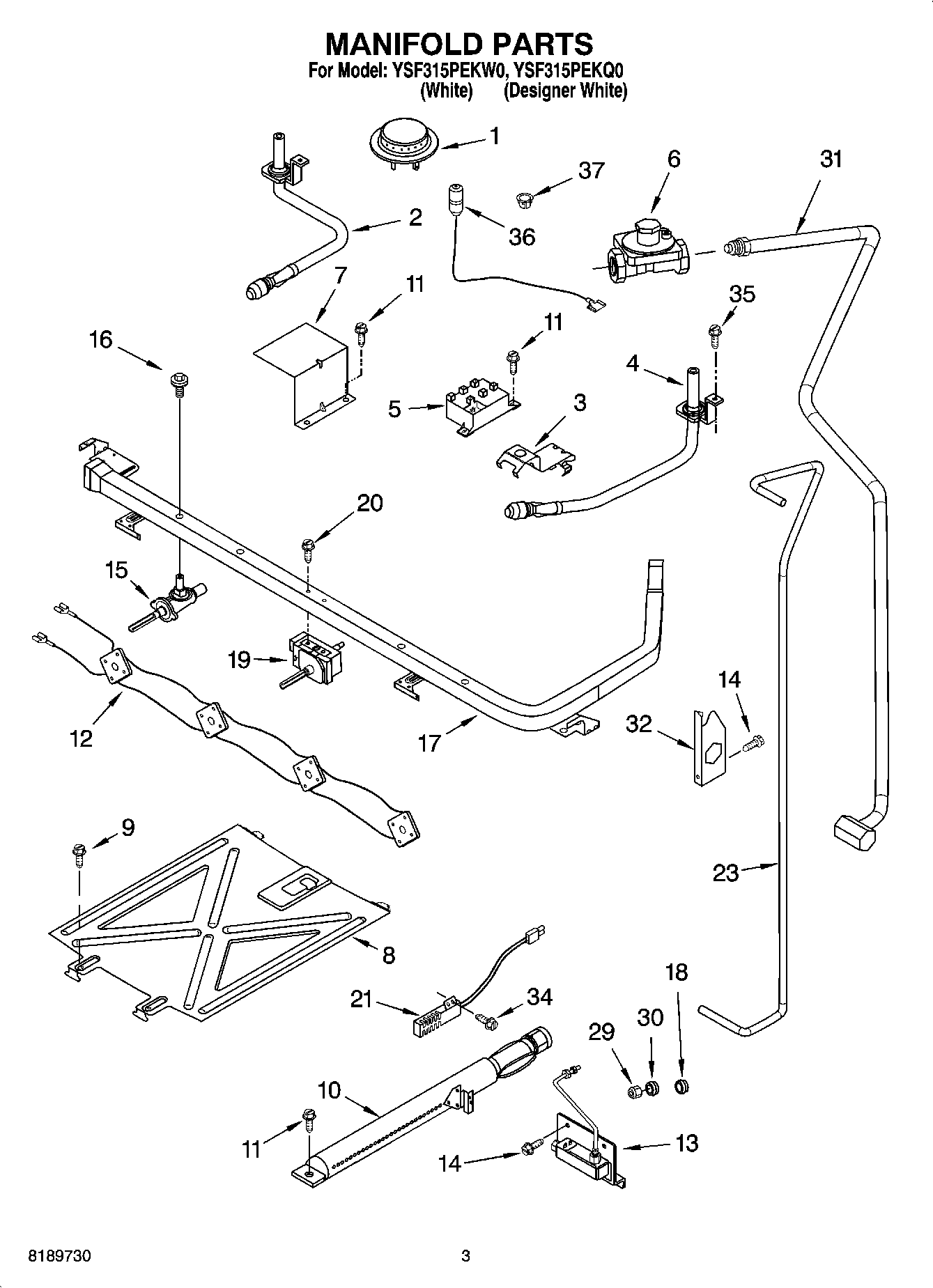

YSF315PEKW0 03 – MANIFOLD PARTSadmin2025-04-26T11:11:29+00:00YSF315PEKW0 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| 1 | Burner, Top (Left) |
| 1 | Burner, Top (Right) |
| 2 | WP6610243 Whirlpool Venturi |
| 3 | Brkt., Venturi (4) |
| 4 | WP6610244 Whirlpool Venturi Assembly |
| 5 | W11590249 Whirlpool Spark Module |
| 6 | Regulator |
| 7 | 98007192 Whirlpool Cover Model |
| 8 | Spreader, Flame |
| 9 | SCREW |
| 10 | Burner, Oven |
| 12 | Harness, Switch |
| 13 | Valve, Oven |
| 14 | W10837731 Whirlpool Screw Assembly |
| 15 | Valve, Burner (4) (11,500 BTU) |
| 15 | Valve, Burner (4) (9,500 BTU) |
| 16 | WPW10277003 Whirlpool Screw |
| 17 | Pipe, Manifold |
| 18 | Sleeve, 3/8`` |
| 19 | WPW10641988 Whirlpool Oven Thermostat |
| 20 | WP3400882 Whirlpool Screw |
| 21 | W10918546 Whirlpool Oven Range Igniter |
| 23 | Tubing (Regltr to Oven Valve) |
| 29 | Fitting, Tube |
| 30 | Fitting, Female |
| 31 | Tubing, Inlet |
| 32 | Bracket, Inlet |
| 34 | W11676351 Whirlpool Screw |
| 35 | W10837674 Whirlpool Screw |
| 36 | WPW10209656 Whirlpool Surface Ignitor |
| 36 | Igniter, Top (Super Burner (2)) |
| 37 | WPW10278150 Whirlpool Clip Assembly |
| 37 | LP Spud Kit (For Use With LP) |
| 37 | Natural Spud Kit (For use with Natural Gas) |
| 37 | Following Parts Not Illustrated |
