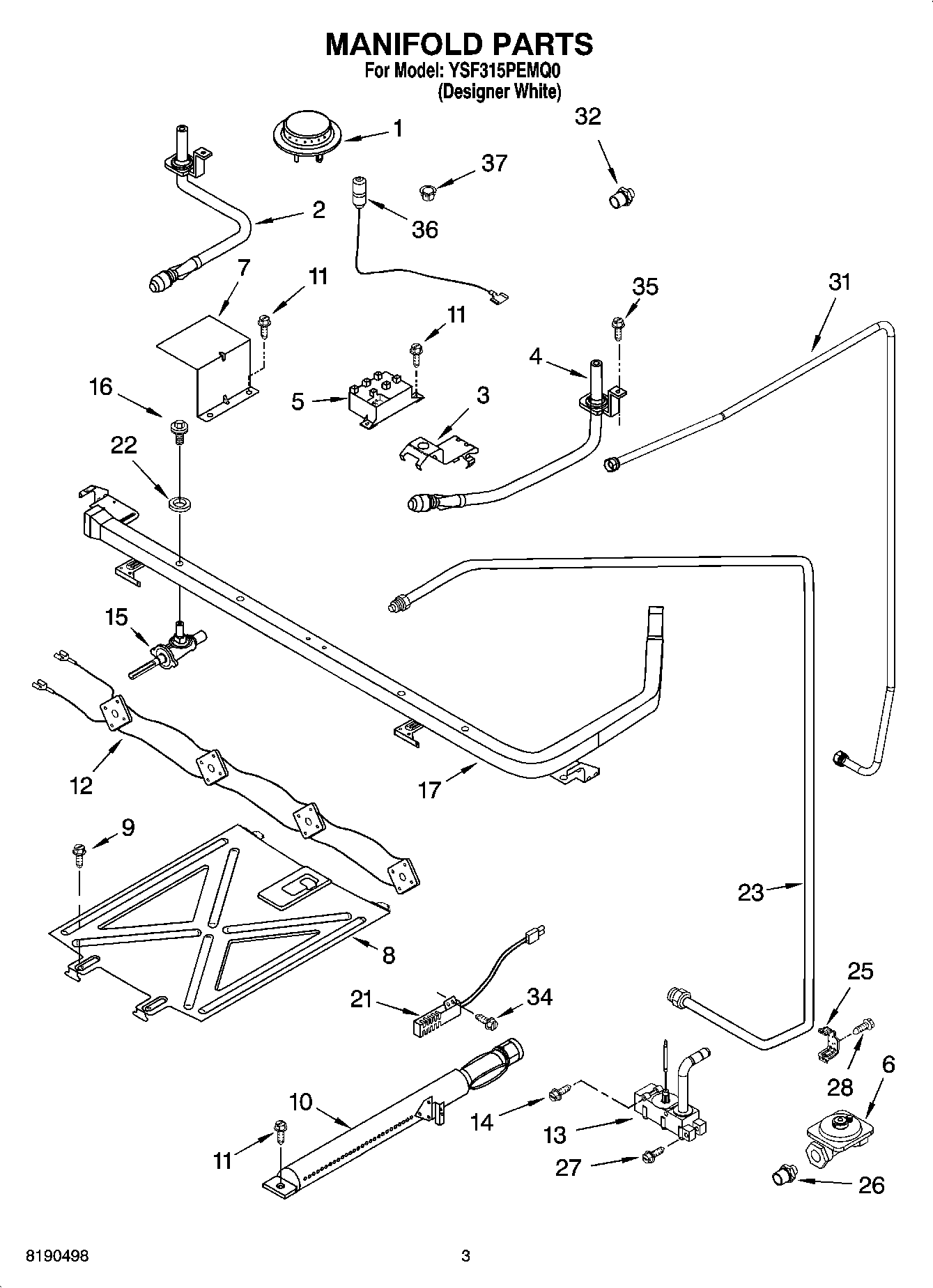

YSF315PEMQ0 03 – MANIFOLD PARTS

Products

Position	Product
1	Burner, Top (Right)
1	Burner, Top (Left)
2	WP6610243 Whirlpool Venturi
3	Brkt., Venturi (4)
4	WP6610244 Whirlpool Venturi Assembly
5	W11590249 Whirlpool Spark Module
6	Regulator
7	98007192 Whirlpool Cover Model
8	Spreader, Flame
9	SCREW
10	Burner, Oven
12	Harness, Switch
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	W10837731 Whirlpool Screw Assembly
15	Valve, Burner (4) (9,500 BTU)
15	Valve, Burner (4) (11,500 BTU)
16	WPW10277003 Whirlpool Screw
17	98013574 Whirlpool Oven Manifold Pipe
21	W10918546 Whirlpool Oven Range Igniter
22	Washer, Valve (4)
23	WPW10469571 Whirlpool Gas Tubing
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013634 Whirlpool Oven Screw
28	Screw, Ground
31	Tubing, Inlet
32	Fitting 1/4to9/16
34	W11676351 Whirlpool Screw
35	W10837674 Whirlpool Screw
36	WPW10209656 Whirlpool Surface Ignitor
36	WPW10209657 Whirlpool Oven Surface Igniter
37	WPW10278150 Whirlpool Clip Assembly
37	LP Spud Kit (For Use With LP)
37	Natural Spud Kit (For use with Natural Gas)
37	Following Parts Not Illustrated
