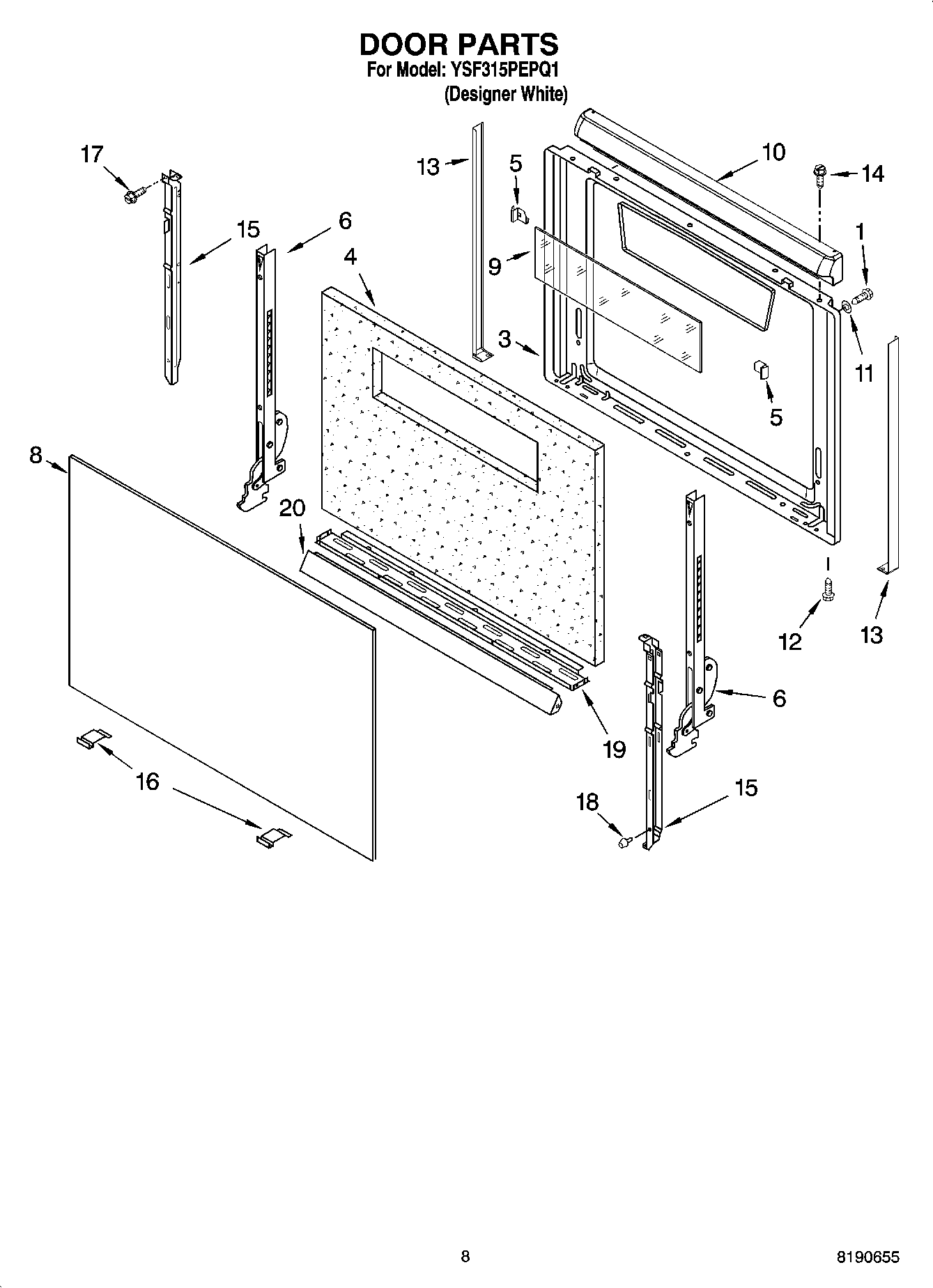

YSF315PEPQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

YSF315PEPQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

YSF315PEPQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WPL ARI139303A
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPL 8316781
	WPL ARI139302A
	98015022 Whirlpool Bushing Assembly
	WP3391018 Whirlpool Wire Tie
	CLIP, WIRE
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI139301A
	WPL ARI139300A
	WPL 98014538
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI139306A
	WPL ARI139305A
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	549193 Whirlpool Refrigerator Power Clamp
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	WPL ARI139304A
1	WP98008545 Whirlpool Screw
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (2)
8	Panel, Door
9	Glass, Inner
10	Handle, Oven Door
11	Actuator (2)
12	WP59002061 Whirlpool Microwave Screw
13	Side Trim, Door (2) (White Right)
13	Side Trim, Door (2) (White Left)
14	WP98008544 Whirlpool Screw Assembly
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP98010185 Whirlpool Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
