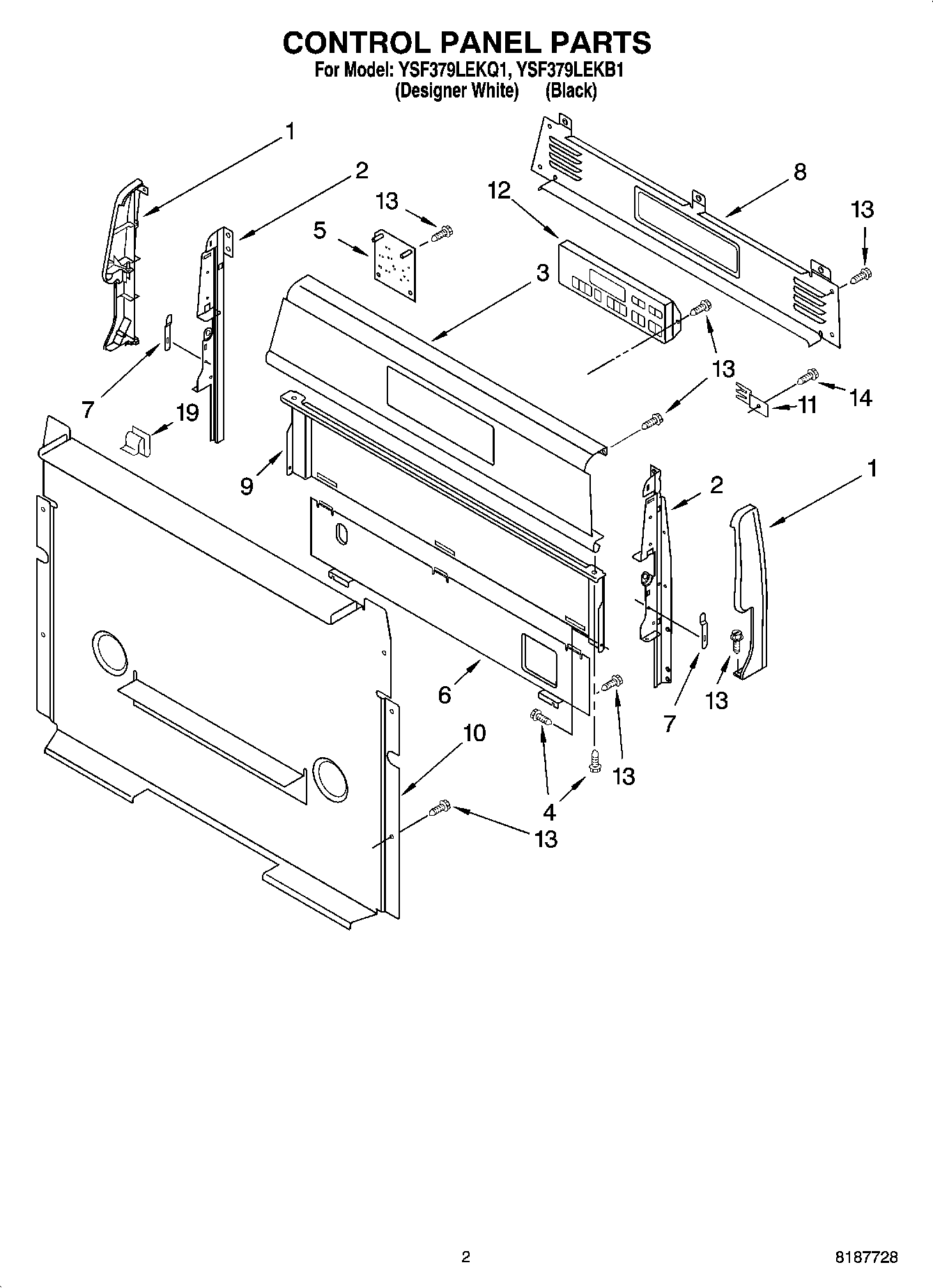

YSF379LEKQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Control (White)
3Panel, Control (Black)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
118523412 Whirlpool Mounting Bracket
12Control, Range (Black)
12Control, Range (White)
13SCREW
14WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
