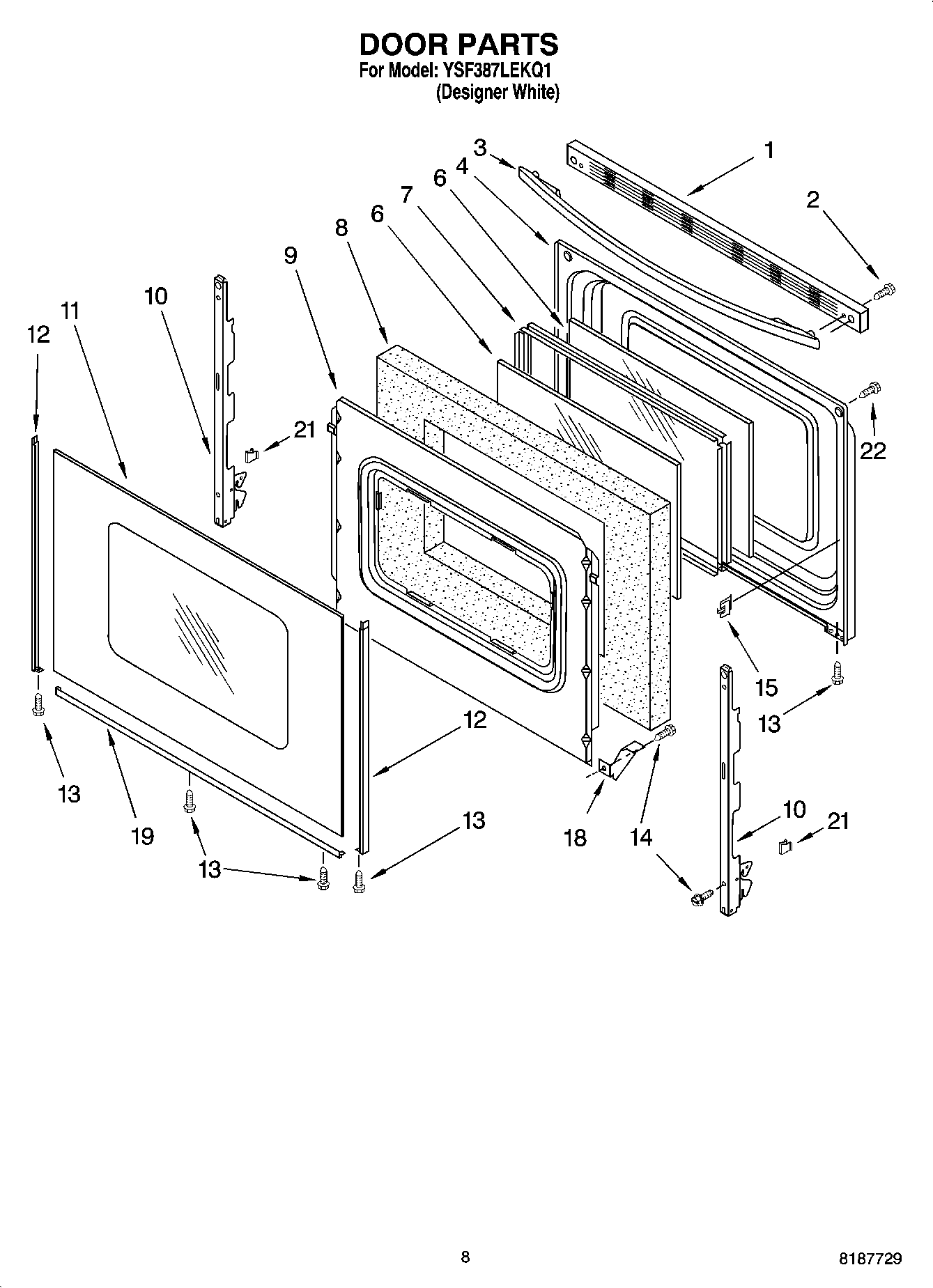

YSF387LEKQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

YSF387LEKQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

YSF387LEKQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI139437A
8212471 Whirlpool Oven Paint
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL ARI139436A
WPL ARI139435A
WPL ARI139434A
WPL ARI139433A
WPL ARI139432A
WPL ARI139431A
WPL 8523427
WPL 8524207
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
3196896 Whirlpool Clip
WPL ARI139438A
3400964 Whirlpool Oven Clip
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Almond (Uncut)
350942 Whirlpool Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
72017 Whirlpool Appliance Touch-Up Paint White
3196696 Whirlpool Clip
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
814381 Whirlpool Pin
285006 Whirlpool Spray
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP8053834 Whirlpool Door Glass
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP8523175 Whirlpool Door Trim Assembly
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
