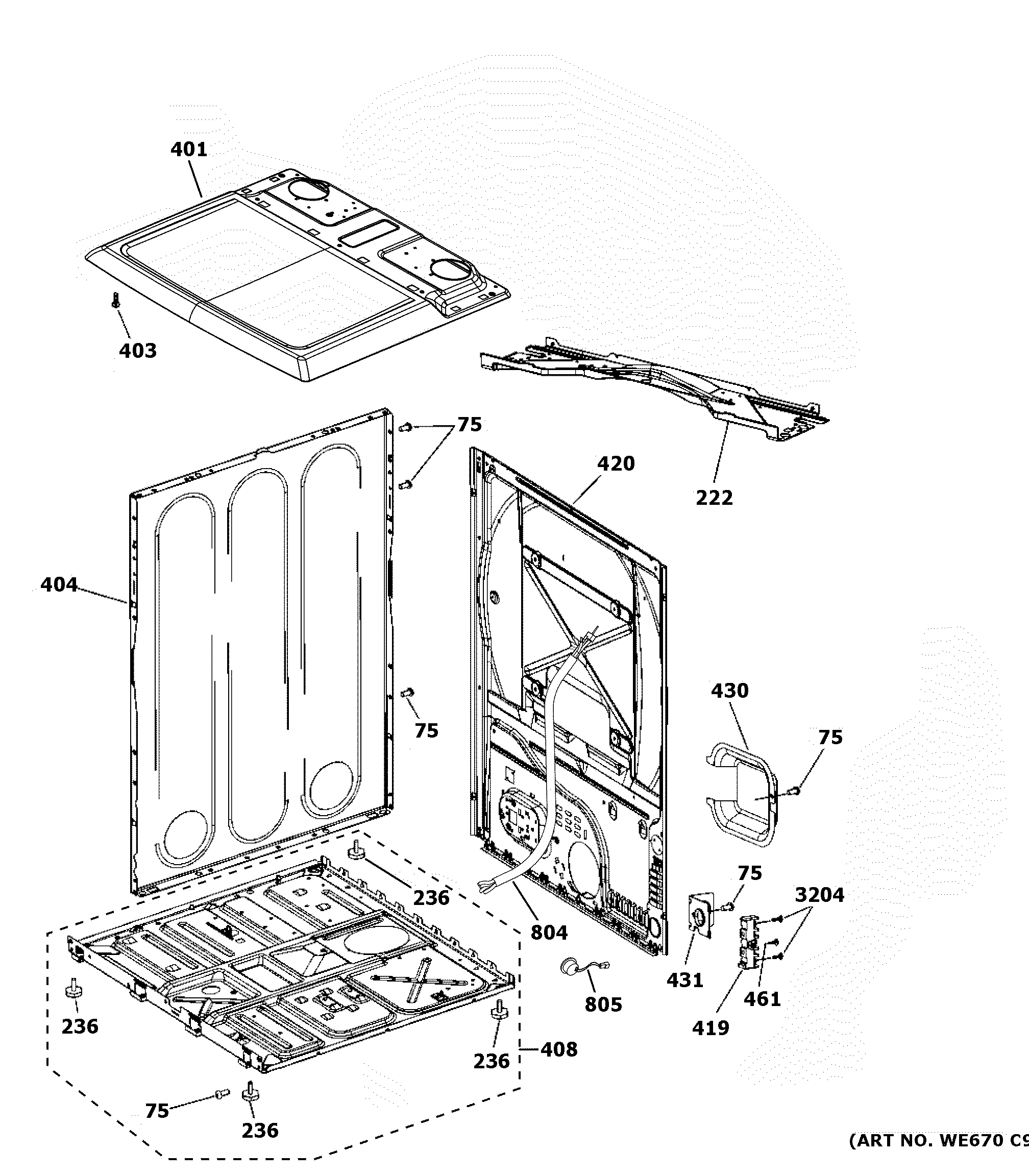

YTD74E2SN2WS CABINET & TOP PANEL

YTD74E2SN2WS CABINET & TOP PANEL

Written by

in

YTD74E2SN2WS CABINET & TOP PANEL

Products

PositionProduct
75WE01X25535 GE Screw
222WE03X23884 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
401WE03X23889 GE Top Cover High Depth
403WE01X25318 GE Screw
404WE20X23867 GE Side Panel
408WE04X25158 GE Appliance Chassis and Leg Assembly
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE10X29437 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
804MAIN HARNESS ELECTRIC TL DRYER
805WE15X26137 GE High Limit Harness Assembly
3204WZ4X241D GE Screw Package
