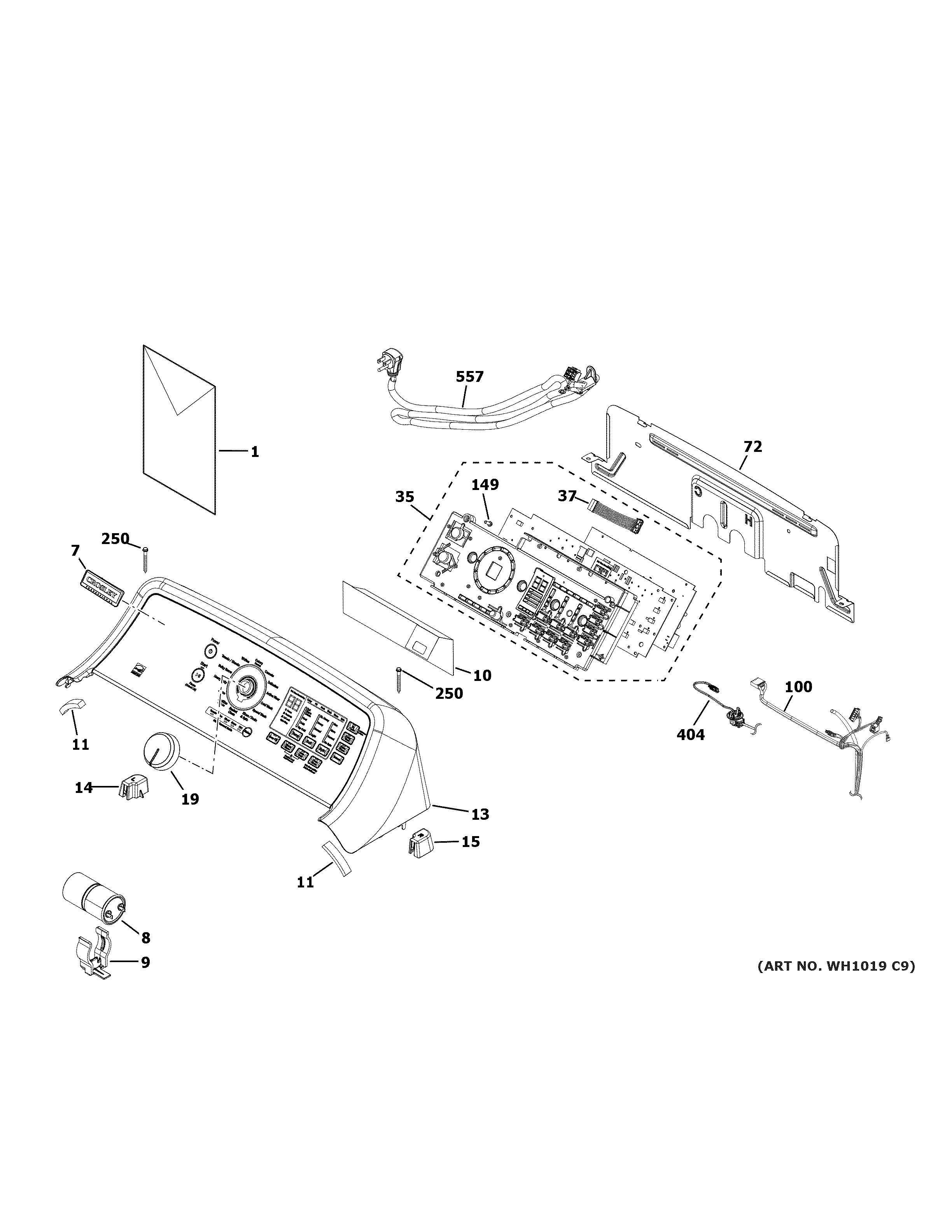

YTW4514PN0DG CONTROLS & BACKSPLASH

YTW4514PN0DG CONTROLS & BACKSPLASH

Written by

in

YTW4514PN0DG CONTROLS & BACKSPLASH

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM OWNERS AND INSTALL
7CROSLEY BADGE
8WH12X27614 GE Capacitor Bracket Kit
10COVER HOUSING
11WH01X28941 GE Backsplash Foam Block
13CONTROL PANEL DIAMOND GRAY
14WH16X24095 GE Left Backsplash Support
15WH16X24096 GE Right Backsplash Support
19WE01X23886 GE Knob Assembly
35WH22X35757 GE Main User Interface Control Board
37WH19X24055 GE Jumper Harness
72WH10X28194 GE Rear Control Panel
100WH19X27496 GE Main Harness Orange
149WR01X10196 GE Refrigerator Screw 8-18 HID02
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
404WH19X24141 GE Washer Wire Harness Lid Lock
557WH08X28843 GE Power Cord
