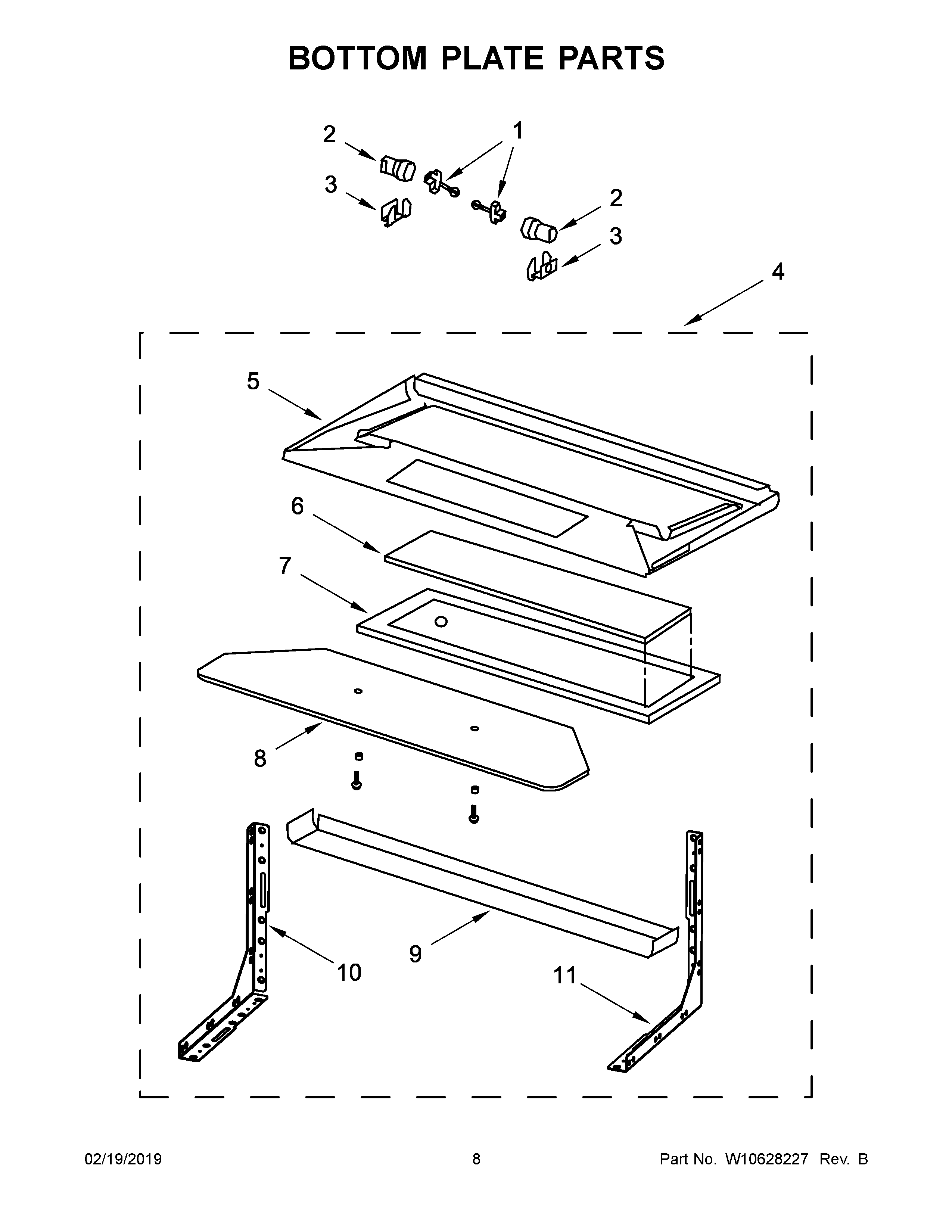

YUMV4084BS0 05 – BOTTOM PLATE PARTSadmin2025-04-26T11:12:02+00:00YUMV4084BS0 05 – BOTTOM PLATE PARTS
Products
| Position | Product |
|---|
| 1 | BULB, COOKTOP HALOGEN G9 25 WATT 120 VOLT |
| 2 | SOCKET, BULB |
| 3 | BRACKET, LAMP SOCKET |
| 4 | ASSEMBLY, BOTTOM PLATE WITH L-BRACKETS |
| 5 | FRAME, LOWER ASSEMBLY |
| 6 | W10610033 Whirlpool Filter |
| 7 | FILTER, GREASE |
| 8 | VISOR, GLASS |
| 9 | TRIM, REAR |
| 10 | L-BRACKET, LEFT |
| 11 | L-BRACKET, RIGHT |
