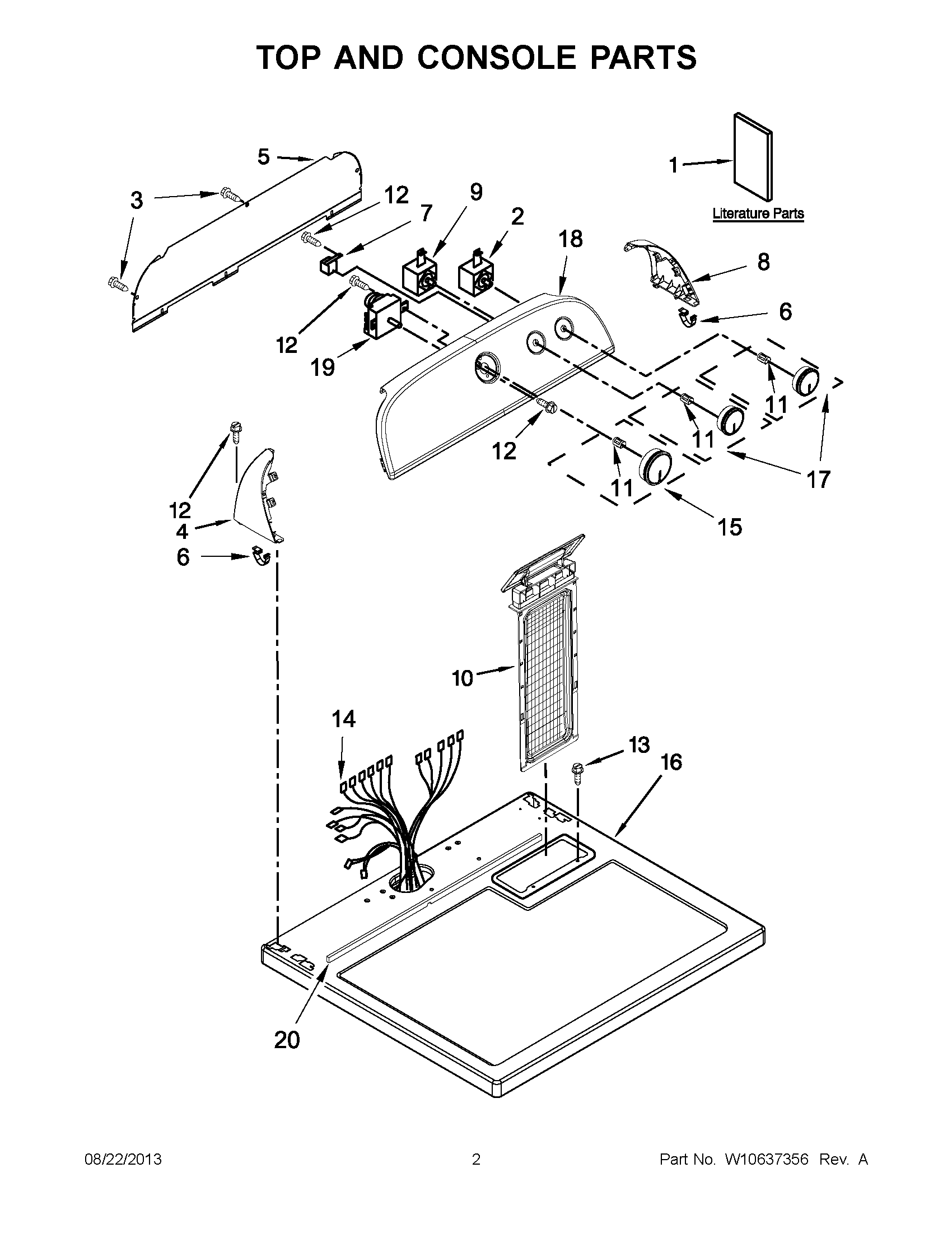

YWED4800BQ0 02 – TOP AND CONSOLE PARTS

YWED4800BQ0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED4800BQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1USE AND CARE GUIDE
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5W10556829 Whirlpool Rear Panel
6WP8312709 Whirlpool Endcap Clip
7WP694419 Whirlpool Buzzer Adjuster
8WPW10520780 Whirlpool Panel
9WP3399640 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14HARNESS, MAIN
15W10756270 Whirlpool Dryer Timer Knob
16WP8563663 Whirlpool Top Assembly
18WPW10557237 Whirlpool Control Panel
19WP3979617 Whirlpool Timer
20W10316616 Whirlpool Seal
