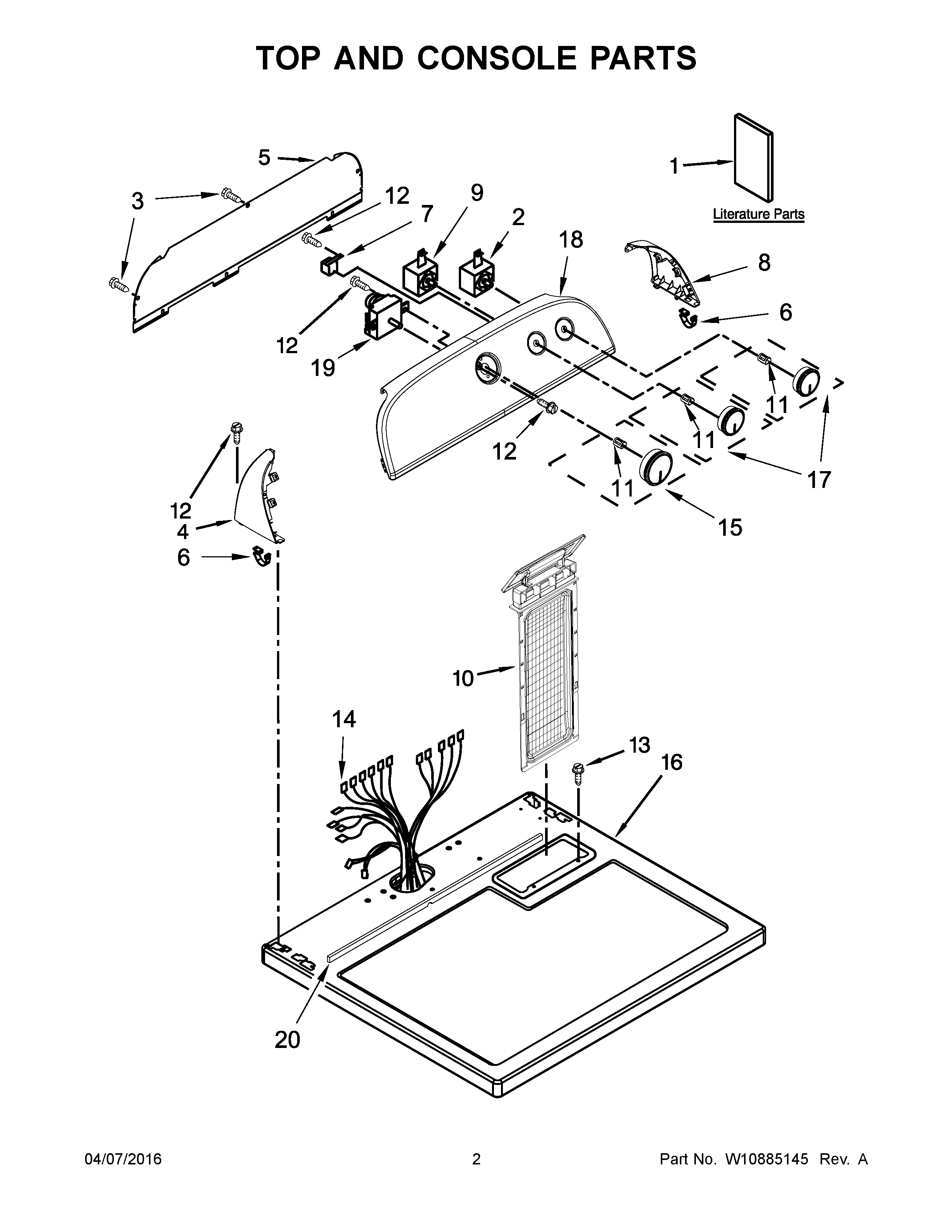

YWED4815EW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1CENERGY GUIDE
1USE AND CARE GUIDE
1AINSTALLATION INSTRUCTIONS
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5W10556829 Whirlpool Rear Panel
6WP8312709 Whirlpool Endcap Clip
7WP694419 Whirlpool Buzzer Adjuster
8WPW10520780 Whirlpool Panel
9W11050715 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14HARNESS, WIRING
15W11501455 Whirlpool Knob Assembly
16WP8563663 Whirlpool Top Assembly
17W11176265 Whirlpool Knob
18W10860906 Whirlpool Control Panel
19WPW10185982 Whirlpool Timer
20W10316616 Whirlpool Seal
