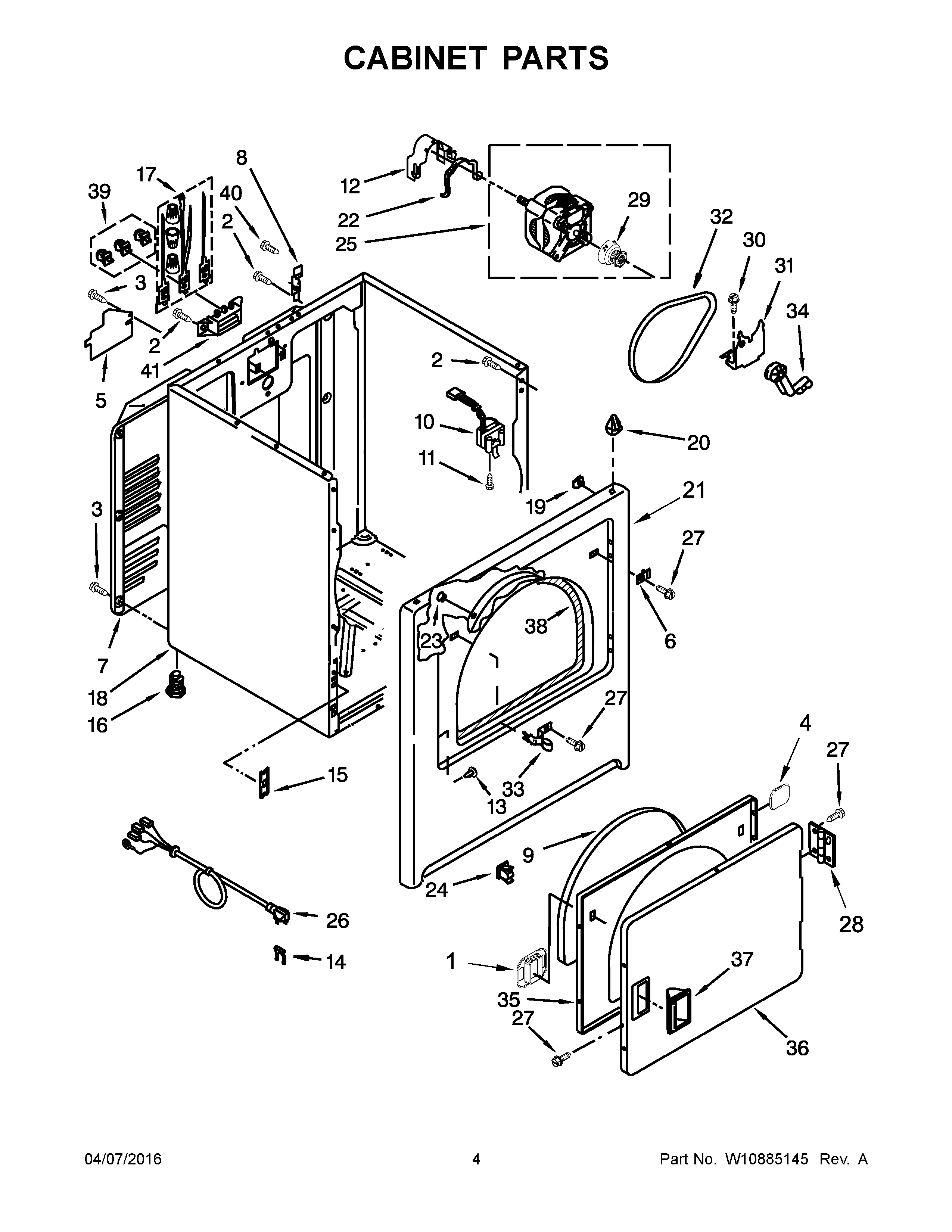

YWED4815EW1 03 – CABINET PARTS

YWED4815EW1 03 – CABINET PARTS

Written by

in

YWED4815EW1 03 – CABINET PARTS

Products

PositionProduct
1WPW10529197 Whirlpool Catch Assembly
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4W11173656 Whirlpool Cover
5W11298298 Whirlpool Cover
6W11684591 Whirlpool Dryer Plug
7280043 Whirlpool Rear Panel
8WP8066217 Whirlpool Hinge
9SEAL-DOOR DRYER
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP3404162 Whirlpool Clamp
13WP3404413 Whirlpool Plug
14W11712577 Whirlpool Clip
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16FEET-LVLNG (SET OF 4)
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21W10806345 Whirlpool Panel
22CLAMP
23279220 Whirlpool Clip
24W11429587 Whirlpool Catch Assembly
25279827 Whirlpool Dryer Drive Motor
26W11710615 Whirlpool Cord-Power
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29WP8066184 Whirlpool Dryer Motor Pulley
303400500 Whirlpool Screw
31WP348780 Whirlpool Base
32341241 Whirlpool Dryer Drum Belt
33W11429589 Whirlpool Strike
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35WPW10463967 Whirlpool Door Assembly
36W10861224 Whirlpool Door
37W10861225 Whirlpool Dryer White Door Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40SCREW
41WP3397659 Whirlpool Terminal Block
