YWED4850HW0 02 – TOP AND CONSOLE PARTS

YWED4850HW0 02 – TOP AND CONSOLE PARTS

Written by

in

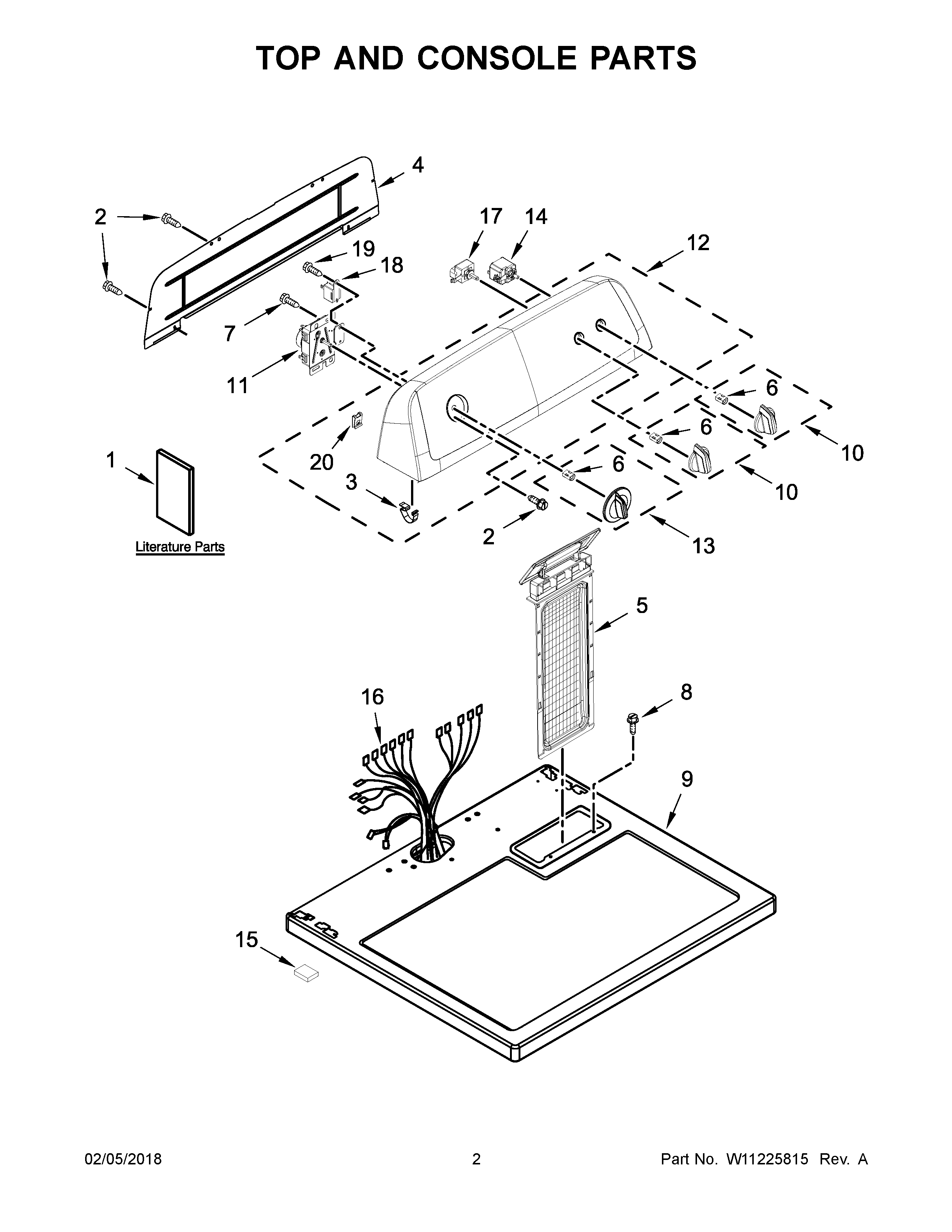

YWED4850HW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1CENERGY GUIDE
1BWIRING DIAGRAM
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WPW10416486 Whirlpool Rear Panel
5WPW10717210 Whirlpool Dryer Lint Screen Filter
6WP8536939 Whirlpool Spring Clip
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10W11216550 Whirlpool Knob Assembly
11WPW10436303 Whirlpool Dryer Timer
12W11216548 Whirlpool Console Assembly
13W11216549 Whirlpool Knob
14WPW10446920 Whirlpool Switch Start
153389682 Whirlpool Spacer
16HARNESS, WIRING
17W11661755 Whirlpool Switch
18WP694419 Whirlpool Buzzer Adjuster
19WP90767 Whirlpool Screw
20W11213336 Whirlpool Nut
