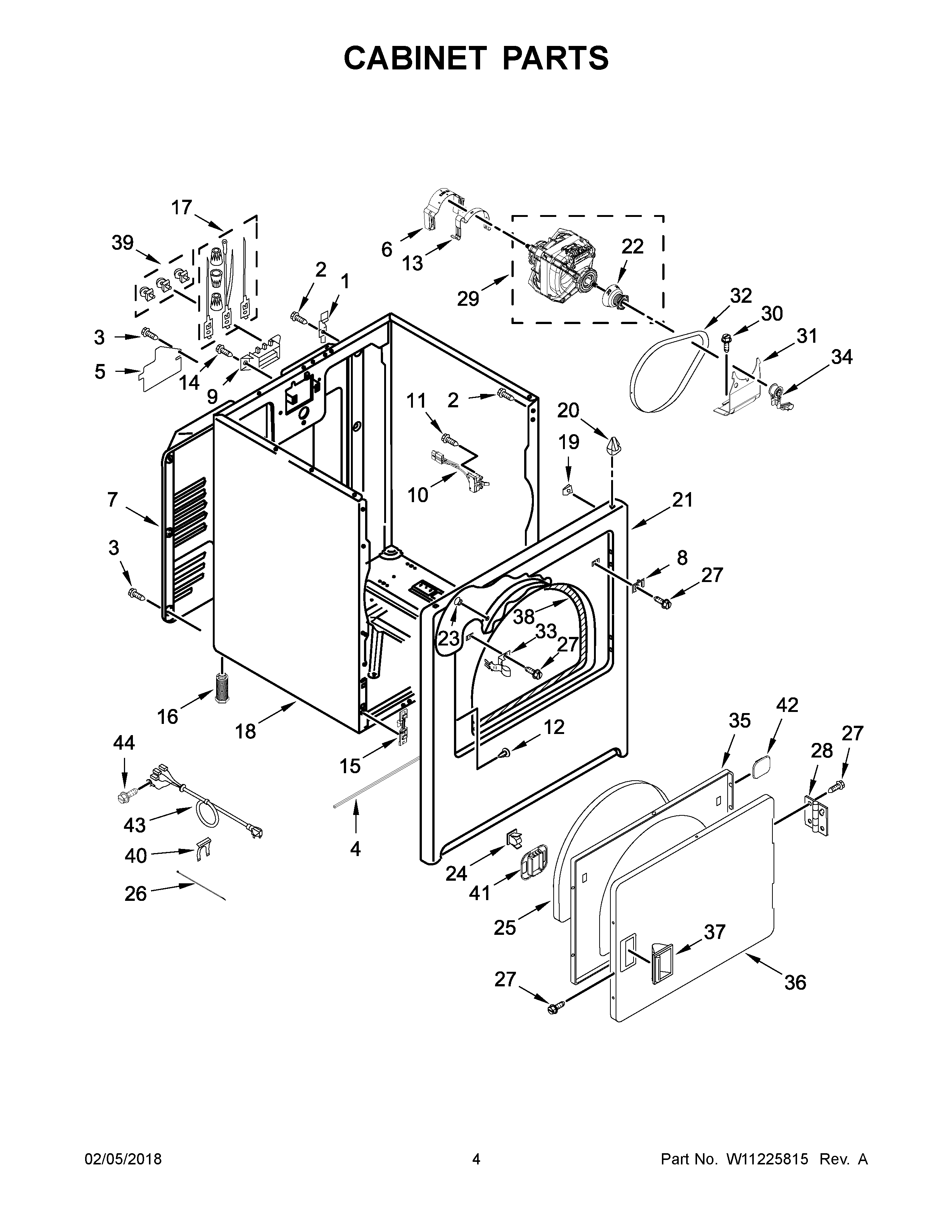

YWED4850HW0 03 – CABINET PARTS

Products

Position	Product
1	WP8066217 Whirlpool Hinge
2	SCREW
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11298298 Whirlpool Cover
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	W11684591 Whirlpool Dryer Plug
9	WP3397659 Whirlpool Terminal Block
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	CLAMP
14	WP3390631 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	FEET-LVLNG (SET OF 4)
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10806345 Whirlpool Panel
22	WP8066184 Whirlpool Dryer Motor Pulley
23	279220 Whirlpool Clip
24	W11429587 Whirlpool Catch Assembly
25	SEAL-DOOR DRYER
26	WPW10339879 Whirlpool Wire Tie
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	279827 Whirlpool Dryer Drive Motor
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	W11429589 Whirlpool Strike
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WPW10463967 Whirlpool Door Assembly
36	W10861224 Whirlpool Door
37	W10861225 Whirlpool Dryer White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	W11712577 Whirlpool Clip
41	WPW10529197 Whirlpool Catch Assembly
42	W11173656 Whirlpool Cover
43	W11710615 Whirlpool Cord-Power
44	W10850756 Whirlpool Screw
