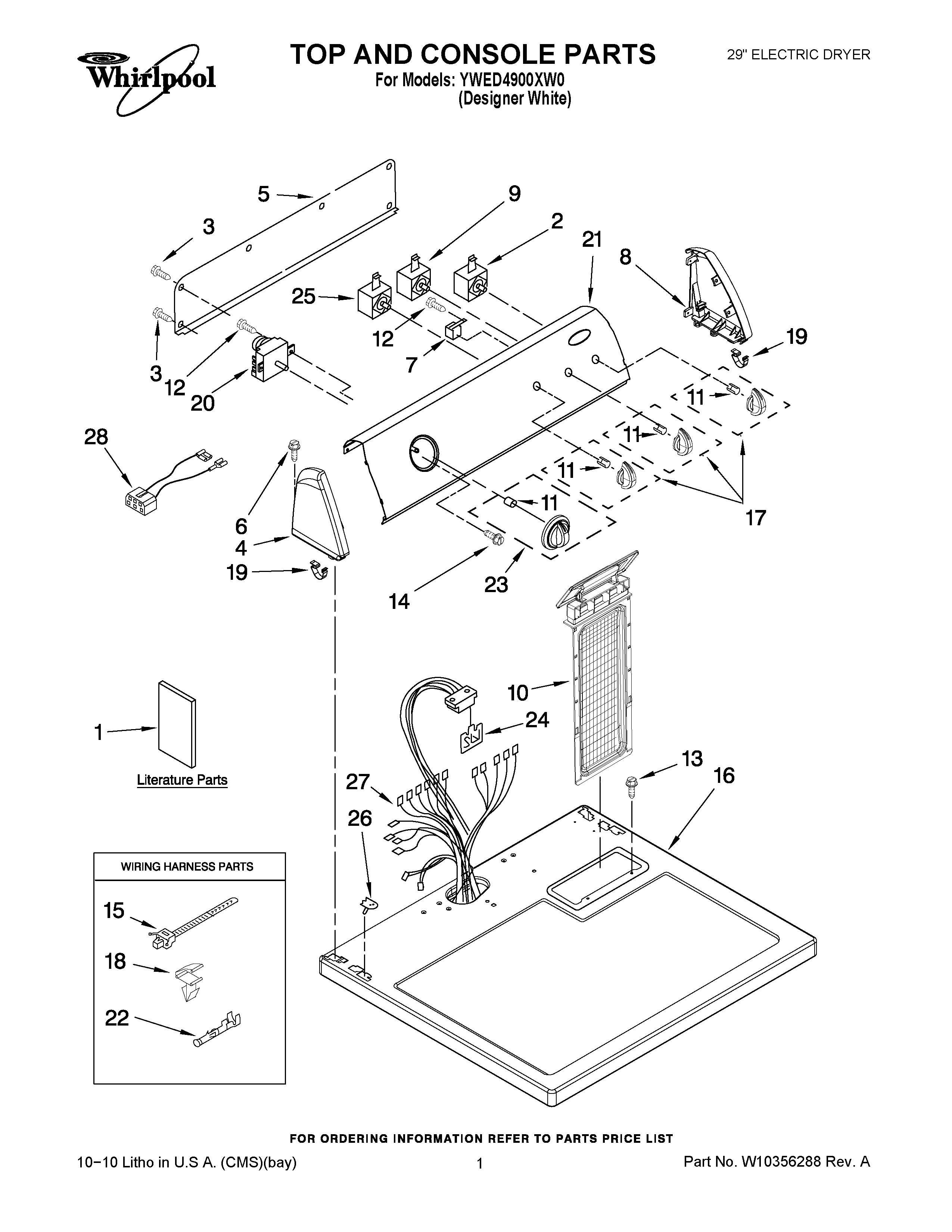

YWED4900XW0 01 – TOP AND CONSOLE PARTS

YWED4900XW0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED4900XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE AND CARE
1Wiring Diagram
1INSTRUCTIONS, INSTALLATION
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP3405156 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP3391018 Whirlpool Wire Tie
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WP3394427 Whirlpool Clip
19WP8312709 Whirlpool Endcap Clip
20TIMER
21WPW10295263 Whirlpool Control Panel
22WP94614 Whirlpool Terminal
23TIMER KNOB ASSEMBLY
24WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
25WP8578354 Whirlpool Temperature Switch
26WP357213 Whirlpool Hinge Stopper
27Harness, Wiring
28W10113080 Whirlpool Wire Harness
