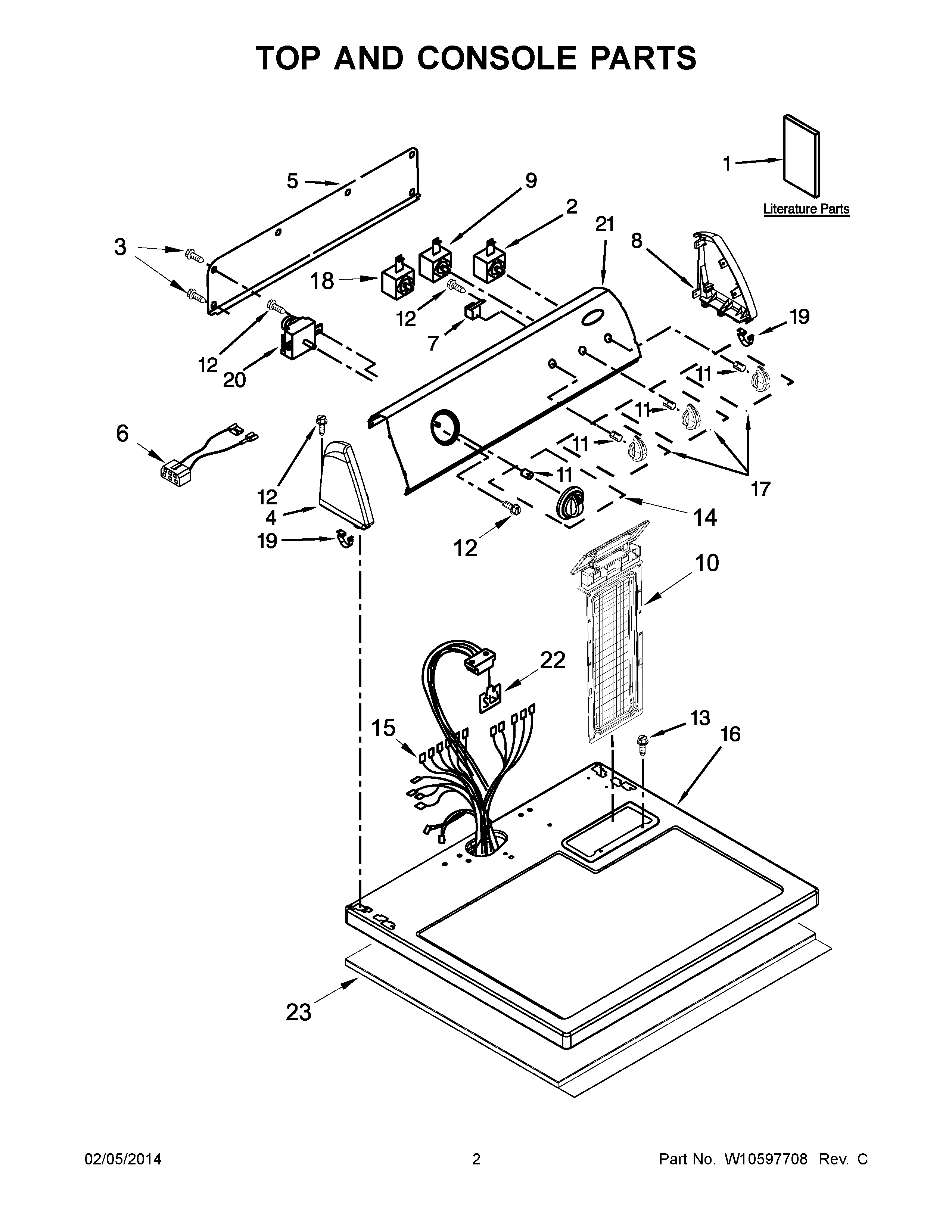

YWED4900XW2 02 – TOP AND CONSOLE PARTS

YWED4900XW2 02 – TOP AND CONSOLE PARTS

Written by

in

YWED4900XW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6W10113080 Whirlpool Wire Harness
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP3405156 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14TIMER KNOB ASSEMBLY
15Harness, Wiring
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WP8578354 Whirlpool Temperature Switch
19WP8312709 Whirlpool Endcap Clip
20TIMER
21WPW10295263 Whirlpool Control Panel
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23W10123956 Whirlpool Sound Absorber
