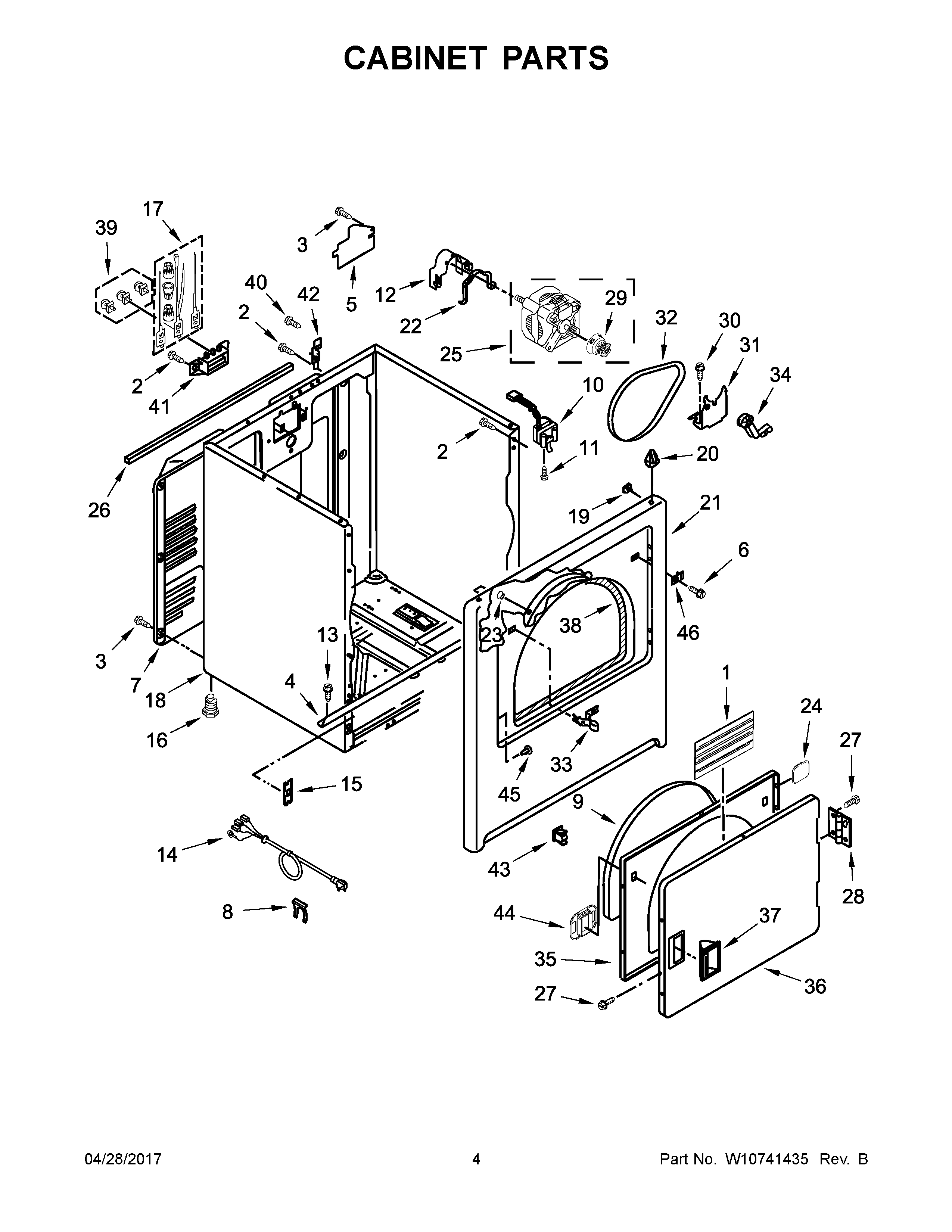

YWED49STBW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10636378 Whirlpool Pad
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11298298 Whirlpool Cover
6	W10850756 Whirlpool Screw
7	W10634729 Whirlpool Rear Panel
8	W11712577 Whirlpool Clip
9	SEAL-DOOR DRYER
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404162 Whirlpool Clamp
13	WP308685 Whirlpool Microwave Screw
14	CORD-POWER
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	FEET-LVLNG (SET OF 4)
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10806345 Whirlpool Panel
22	CLAMP
23	279220 Whirlpool Clip
24	W11173656 Whirlpool Cover
25	279827 Whirlpool Dryer Drive Motor
26	W10685675 Whirlpool Seal
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP8066184 Whirlpool Dryer Motor Pulley
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	W11429589 Whirlpool Strike
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WPW10463967 Whirlpool Door Assembly
36	W10861227 Whirlpool Door Assembly
37	WPW10549553 Whirlpool Dryer Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	SCREW
41	WP3397659 Whirlpool Terminal Block
42	WP8066217 Whirlpool Hinge
43	W11429587 Whirlpool Catch Assembly
44	WPW10529197 Whirlpool Catch Assembly
45	WP3404413 Whirlpool Plug
46	W11684591 Whirlpool Dryer Plug
