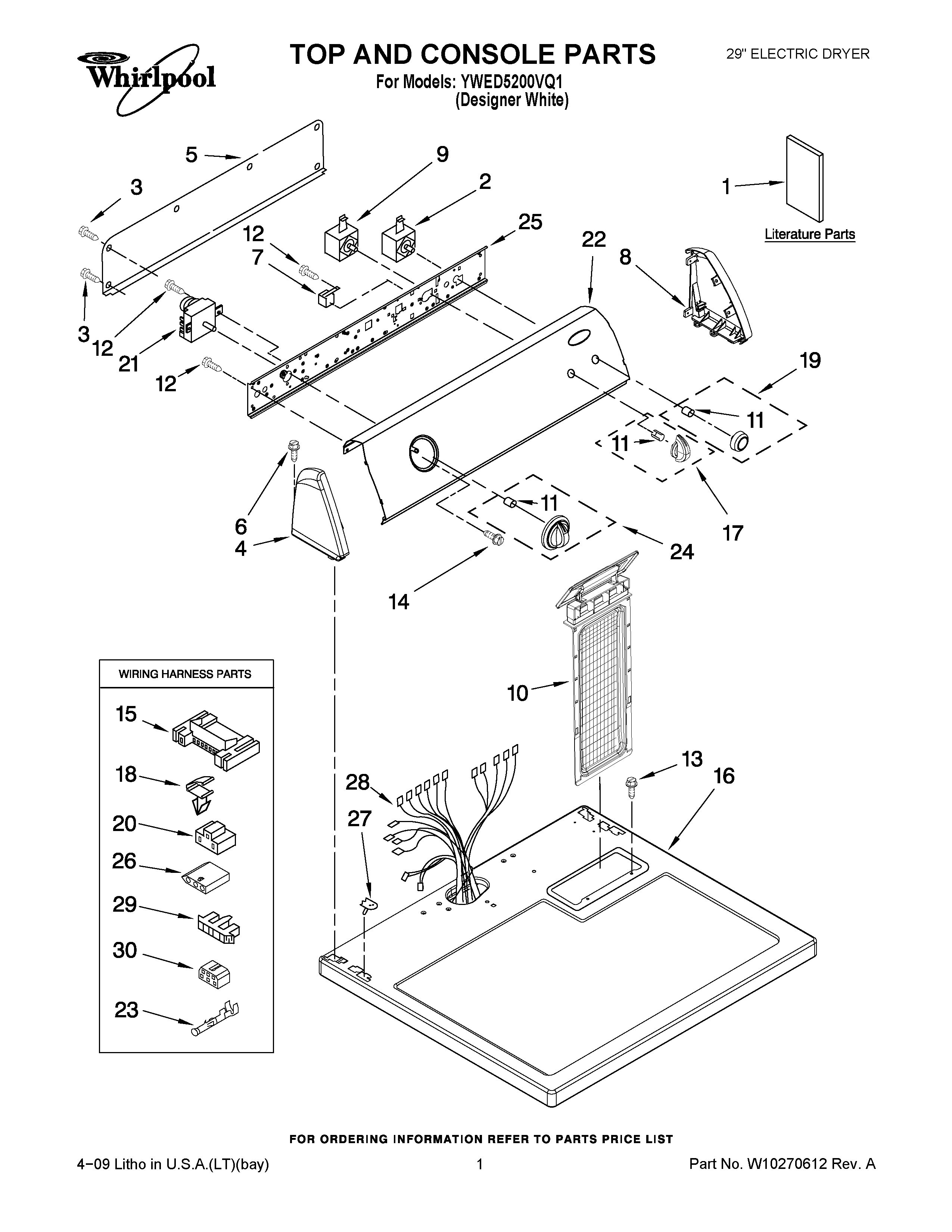

YWED5200VQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Use & Care Guide
1	WIRING DIAGRAM
1	Instructions, Installation
1	Sheet, Cycle Feature
2	WP3398095 Whirlpool Dryer Start Relay
3	WP693995 Whirlpool Screw
5	W10103406 Whirlpool Rear Panel
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	W10820038 Whirlpool Endcap
9	WP3399640 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	Knob, Control
18	WP3394427 Whirlpool Clip
19	WP8566073 Whirlpool Appliance Knob
20	3401144 Whirlpool Connector
21	WPW10185982 Whirlpool Timer
22	Panel, Control
23	WP94614 Whirlpool Terminal
24	WP8566061 Whirlpool Knob
25	Bracket, Control
26	3936144 Whirlpool Connector
27	WP357213 Whirlpool Hinge Stopper
28	HARNESS, WIRING
29	Connector, Timer
30	Block, Disconnect
