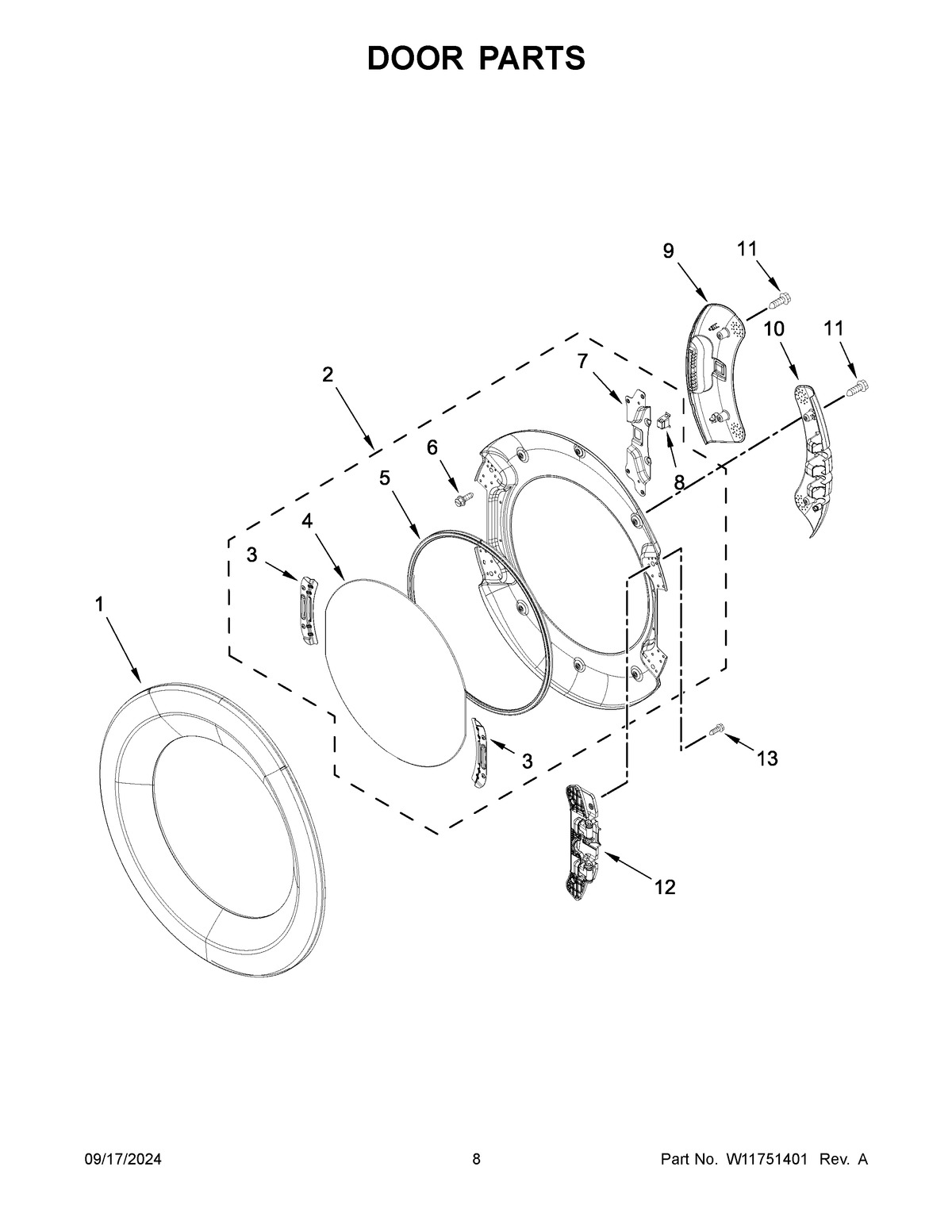

YWED5220RW0 05 – DOOR PARTS

YWED5220RW0 05 – DOOR PARTS

Written by

in

YWED5220RW0 05 – DOOR PARTS

Products

PositionProduct
1W11449081 Whirlpool Outer Door
2W11701947 Whirlpool Door Assembly
3W11310037 Whirlpool Retainer
4W11310036 Whirlpool Door Glass
5W11310035 Whirlpool Seal
6SCREW
7W11310039 Whirlpool Cover
8W11240283 Whirlpool Catch Assembly
9COVER
10COVER, HINGE
11SCREW
12W11318815 Whirlpool Hinge
138540479 Whirlpool Screw
