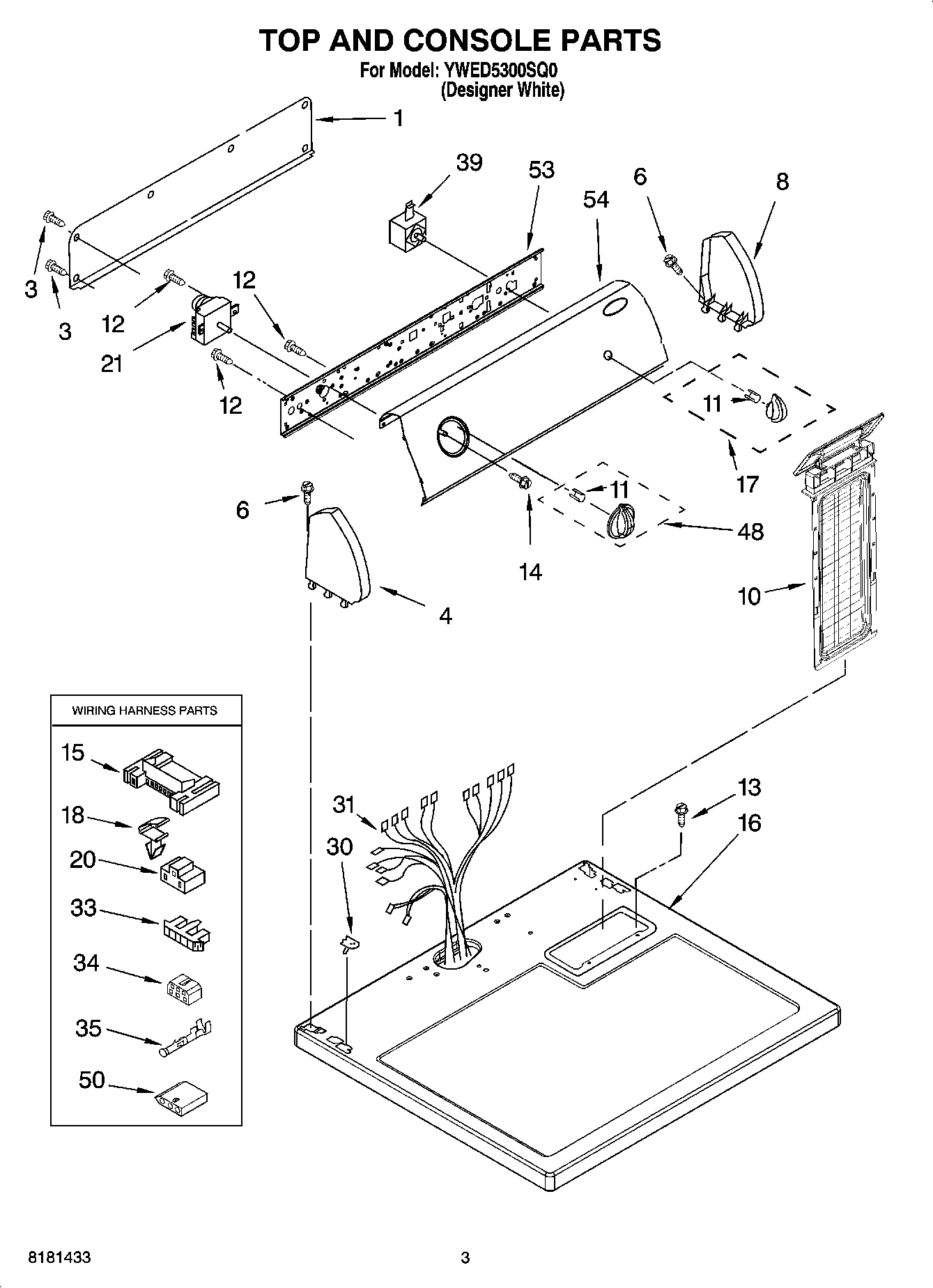

YWED5300SQ0 02 – TOP AND CONSOLE PARTS

YWED5300SQ0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED5300SQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
3WP693995 Whirlpool Screw
6WP388326 Whirlpool Screw
8W10820038 Whirlpool Endcap
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WP8566065 Whirlpool Knob
18WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21WP8299778 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3977456 Whirlpool Start Switch
48WP8566061 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control
