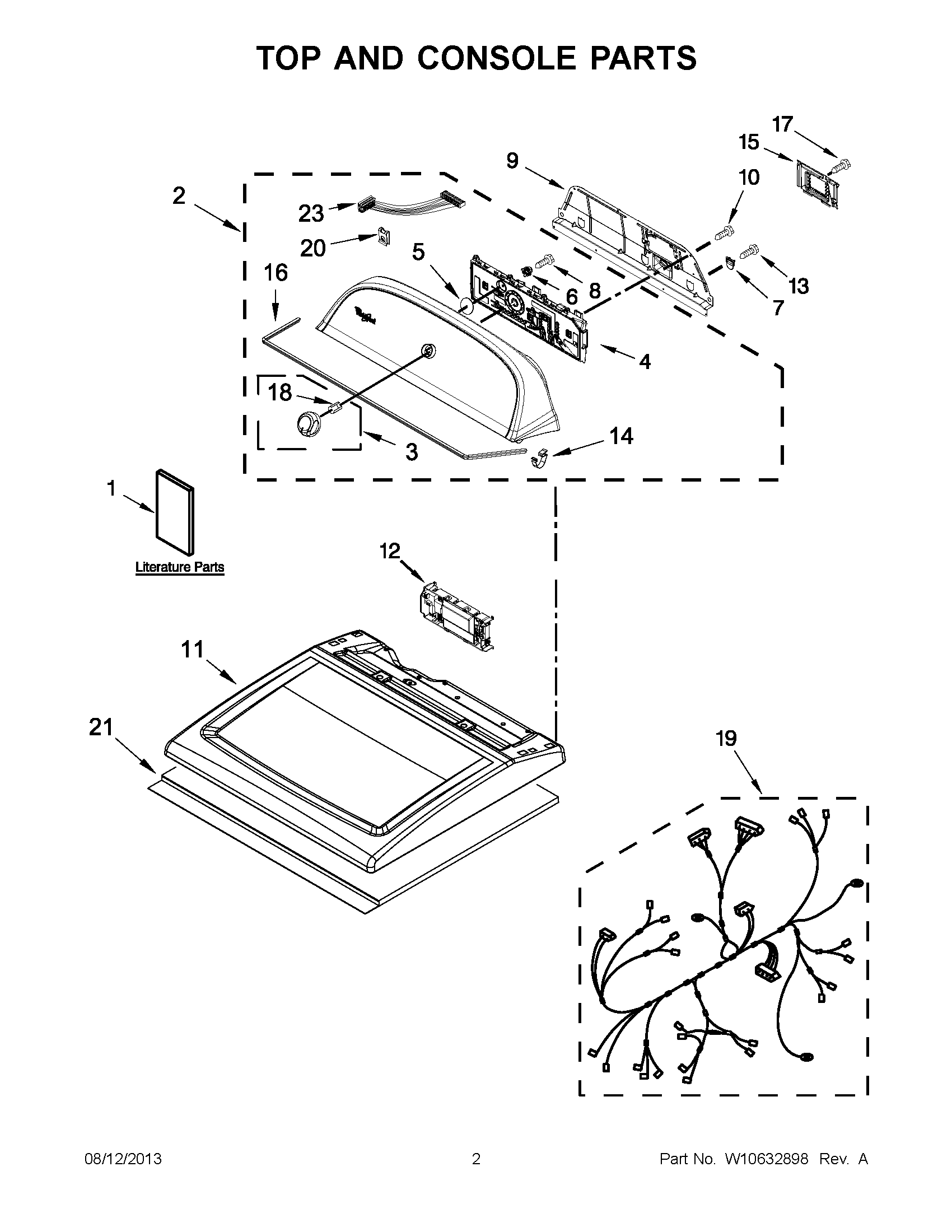

YWED5500BW0 01 – TOP AND CONSOLE PARTS

YWED5500BW0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED5500BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, ENERGY
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1GUIDE, USE AND CARE
1WIRING DIAGRAM
2WPW10562301 Whirlpool Console
3ASSEMBLY, CONTROL KNOB (WHITE)
4WPW10269623 Whirlpool Electronic Control Board + Core
5W10323092 Whirlpool Seal
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W10853898 Whirlpool Screw
9W10550615 Whirlpool Rear Panel
11TOP (WHITE)
12WPW10586877-includeCORE Whirlpool WPW10586877 Refrigerator Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10280079 Whirlpool Seal
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19HARNESS, ELECTRIC
20W11213336 Whirlpool Nut
21W10123956 Whirlpool Sound Absorber
22W10285495 Whirlpool Wire Harness
