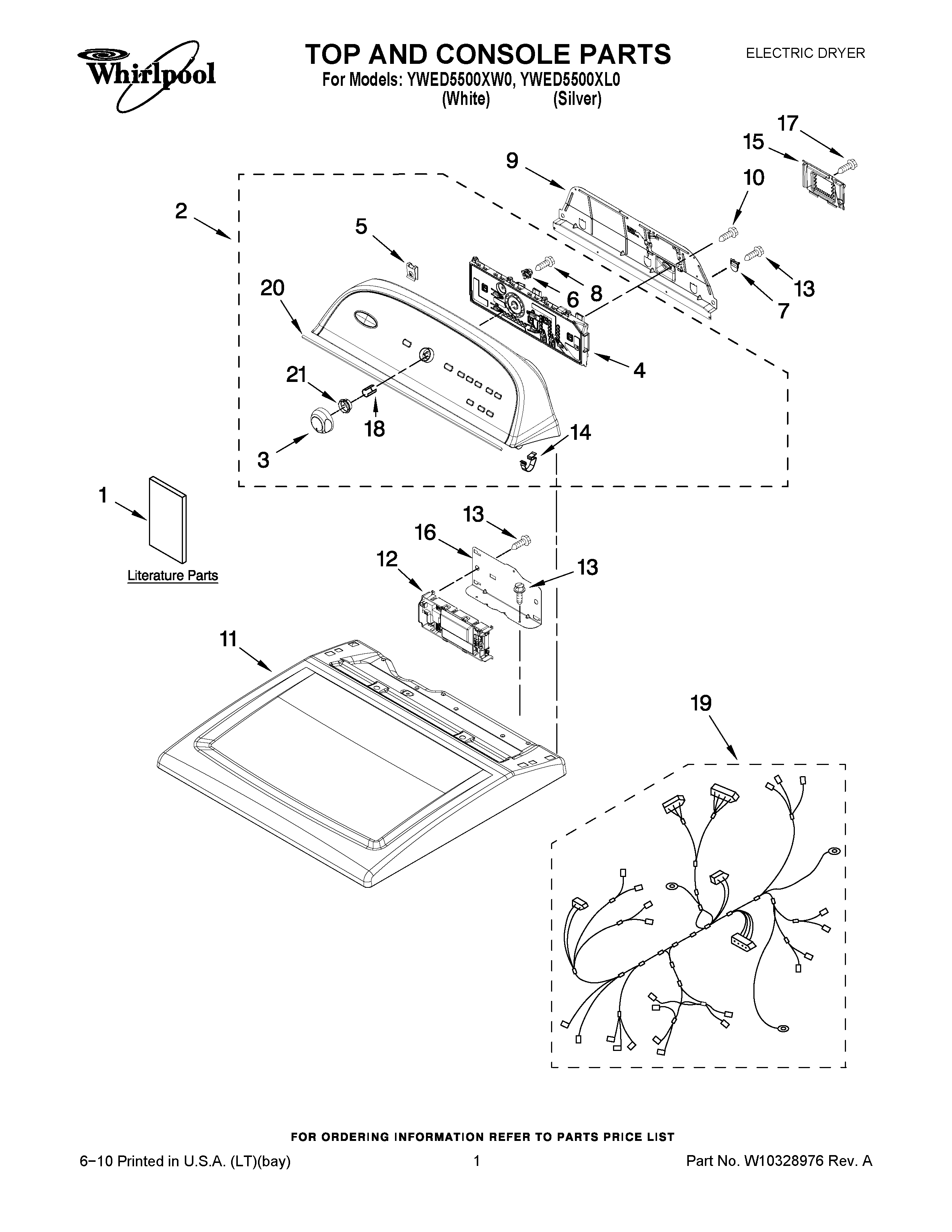

YWED5500XW0 01 – TOP AND CONSOLE PARTS

YWED5500XW0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED5500XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
2WPW10269607 Whirlpool Console Assembly
3WPW10251392 Whirlpool Knob
4WPW10269623 Whirlpool Electronic Control Board + Core
5W11213336 Whirlpool Nut
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W10853898 Whirlpool Screw
9W10096969 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11TOP (SILVER)
11TOP (WHITE)
12WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10271580 Whirlpool Mount
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19HARNESS, ELECTRIC
20W10280079 Whirlpool Seal
21W10325119 Whirlpool Spacer
