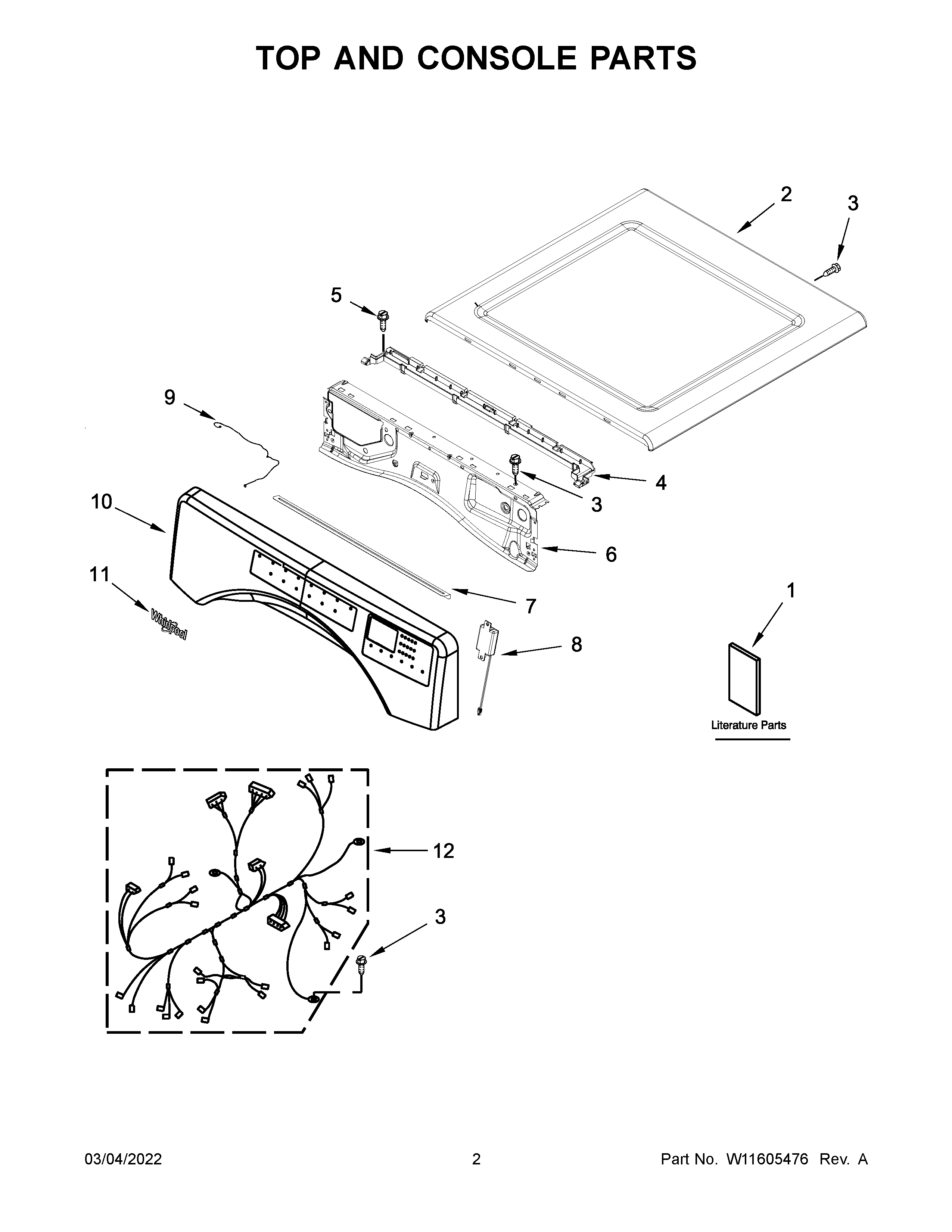

YWED5605MC0 02 – TOP AND CONSOLE PARTS

YWED5605MC0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED5605MC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICK START GUIDE
1OWNERS MANUAL
1ATECH SHEET
1BWIRING DIAGRAM
2WPW10460919 Whirlpool Top
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7SEAL
8W11123146 Whirlpool Speaker
9W11459337 Whirlpool Wire Harness
10W11583885-includeCORE Whirlpool W11583885 Refrigerator Electronic Control Board
11W11223753 Whirlpool Refrigerator Nameplate
12HARNESS, WIRING (MAIN)
