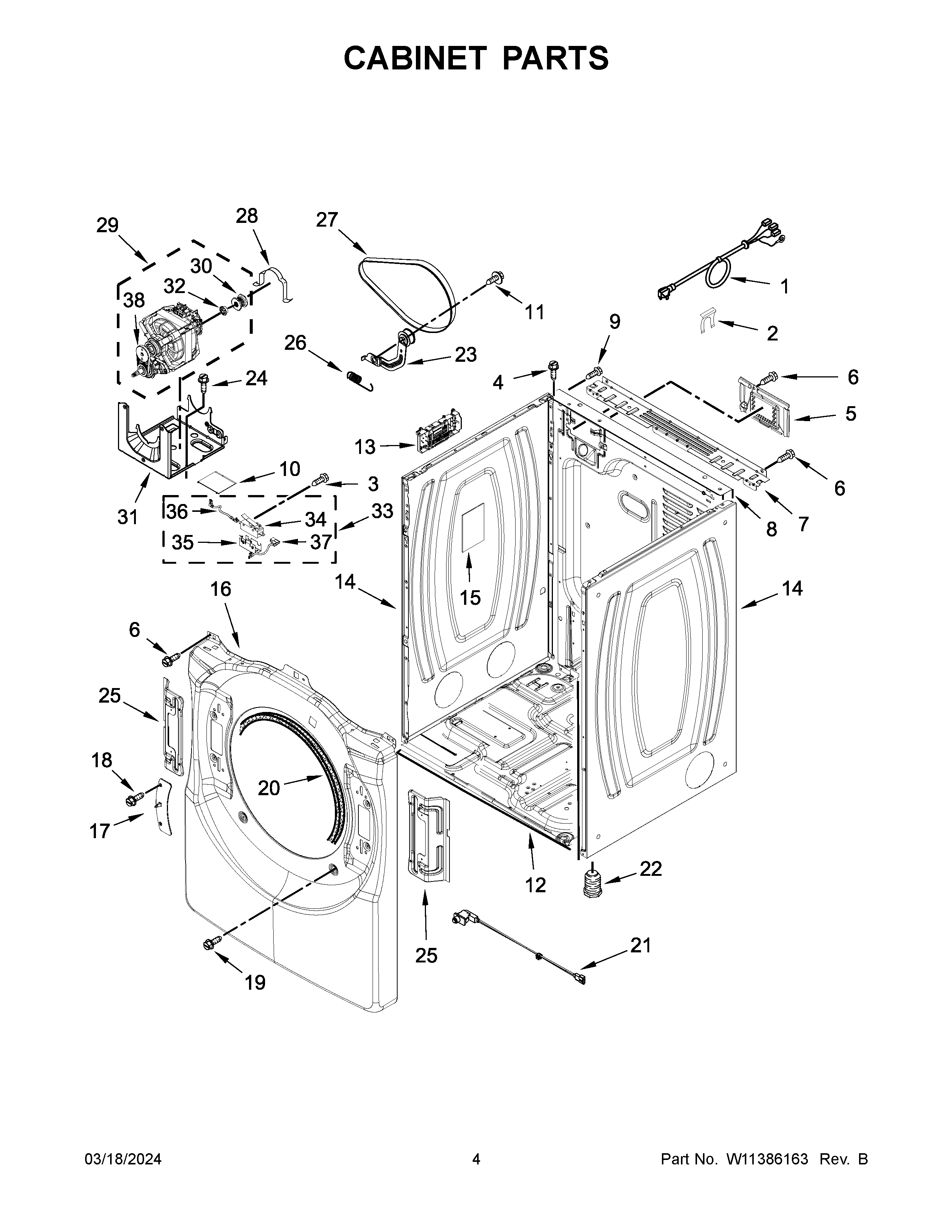

YWED560LHW1 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	W11710615 Whirlpool Cord-Power
2	W11712577 Whirlpool Clip
3	WP98129 Whirlpool Screw
4	WP489463 Whirlpool Refrigerator Screw
5	WPW10316167 Whirlpool Dishwasher Terminal Cover
6	WP488729 Whirlpool Refrigerator Door Screw
7	WPW10208382 Whirlpool Dryer Bracket
8	W10487431 Whirlpool Rear Panel
9	W10850756 Whirlpool Screw
10	W11113654 Whirlpool Pad
11	WP3389420 Whirlpool Screw
12	W11215531 Whirlpool Base
13	W11402102-includeCORE Whirlpool W11402102 Refrigerator Electronic Control Board + Core
14	W11233548 Whirlpool Panel
15	W11409002 Whirlpool Pad
16	W11310029 Whirlpool Panel
17	W11310031 Whirlpool Strike Assembly
18	SCREW
19	WP308685 Whirlpool Microwave Screw
20	WP3387242 Whirlpool Seal
21	W11427601 Whirlpool Door Switch
23	WPW10344192 Whirlpool Idler Pulley
24	SCREW
25	W11310030 Whirlpool Bracket Assembly
26	WPW10446781 Whirlpool Spring
27	661570V Whirlpool Dryer Drum Belt
28	CLAMP
29	W11234001 Whirlpool Drive Motor
30	WP8066184 Whirlpool Dryer Motor Pulley
31	W11676491 Whirlpool Base
32	WP3393657 Whirlpool Belt Retainer
34	WP8564010 Whirlpool Plug Switch
35	W11247665 Whirlpool Switch
36	W10167613 Whirlpool Wire
37	WIRE, MOTOR TO BELT SWITCH
38	WP3405160 Whirlpool Belt Assembly
