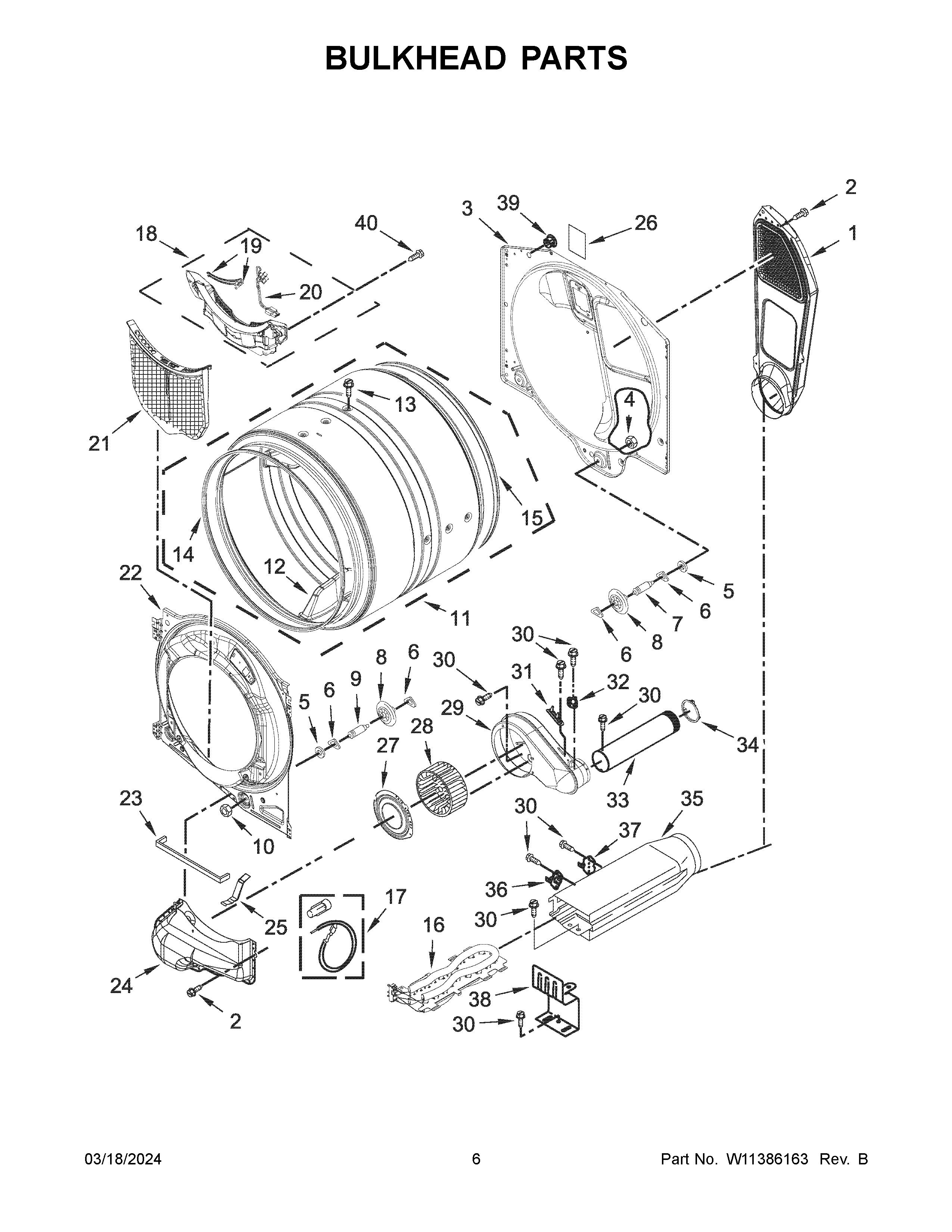

YWED560LHW1 04 – BULKHEAD PARTS

Products

Position	Product
1	W11677720 Whirlpool Air Duct
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11299300 Whirlpool Bulkhead Assembly
4	WPW10080190 Whirlpool Nut
5	W11236646 Whirlpool Washer Assembly
6	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
7	SHAFT
8	WPW10314173 Whirlpool Dryer Drum Support Wheel
9	SHAFT
10	WPW10080210 Whirlpool Nut
11	W10508188 Whirlpool Drum
12	W10416098 Whirlpool Baffle Assembly
13	W10853898 Whirlpool Screw
14	W11193479 Whirlpool Seal
15	280114 Whirlpool Dryer Drum Seal
16	WP3387747 Whirlpool Dryer Heating Element
17	279457 Whirlpool Dryer Heating Element Wide Spade Connection
18	HOUSNG-DRYER LINT
19	WP3387223 Whirlpool Electrode Assembly
20	WPW10298258 Whirlpool Wire Harness
21	SCREEN - LINT. ALPHA W/FELT
22	W11712678 Whirlpool Bulkhead Assembly
23	W11676493 Whirlpool Seal Assembly
24	WPW10211896 Whirlpool Duct Lint
25	W10414388 Whirlpool Clip
26	W11409002 Whirlpool Pad
27	W11688571 Whirlpool Collar
28	WHEEL
29	WPW10211911 Whirlpool Housing
30	WP693995 Whirlpool Screw
31	FUSE-THRML
32	WP8577274 Whirlpool Dryer Thermistor
33	WPW10342188 Whirlpool Exhaust Pipe
34	WPW10344699 Whirlpool Collar
35	W10802681 Whirlpool Box Assembly
36	WP8557403 Whirlpool Thermostat
37	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
38	8066099 Whirlpool Bracket
39	8529007 Whirlpool Plug
40	W11590579 Whirlpool Screw
