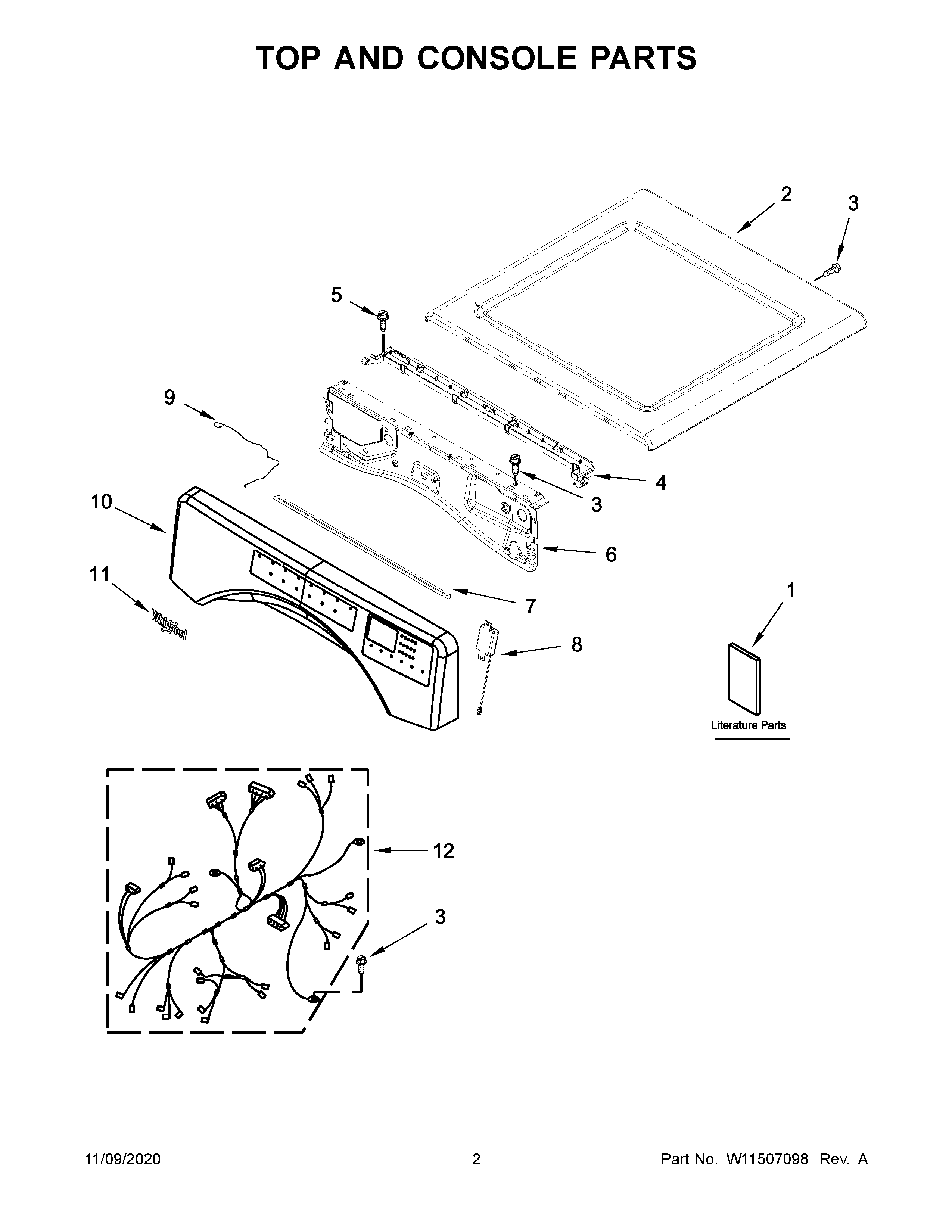

YWED5620HW2 02 – TOP AND CONSOLE PARTSadmin2025-04-26T11:11:21+00:00YWED5620HW2 02 – TOP AND CONSOLE PARTS ProductsPositionProduct1CQUICK START GUIDE1OWNERS MANUAL1ATECH SHEET1BWIRING DIAGRAM2WPW10208383 Whirlpool Top Panel3WP488729 Whirlpool Refrigerator Door Screw4W11310027 Whirlpool Bracket5W11686675 Whirlpool Screw6W11480682 Whirlpool Bracket7SEAL8W11123146 Whirlpool Speaker9W11459337 Whirlpool Wire Harness10W11378949 Whirlpool Control Board + Core11W11223753 Whirlpool Refrigerator Nameplate12HARNESS, WIRING (MAIN)
