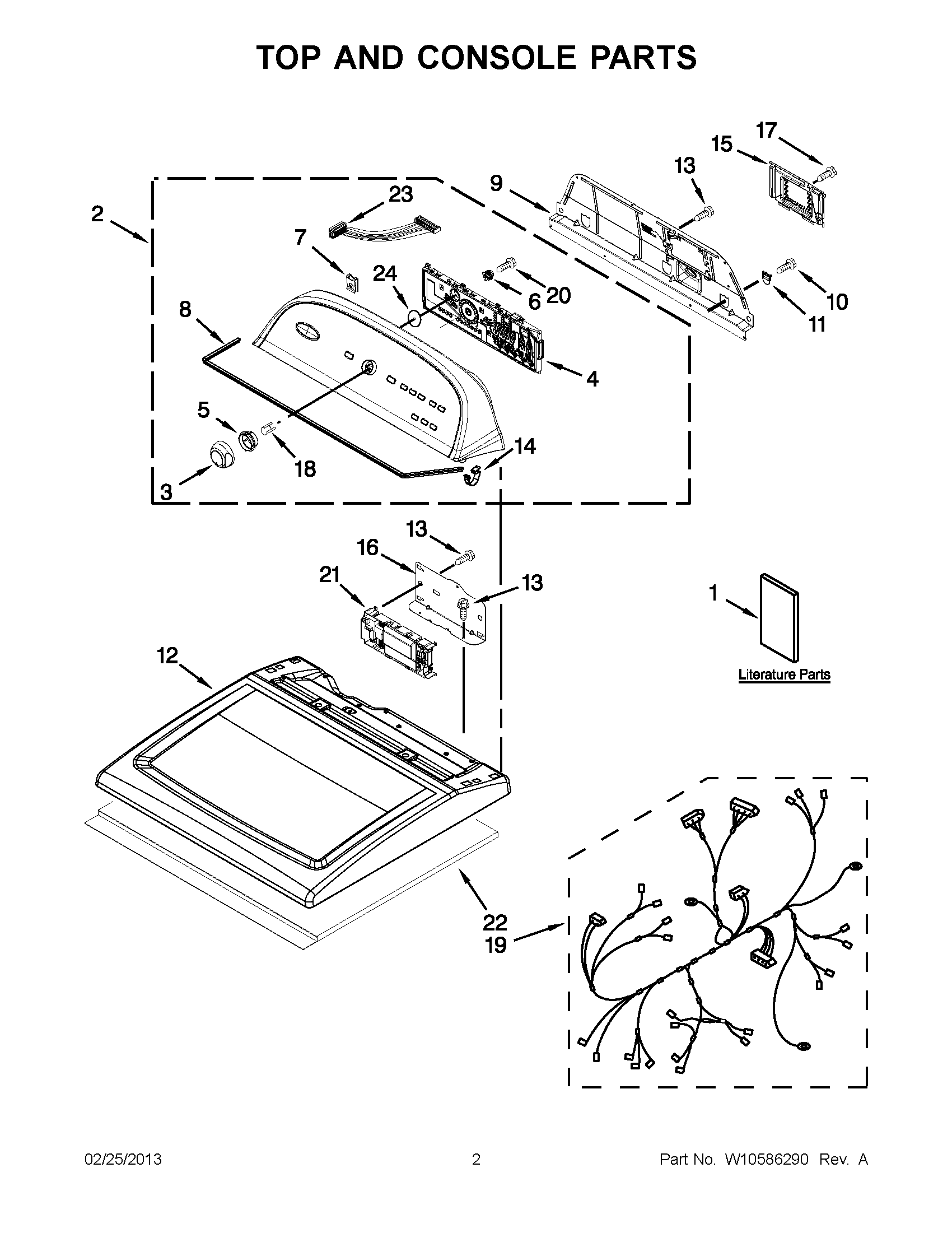

YWED5700AC1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	GUIDE, USE & CARE
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
2	W10458788 Whirlpool Console
3	WPW10251394 Whirlpool Knob
4	ASSEMBLY, USER INTERFACE
5	W10325119 Whirlpool Spacer
6	W10274524 Whirlpool Grommet
7	W11213336 Whirlpool Nut
8	W10280079 Whirlpool Seal
9	W10550615 Whirlpool Rear Panel
10	WP693995 Whirlpool Screw
11	W10279552 Whirlpool Plug
12	W11641122 Whirlpool Top
13	WP488729 Whirlpool Refrigerator Door Screw
14	WP8312709 Whirlpool Endcap Clip
15	WPW10119283 Whirlpool Terminal Cover
16	W10271580 Whirlpool Mount
17	WP90767 Whirlpool Screw
18	WP8536939 Whirlpool Spring Clip
19	HARNESS, MAIN
20	W10853898 Whirlpool Screw
21	WPW10214008-includeCORE Whirlpool WPW10214008 Washer Electronic Control Board + Core
22	W10123956 Whirlpool Sound Absorber
23	CABLE, USER INTERFACE
24	W10323092 Whirlpool Seal
