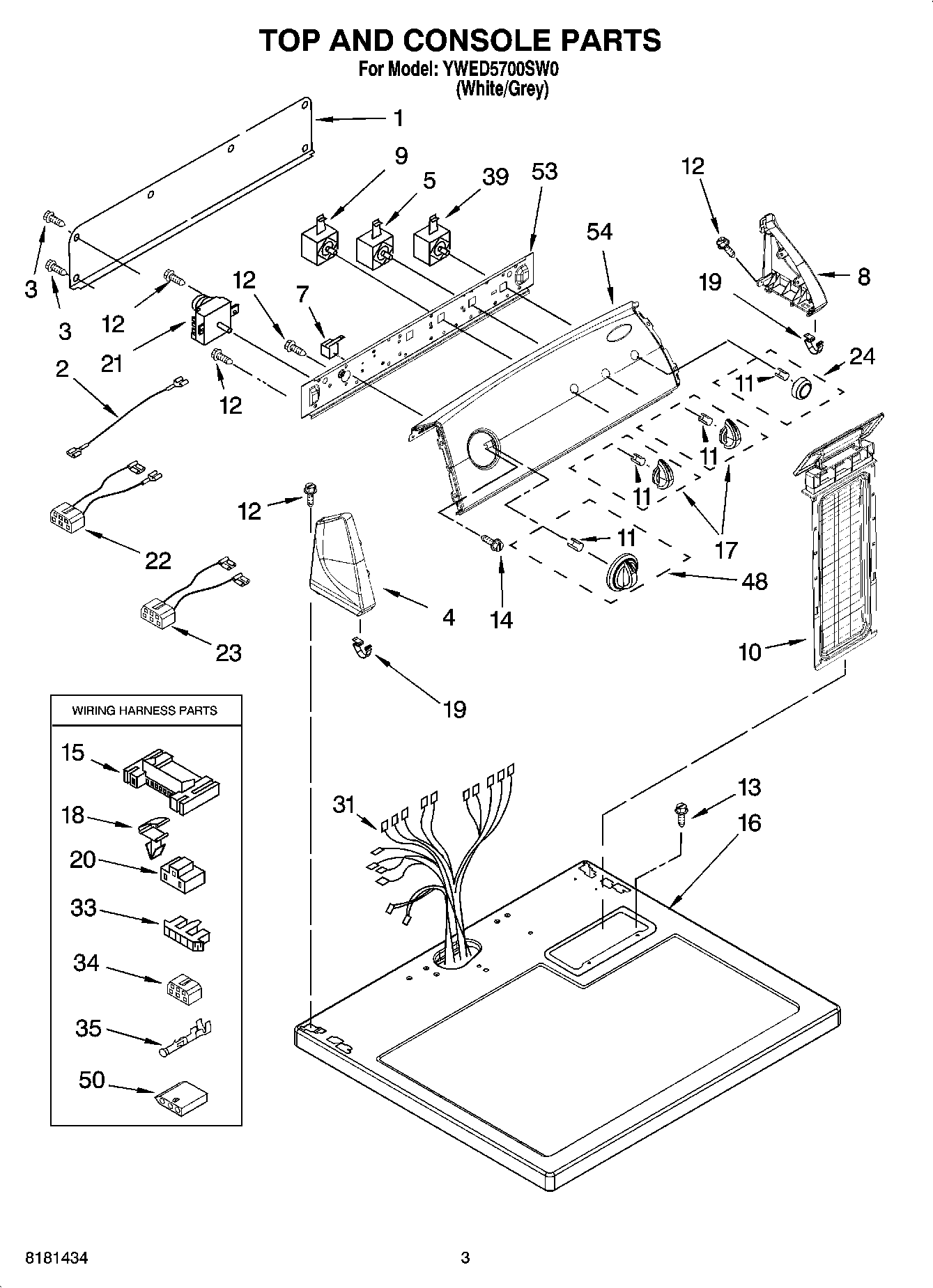

YWED5700SW0 02 – TOP AND CONSOLE PARTS

YWED5700SW0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED5700SW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WP3394427 Whirlpool Clip
19WP8312709 Whirlpool Endcap Clip
203401144 Whirlpool Connector
21WP3979618 Whirlpool Timer
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
24WPW10034790 Whirlpool Knob
31Harness, Wiring
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398095 Whirlpool Dryer Start Relay
48TIMER KNOB ASSEMBLY
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control
