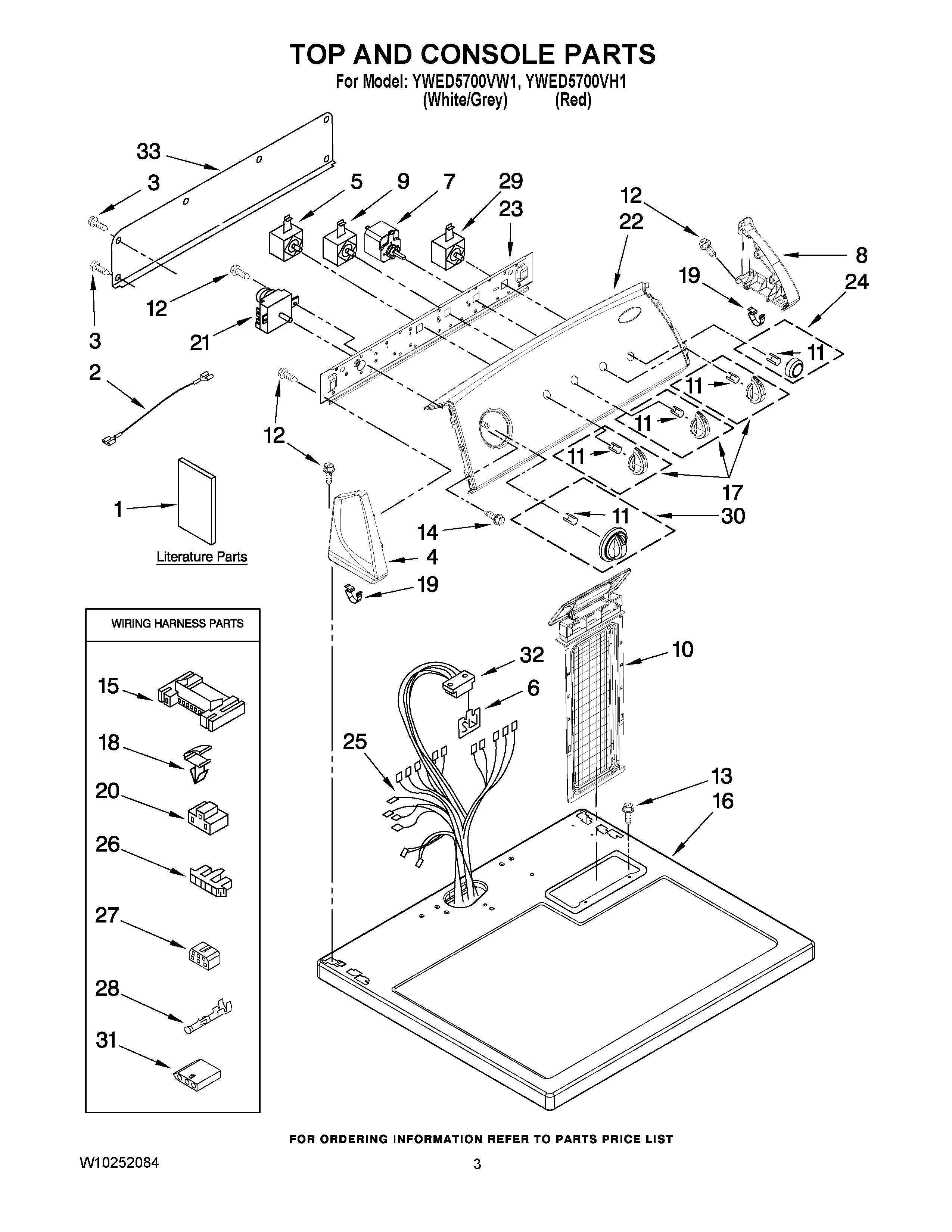

YWED5700VH1 02 – TOP AND CONSOLE PARTSadmin2025-04-26T11:11:32+00:00YWED5700VH1 02 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | WIRING DIAGRAM |
| 1 | Sheet, Cycle Feature |
| 1 | Instructions, Installation |
| 1 | Use & Care Guide |
| 2 | Wire, Jumper (Tan) |
| 3 | WP693995 Whirlpool Screw |
| 4 | Cap, End (L.H.) (Includes Item 19) (Red) |
| 4 | WP8565957 Whirlpool Endcap Assembly |
| 5 | 8528330 Whirlpool Temperature Control Switch |
| 6 | WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core |
| 7 | WP3398093 Whirlpool Buzzer Adjuster |
| 8 | Cap, End (R.H.) (Includes Item 19) (Red) |
| 8 | WP8565954 Whirlpool Endcap |
| 9 | 3405154 Whirlpool Primary Switch |
| 10 | Screen, Lint (Red) |
| 10 | WPW10717210 Whirlpool Dryer Lint Screen Filter |
| 11 | WP8536939 Whirlpool Spring Clip |
| 12 | WP90767 Whirlpool Screw |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | 3400859 Whirlpool Screw |
| 15 | 3395683 Whirlpool Connector |
| 16 | Top (Red) |
| 16 | WP8563663 Whirlpool Top Assembly |
| 17 | Knob, Control (3) |
| 18 | WP3394427 Whirlpool Clip |
| 19 | WP8312709 Whirlpool Endcap Clip |
| 20 | 3401144 Whirlpool Connector |
| 21 | Timer, 60 Hz. |
| 22 | Panel, Control |
| 23 | 8566052 Whirlpool Bracket |
| 24 | W10034770 Whirlpool Knob Assembly |
| 25 | HARNESS, WIRING |
| 26 | Connector, Timer |
| 27 | Block, Disconnect |
| 28 | WP94614 Whirlpool Terminal |
| 29 | WP3398094 Whirlpool Push To Start Switch |
| 30 | TIMER KNOB ASSEMBLY |
| 31 | 3936144 Whirlpool Connector |
| 32 | 3391885 Whirlpool Connector |
| 33 | W10103406 Whirlpool Rear Panel |
