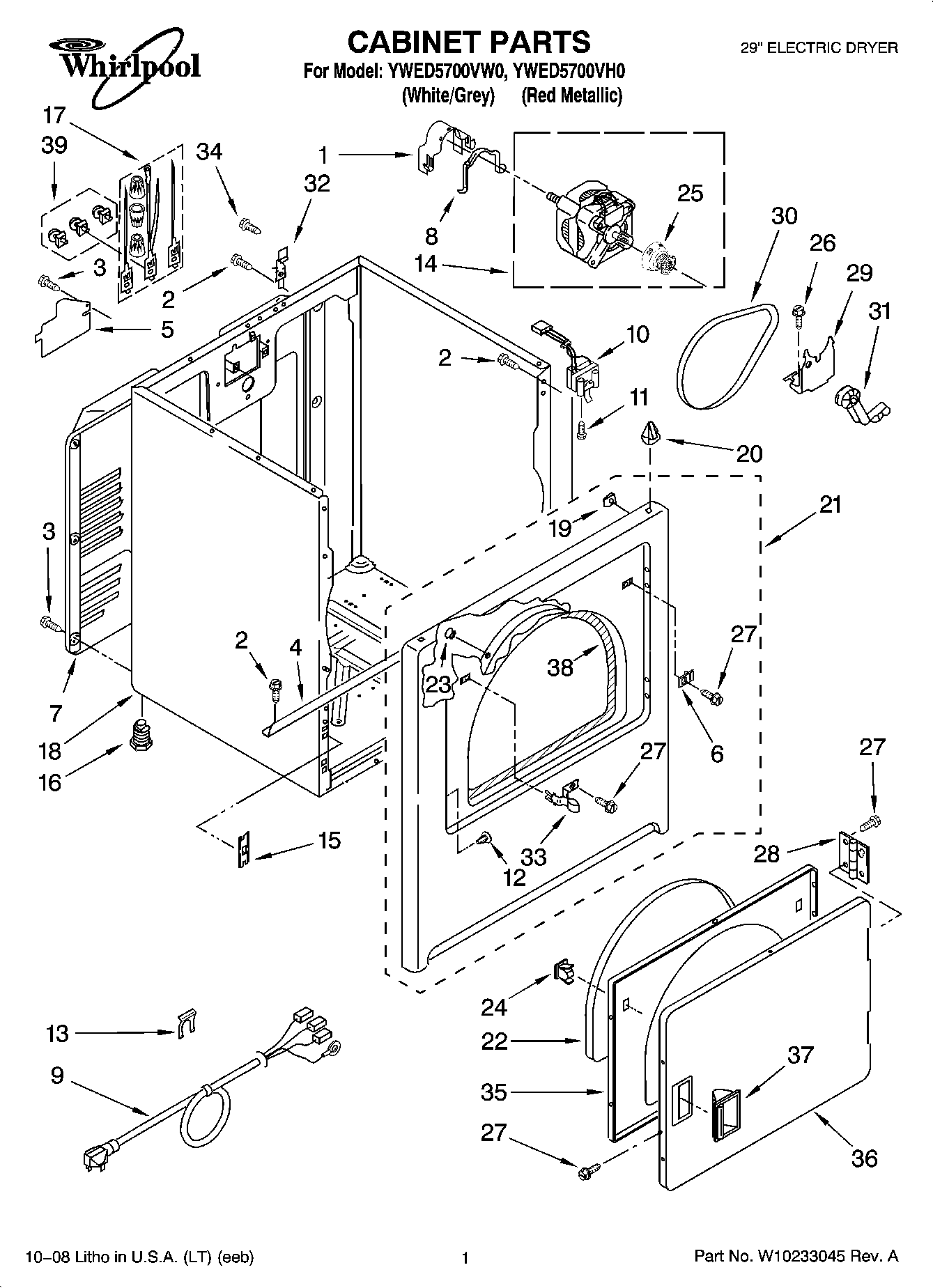

YWED5700VW0 01 – CABINET PARTS

Products

Position	Product
1	WP3404162 Whirlpool Clamp
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	Cover, Block
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	CLAMP
9	CORD-POWER
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	W11712577 Whirlpool Clip
14	279827 Whirlpool Dryer Drive Motor
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	CABINET (RED (INCLUDES ILLUS. 4))
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front (Red)
21	Panel, Front
22	SEAL-DOOR DRYER
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	WP8066184 Whirlpool Dryer Motor Pulley
26	3400500 Whirlpool Screw
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP348780 Whirlpool Base
30	341241 Whirlpool Dryer Drum Belt
31	WP691366 Whirlpool Dryer Idler Pulley Assembly
32	WP8066217 Whirlpool Hinge
33	W11429589 Whirlpool Strike
34	W10850756 Whirlpool Screw
35	WP3402341 Whirlpool Door
36	Door, Front (Red)
36	W10861227 Whirlpool Door Assembly
37	Handle, Door (Red)
37	WPW10549553 Whirlpool Dryer Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
