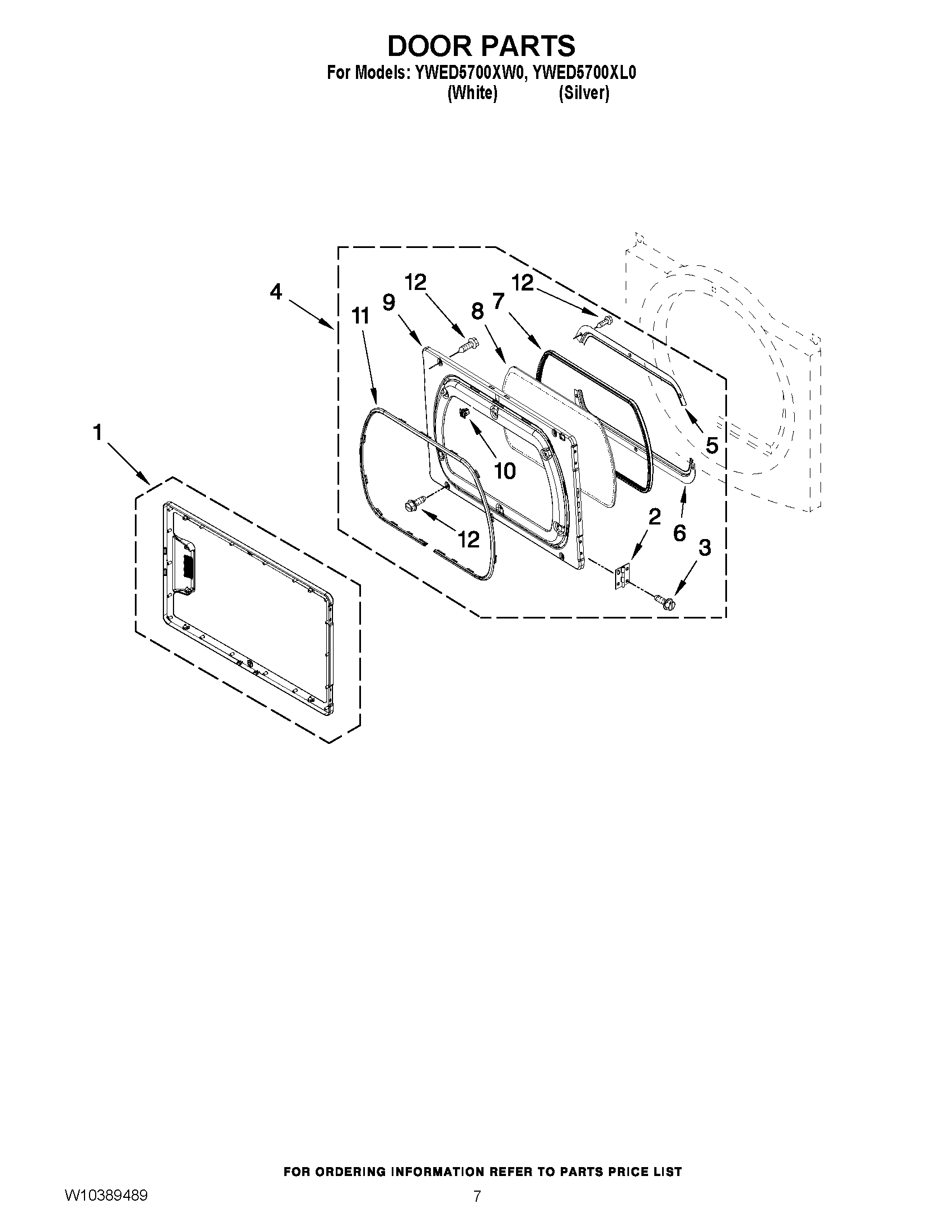

YWED5700XW0 04 – DOOR PARTS

Products

PositionProduct
1OUTER DOOR ASSEMBLY (SILVER)
1WPW10284127 Whirlpool Door
2HINGE & PIN ASSEMBLY (SILVER)
2W11175815 Whirlpool Hinge
3WP488627 Whirlpool Refrigerator Screw
4INNER DOOR ASSEMBLY
5RETAINER, GLASS UPPER
6RETAINER, GLASS LOWER
7W11676508 Whirlpool Dryer Seal
8GLASS, DOOR
9W11652037 Whirlpool Door
10279570 Whirlpool Dryer Door Latch Kit
11WPW10354795 Whirlpool Door Seal
12WP3373329 Whirlpool Dishwasher Screw
