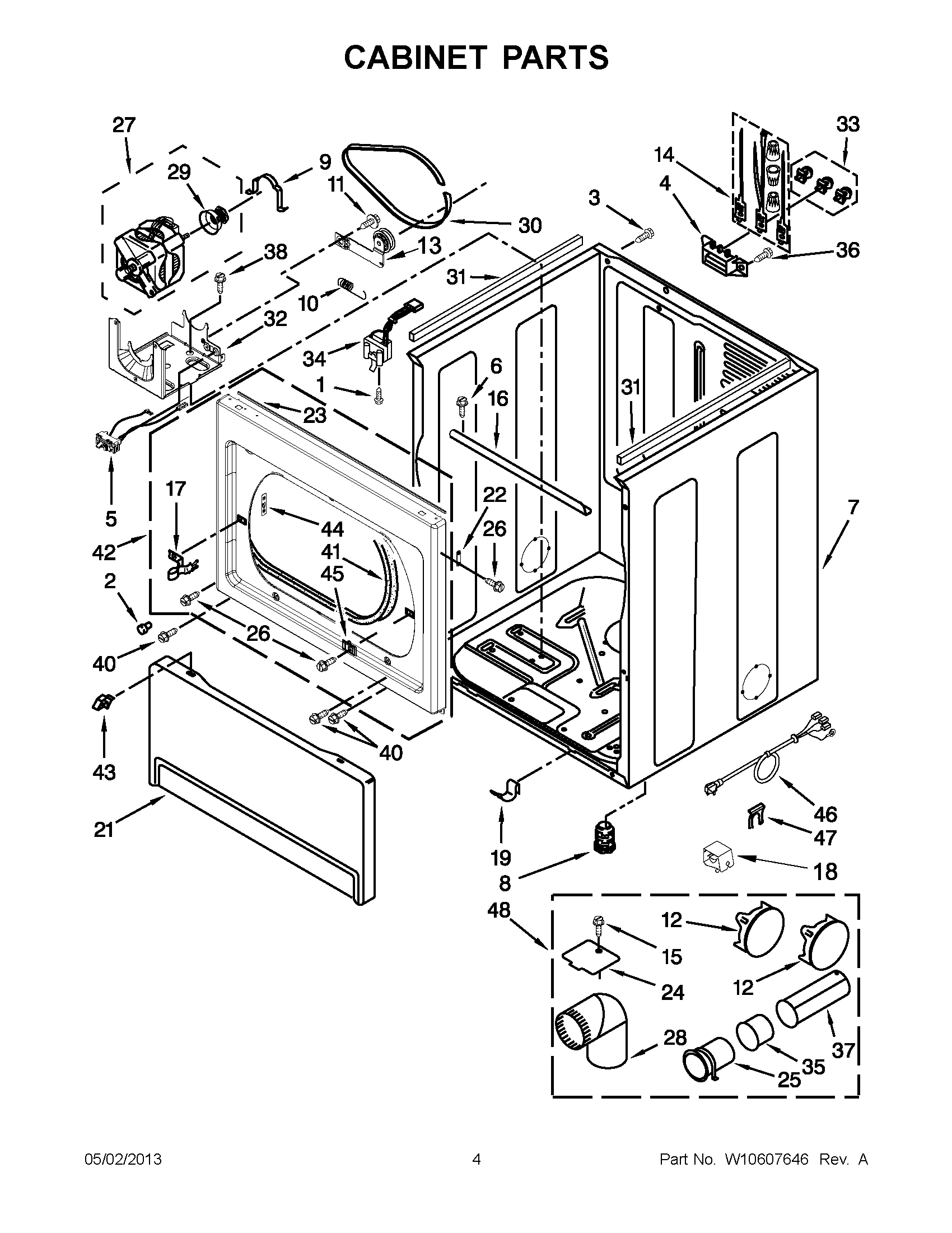

YWED5700XW1 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP3395530 Whirlpool Screw
2	693152 Whirlpool Bumper
3	W11693756 Whirlpool Screw Assembly
4	WP3397659 Whirlpool Terminal Block
5	W10847984 Whirlpool Switch
6	WP488729 Whirlpool Refrigerator Door Screw
7	W11417441 Whirlpool Cabinet
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	W10837240 Whirlpool Dryer Idler Pulley
14	279318 Whirlpool Terminal
15	WPW10139210 Whirlpool Screw
16	W10236068 Whirlpool Bracket
17	W11429589 Whirlpool Strike
18	CABLE TIE
19	WPW10291934 Whirlpool Clip
21	WP3406797 Whirlpool Toe Panel
22	W10191265 Whirlpool Plug
23	W10312811 Whirlpool Seal
24	WPW10354249 Whirlpool Cover
25	WP8563747 Whirlpool Exhaust Pipe
26	WP488627 Whirlpool Refrigerator Screw
27	279787 Whirlpool Dryer Drive Motor
28	WPW10416072 Whirlpool Elbow
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10336128 Whirlpool Seal
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WP3406107 Whirlpool Dryer Door Switch
35	WPW10331278 Whirlpool Exhaust Pipe
36	W10850756 Whirlpool Screw
37	WP8563749 Whirlpool Exhaust Pipe
38	SCREW
40	WP308685 Whirlpool Microwave Screw
41	WP3387242 Whirlpool Seal
42	W10362983 Whirlpool Panel
43	WP3388229 Whirlpool Dryer Spring Clip
44	WP3390902 Whirlpool Clip
45	WP3403630 Whirlpool Plug
46	CORD-POWER
47	W11712577 Whirlpool Clip
48	W10331132 Whirlpool Plug
