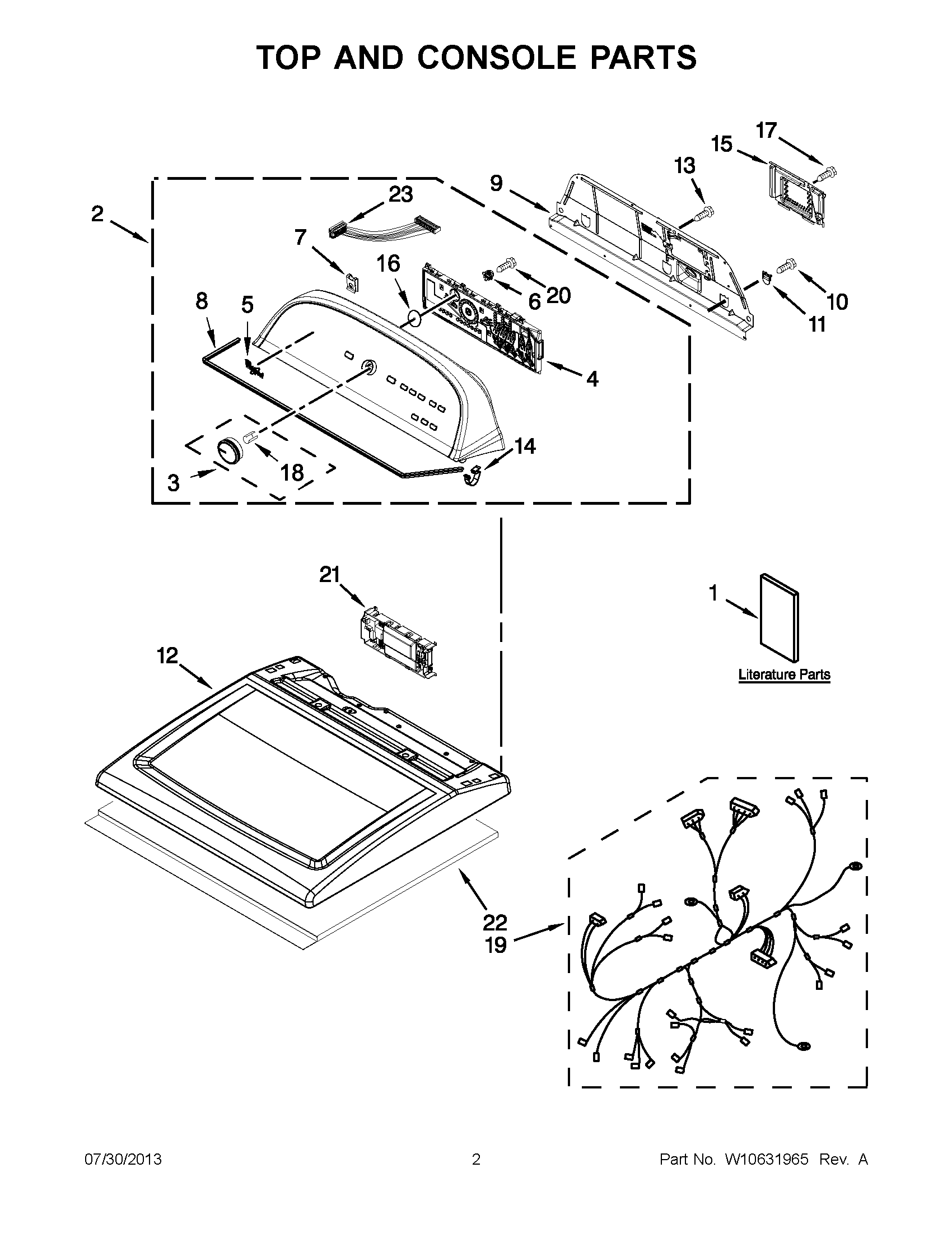

YWED5800BC0 01 – TOP AND CONSOLE PARTS

YWED5800BC0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED5800BC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1GUIDE, USE AND CARE
1TECH SHEET
2ASSEMBLY, CONSOLE (WHITE)
2WPW10562303 Whirlpool Console
3ASSEMBLY, CONTROL KNOB (WHITE)
3W10579296 Whirlpool Knob
4WPW10582405-includeCORE Whirlpool WPW10582405 Washer Electronic Control Board + Core
5WPW10393264 Whirlpool Refrigerator Nameplate
6W10274524 Whirlpool Grommet
7W11213336 Whirlpool Nut
8W10280079 Whirlpool Seal
9W10550615 Whirlpool Rear Panel
10WP693995 Whirlpool Screw
11W10279552 Whirlpool Plug
12W11641122 Whirlpool Top
12TOP (WHITE)
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10323092 Whirlpool Seal
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19HARNESS, MAIN
20W10853898 Whirlpool Screw
21WPW10568610-includeCORE Whirlpool WPW10568610 Washer Electronic Control Board + Core
22W10123956 Whirlpool Sound Absorber
23CABLE, USER INTERFACE
