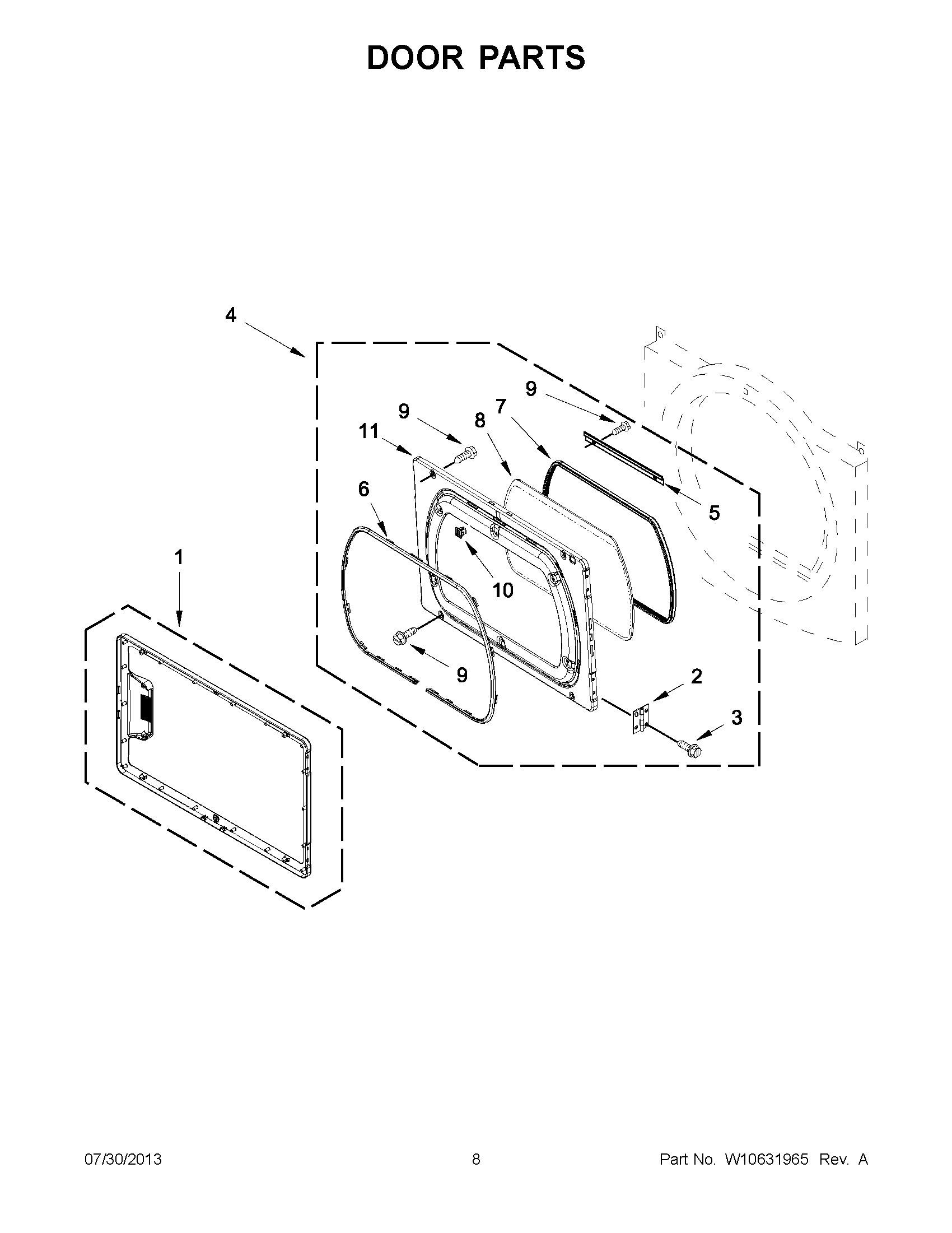

YWED5800BW0 04 – DOOR PARTS

YWED5800BW0 04 – DOOR PARTS

Written by

in

YWED5800BW0 04 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, OUTER DOOR
1WPW10284127 Whirlpool Door
2ASSEMBLY, HINGE & PIN (WHITE)
2WPW10279703 Whirlpool Hinge Assembly
3WP488627 Whirlpool Refrigerator Screw
4W11652037 Whirlpool Door
5W10822054 Whirlpool Retainer
6WPW10354795 Whirlpool Door Seal
7W11676508 Whirlpool Dryer Seal
8GLASS, DOOR
9WP3373329 Whirlpool Dishwasher Screw
10279570 Whirlpool Dryer Door Latch Kit
11DOOR, INNER (WHITE)
