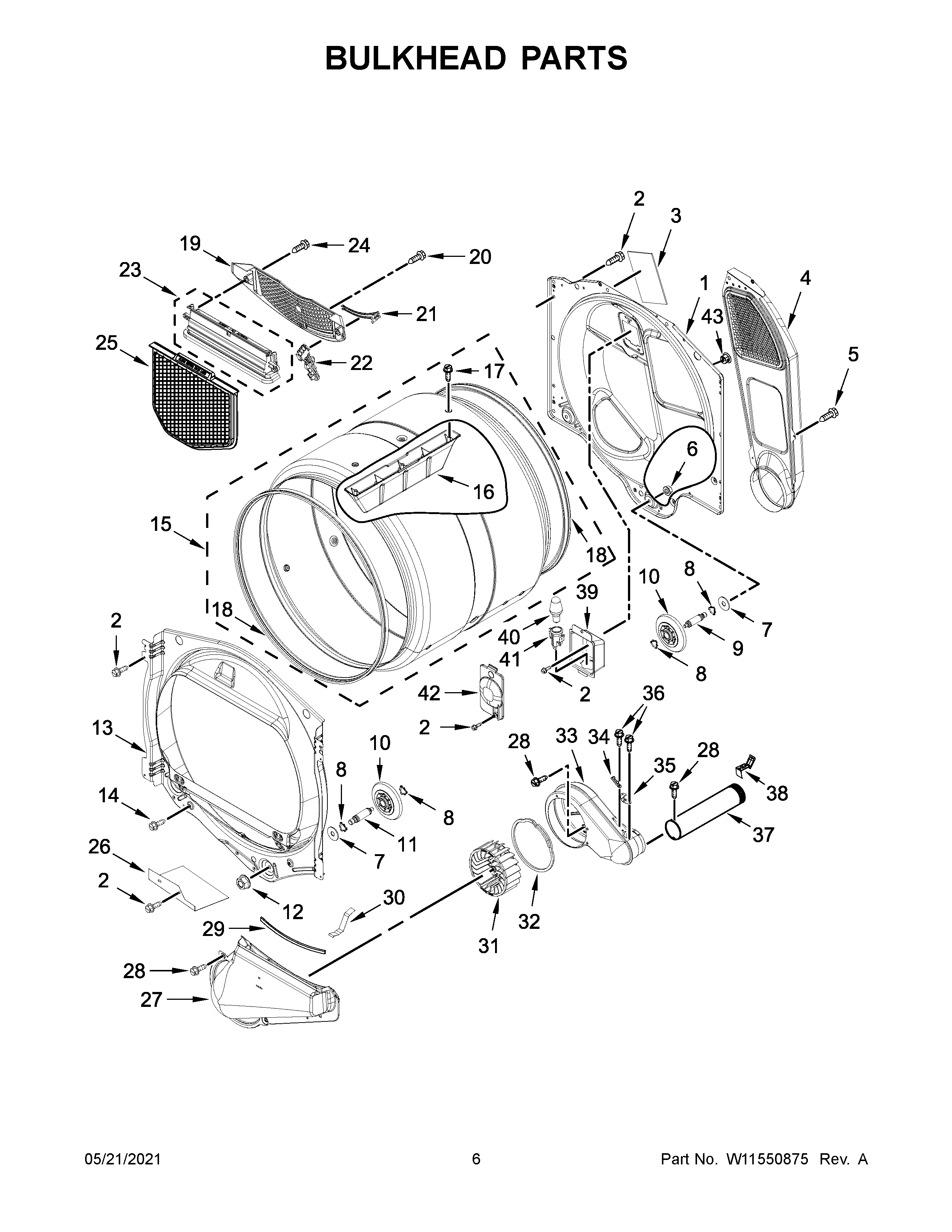

YWED6120HW2 04 – BULKHEAD PARTS

Products

Position	Product
1	W11299301 Whirlpool Bulkhead Assembly
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11409002 Whirlpool Pad
4	W11677720 Whirlpool Air Duct
5	WP90767 Whirlpool Screw
6	WPW10080190 Whirlpool Nut
7	W11236646 Whirlpool Washer Assembly
8	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
9	SHAFT
10	WPW10314173 Whirlpool Dryer Drum Support Wheel
11	SHAFT
12	WPW10080210 Whirlpool Nut
13	W11162467 Whirlpool Bulkhead Assembly
14	WP308685 Whirlpool Microwave Screw
15	W10545923 Whirlpool Drum Assembly
16	WPW10113136 Whirlpool Drum Baffle
17	W10853898 Whirlpool Screw
18	280114 Whirlpool Dryer Drum Seal
19	W11086603 Whirlpool Dryer Link Screen Air Grille
21	WP3387223 Whirlpool Electrode Assembly
22	WPW10298258 Whirlpool Wire Harness
23	W11129408 Whirlpool Out Housing
24	WP3387230 Whirlpool Screw
25	W10120998 Whirlpool Dryer Lint Screen Filter
26	W11257251 Whirlpool Shield
27	WPW10128606 Whirlpool Lint Duct
28	WP489463 Whirlpool Refrigerator Screw
29	WP697813 Whirlpool Seal
30	WP8066208 Whirlpool Clip
31	WP697772 Whirlpool Dryer Blower Wheel
32	W11596046 Whirlpool Seal
33	W10888146 Whirlpool Housing
34	FUSE-THRML
35	WP8577274 Whirlpool Dryer Thermistor
36	WP693995 Whirlpool Screw
37	279936 Whirlpool Exhaust Pipe
38	W11684573 Whirlpool Clip Assembly
39	3977373 Whirlpool Bracket
40	WP22002263 Whirlpool Dryer 10W Light Bulb
41	W11222979 Whirlpool Socket
42	W11226088 Whirlpool Lens Assembly
43	8529007 Whirlpool Plug
