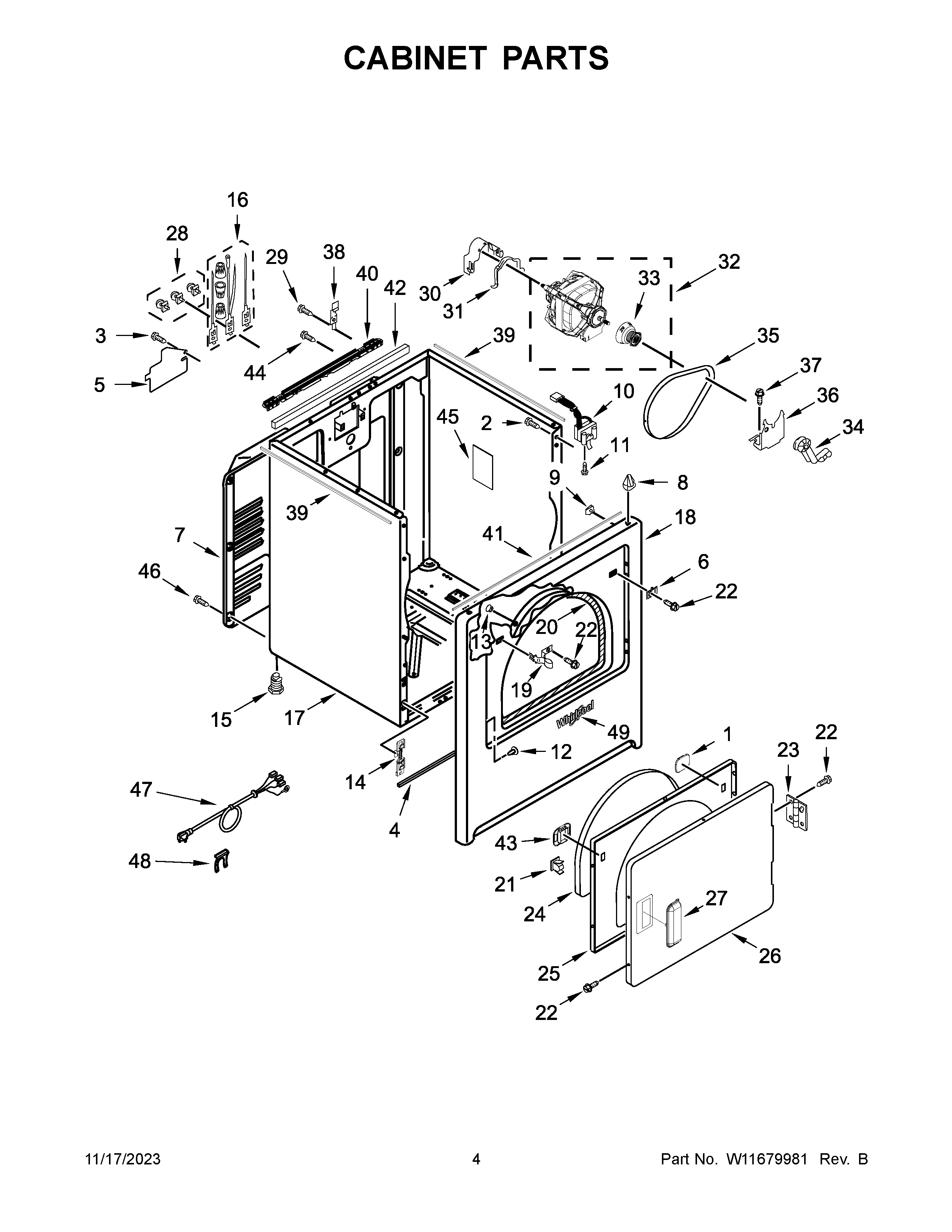

YWED6150PB0 03 – CABINET PARTS

Products

Position	Product
1	W11173656 Whirlpool Cover
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11298298 Whirlpool Cover
6	W11684591 Whirlpool Dryer Plug
7	W11708115 Whirlpool Rear Panel
8	WP8066092 Whirlpool Panel Clip
9	WP98234 Whirlpool Nut
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	HINGE HOLE COVER (BLACK)
13	279220 Whirlpool Clip
14	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
15	FEET-LVLNG (SET OF 4)
16	279318 Whirlpool Terminal
17	CABINET (BLACK)
18	W11633281 Whirlpool Panel
19	W11429589 Whirlpool Strike
20	W11035878 Whirlpool Bearing and Seal
21	W11429587 Whirlpool Catch Assembly
22	WP488627 Whirlpool Refrigerator Screw
23	HINGE
24	SEAL-DOOR DRYER
25	WPW10463967 Whirlpool Door Assembly
26	W11633313 Whirlpool Door
27	W11633280 Whirlpool Handle
28	279393 Whirlpool Terminal Block Screw and Nut Kit
29	W10850756 Whirlpool Screw
30	WP3404162 Whirlpool Clamp
31	CLAMP
32	279827 Whirlpool Dryer Drive Motor
33	WP8066184 Whirlpool Dryer Motor Pulley
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	341241 Whirlpool Dryer Drum Belt
36	WP348780 Whirlpool Base
37	3400500 Whirlpool Screw
38	W11715722 Whirlpool Hinge
39	WPW10157932 Whirlpool Seal Foam
40	W10641295 Whirlpool Bracket
41	W10316619 Whirlpool Seal
42	W10685675 Whirlpool Seal
43	WPW10529197 Whirlpool Catch Assembly
44	SCREW
45	W11409002 Whirlpool Pad
46	WP9740848 Whirlpool Dishwasher Screw
47	W11710615 Whirlpool Cord-Power
48	W11712577 Whirlpool Clip
49	W11178521 Whirlpool Dishwasher Nameplate
