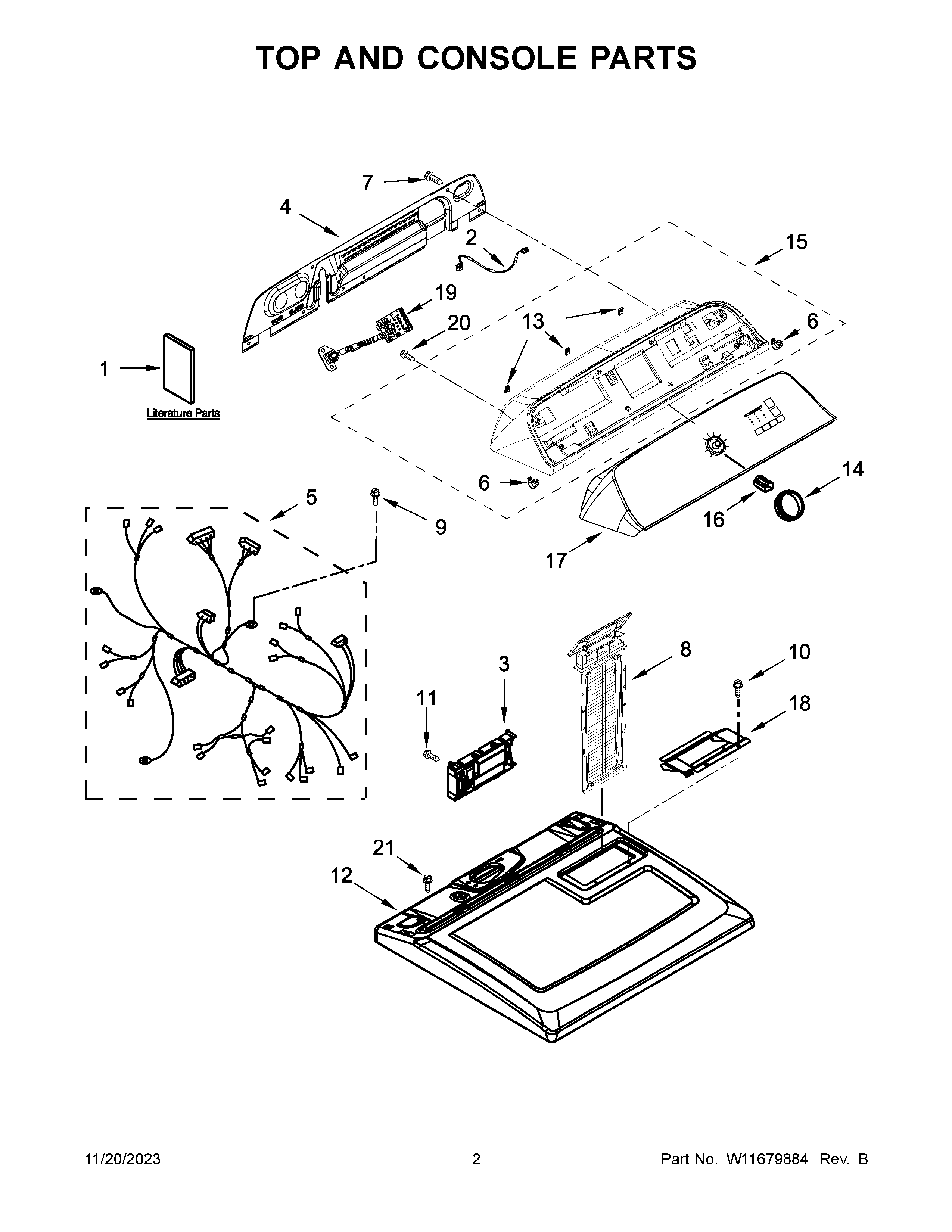

YWED6150PW0 02 – TOP AND CONSOLE PARTS

YWED6150PW0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED6150PW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1ATECH SHEET
1BQUICK START GUIDE
2W11551859 Whirlpool Wire Harness
3W11728016-includeCORE Whirlpool Electronic Control+Core
4W10775189 Whirlpool Rear Panel
5HARNESS, MAIN
6WP8312709 Whirlpool Endcap Clip
7WP693995 Whirlpool Screw
8SCREEN
9W10850756 Whirlpool Screw
10W11693756 Whirlpool Screw Assembly
11WP90767 Whirlpool Screw
12W11222514 Whirlpool Top Assembly
13W11213336 Whirlpool Nut
14W11662669 Whirlpool Dryer Knob
15W11406485 Whirlpool Console
16WP688805 Whirlpool Spring Clip
17W11680405 Whirlpool Overlay Assembly
18W10662472 Whirlpool Cover Assembly
19W11627521-includeCORE Whirlpool W11627521 Washer Electronic Control Board + Core
20WP9740848 Whirlpool Dishwasher Screw
21SCREW
