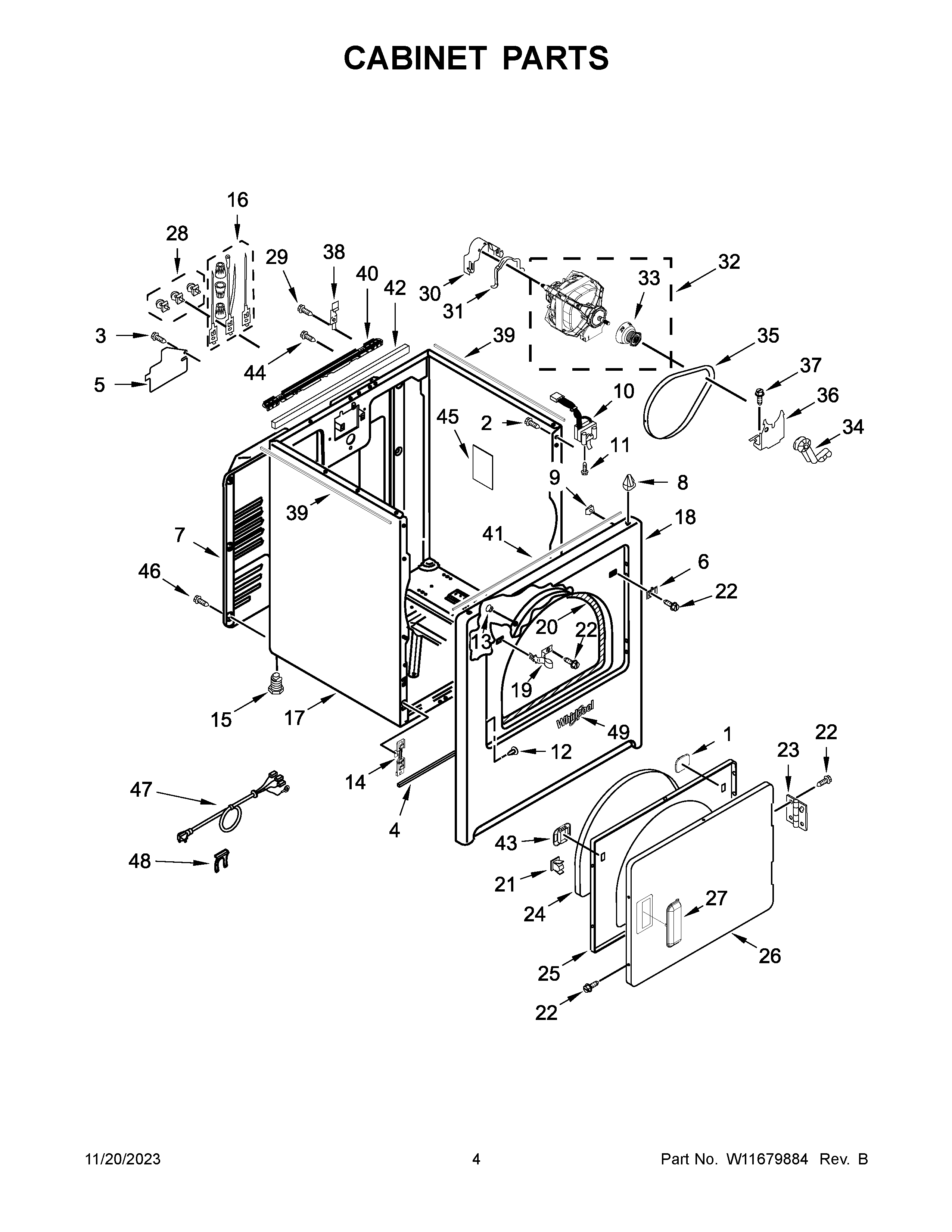

YWED6150PW0 03 – CABINET PARTS

Products

PositionProduct
1W11173656 Whirlpool Cover
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4W11596046 Whirlpool Seal
5W11298298 Whirlpool Cover
6W11684591 Whirlpool Dryer Plug
7W11708115 Whirlpool Rear Panel
8WP8066092 Whirlpool Panel Clip
9WP98234 Whirlpool Nut
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12W11481394 Whirlpool Plug Assembly
13279220 Whirlpool Clip
14W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
15FEET-LVLNG (SET OF 4)
16279318 Whirlpool Terminal
178533643 Whirlpool Dryer White Cabinet
18W10806345 Whirlpool Panel
19W11429589 Whirlpool Strike
20W11035878 Whirlpool Bearing and Seal
21W11429587 Whirlpool Catch Assembly
22WP488627 Whirlpool Refrigerator Screw
23WPW10362431 Whirlpool Hinge Assembly
24SEAL-DOOR DRYER
25WPW10463967 Whirlpool Door Assembly
26W10861224 Whirlpool Door
27W10861225 Whirlpool Dryer White Door Handle
28279393 Whirlpool Terminal Block Screw and Nut Kit
29W10850756 Whirlpool Screw
30WP3404162 Whirlpool Clamp
31CLAMP
32279827 Whirlpool Dryer Drive Motor
33WP8066184 Whirlpool Dryer Motor Pulley
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35341241 Whirlpool Dryer Drum Belt
36WP348780 Whirlpool Base
373400500 Whirlpool Screw
38W11715722 Whirlpool Hinge
39WPW10157932 Whirlpool Seal Foam
40W10641295 Whirlpool Bracket
41W10316619 Whirlpool Seal
42W10685675 Whirlpool Seal
43WPW10529197 Whirlpool Catch Assembly
44SCREW
45W11409002 Whirlpool Pad
46WP9740848 Whirlpool Dishwasher Screw
47W11710615 Whirlpool Cord-Power
48W11712577 Whirlpool Clip
49W11178521 Whirlpool Dishwasher Nameplate
