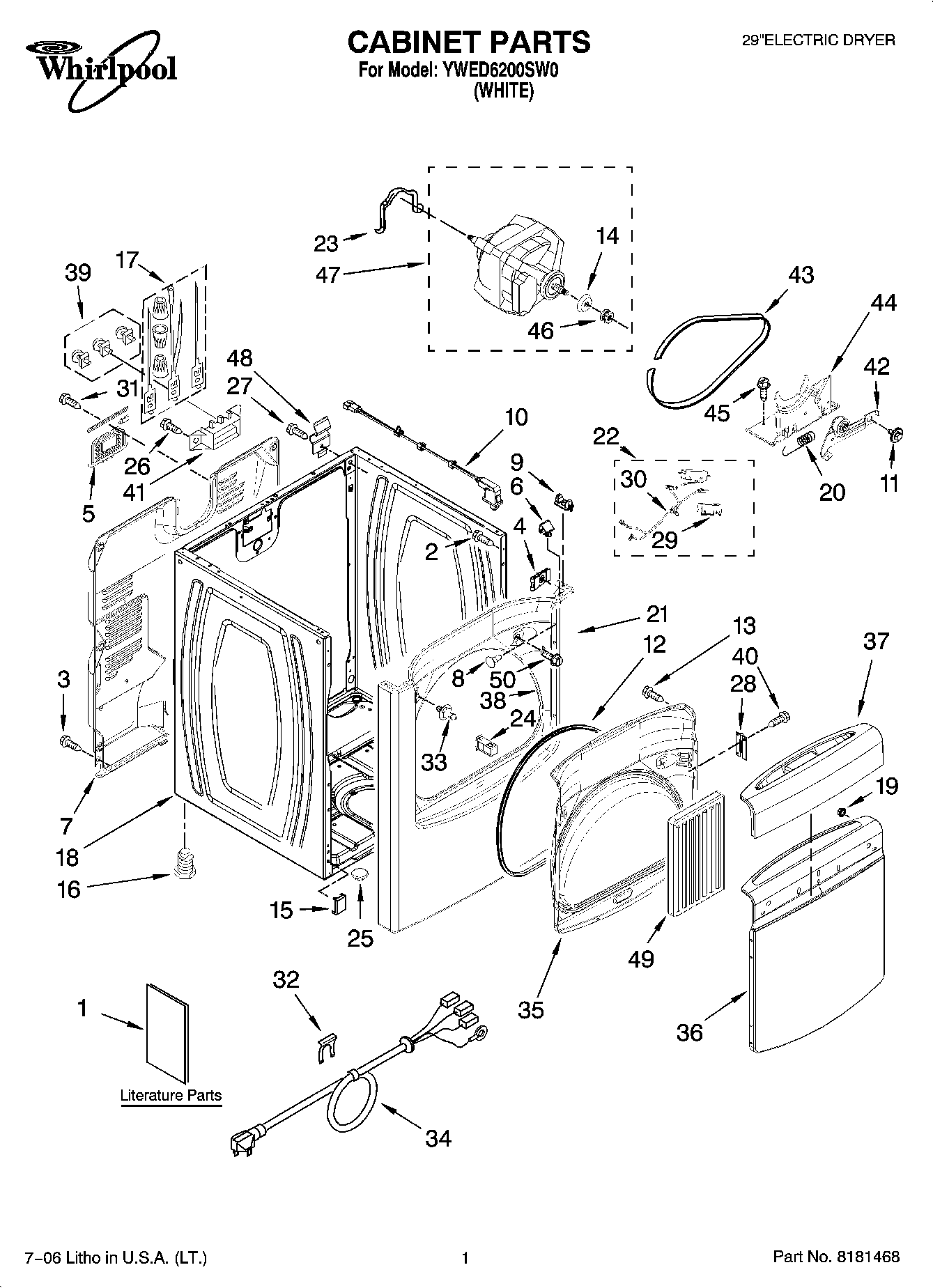

YWED6200SW0 01 – CABINET PARTS

YWED6200SW0 01 – CABINET PARTS

Written by

in

YWED6200SW0 01 – CABINET PARTS

Products

PositionProduct
1Dryer
1Use & Care Guide
1Guide, Quick Start
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Tech Sheet
2SCREW
3WP693995 Whirlpool Screw
4Clip, Ground (2)
5WPW10110241 Whirlpool Cover Assembly
6WP8576625 Whirlpool Lock
7Panel, Rear
8WP3404413 Whirlpool Plug
9WP8568303 Whirlpool Lock Assembly
10W10702726 Whirlpool Door Switch
11WP3389420 Whirlpool Screw
12W10239307 Whirlpool Door Seal
14Restrainer, Belt
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
18CABINET
19WP308499 Whirlpool Nut
20WPW10446781 Whirlpool Spring
21Panel, Front
22WP8566208 Whirlpool Switch Plug
23WP660658 Whirlpool Clamp
24WPW10111905 Whirlpool Dryer Door Catch
258578560 Whirlpool Plug
26WP308685 Whirlpool Microwave Screw
27WP3390631 Whirlpool Screw
28WP8565018 Whirlpool Hinge
298564011 Whirlpool Bracket
30Belt-Switch Jumper
31W10850756 Whirlpool Screw
32Cord, Power
33W10295405 Whirlpool Strike
34W11712577 Whirlpool Clip
35Door, Inner
36Door Outer
37Handle, Door
38W10044490 Whirlpool Seal Assembly
39279393 Whirlpool Terminal Block Screw and Nut Kit
40WP488627 Whirlpool Refrigerator Screw
41WP3397659 Whirlpool Terminal Block
428547174V Whirlpool Dryer Idler Pulley
43WP8547168 Whirlpool Belt
44WP8547166 Whirlpool Base Assembly
45W10002600 Whirlpool Screw
46WP8066184 Whirlpool Dryer Motor Pulley
47WPW10463866 Whirlpool Drive Motor
48WP8066217 Whirlpool Hinge
49Filler-Door
50Screw, 10-16 x 3/64
