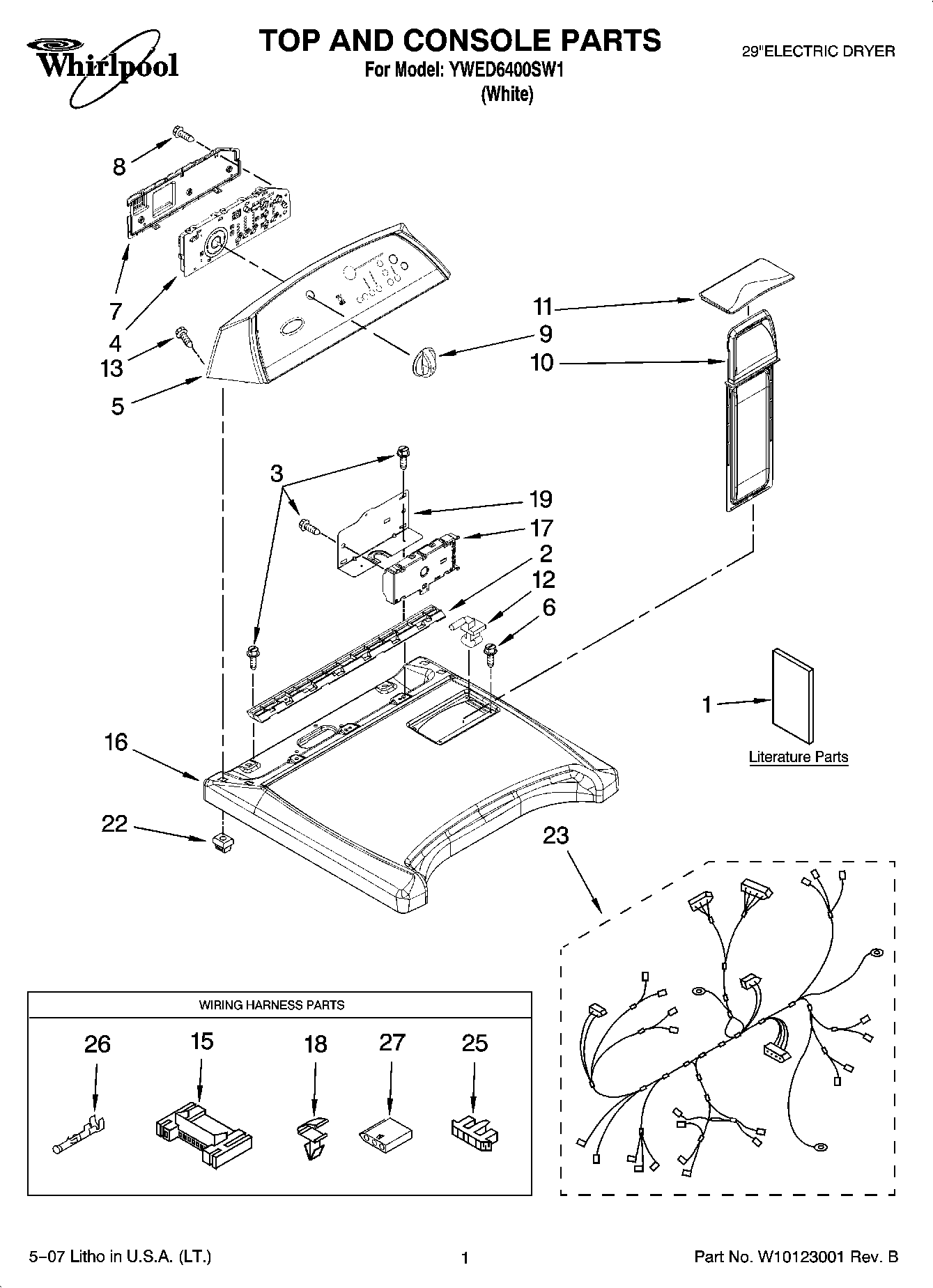

YWED6400SW1 01 – TOP AND CONSOLE PARTS

YWED6400SW1 01 – TOP AND CONSOLE PARTS

Written by

in

YWED6400SW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1Guide, Quick Start
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
2Bracket, Console
3WP33001882 Whirlpool Screw
4User Interface
5Panel, Console
6WP3196557 Whirlpool Screw
78564265 Whirlpool Cover
8WP4449745 Whirlpool Screw
9WP8574957 Whirlpool Knob
10WP8572270 Whirlpool Dryer Lint Trap Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13SCREW
153395683 Whirlpool Connector
16Top
17Control, Electronic
18WP3394427 Whirlpool Clip
19Bracket, Machine Controller
22GROMMET
23Harness Wiring
253936144 Whirlpool Connector
26WP94614 Whirlpool Terminal
27Connector, Timer
