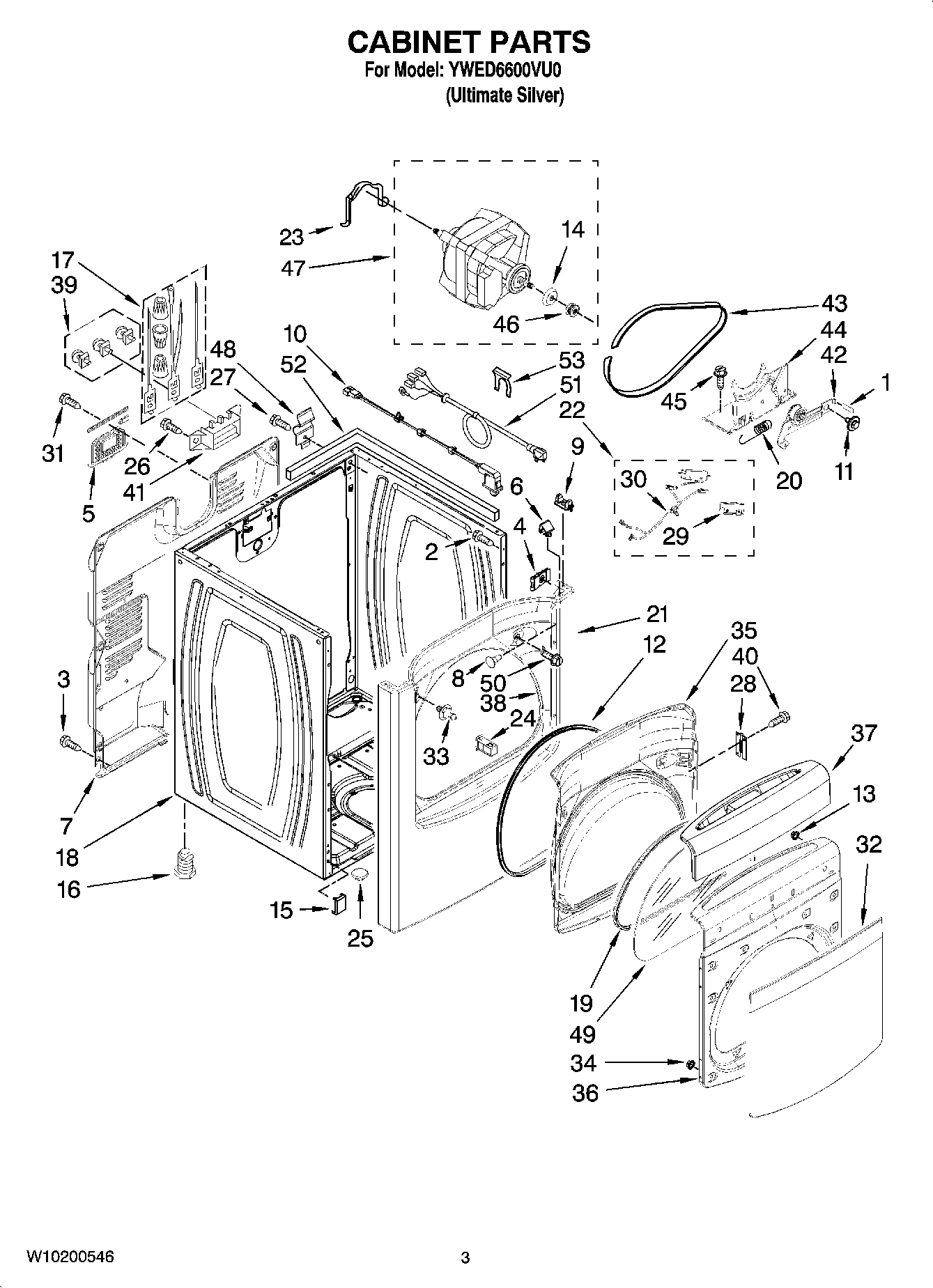

YWED6600VU0 02 – CABINET PARTS

Products

Position	Product
1	Pad, Idler Foam
2	SCREW
3	WP693995 Whirlpool Screw
4	Clip, Ground (2)
5	WPW10110241 Whirlpool Cover Assembly
6	WP8576625 Whirlpool Lock
7	Panel, Rear
8	PLUG, HOLE
9	WP8568303 Whirlpool Lock Assembly
10	W10702726 Whirlpool Door Switch
11	WP3389420 Whirlpool Screw
12	W10239307 Whirlpool Door Seal
14	Restrainer, Belt
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	CABINET
19	Seal-Window
20	WPW10446781 Whirlpool Spring
21	Panel, Front
22	WP8566208 Whirlpool Switch Plug
23	WP660658 Whirlpool Clamp
24	WPW10111905 Whirlpool Dryer Door Catch
25	8578560 Whirlpool Plug
26	WP308685 Whirlpool Microwave Screw
27	WP3390631 Whirlpool Screw
28	Hinge, Assembly
29	8564011 Whirlpool Bracket
30	Belt-Switch Jumper
31	W10850756 Whirlpool Screw
32	Window, Outer Door
33	W10295405 Whirlpool Strike
34	WP308499 Whirlpool Nut
35	Door Inner
36	Door, Outer
37	W10159437 Whirlpool Handle
38	W10044490 Whirlpool Seal Assembly
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	WP488627 Whirlpool Refrigerator Screw
41	WP3397659 Whirlpool Terminal Block
42	8547174V Whirlpool Dryer Idler Pulley
43	WP8547168 Whirlpool Belt
44	WP8547166 Whirlpool Base Assembly
45	W10002600 Whirlpool Screw
46	WP8066184 Whirlpool Dryer Motor Pulley
47	WPW10463866 Whirlpool Drive Motor
48	WP8066217 Whirlpool Hinge
49	Glass, Inner Door
50	Screw, 10-16 x 3/64
51	Cord, Power
52	WPW10157932 Whirlpool Seal Foam
53	W11712577 Whirlpool Clip
