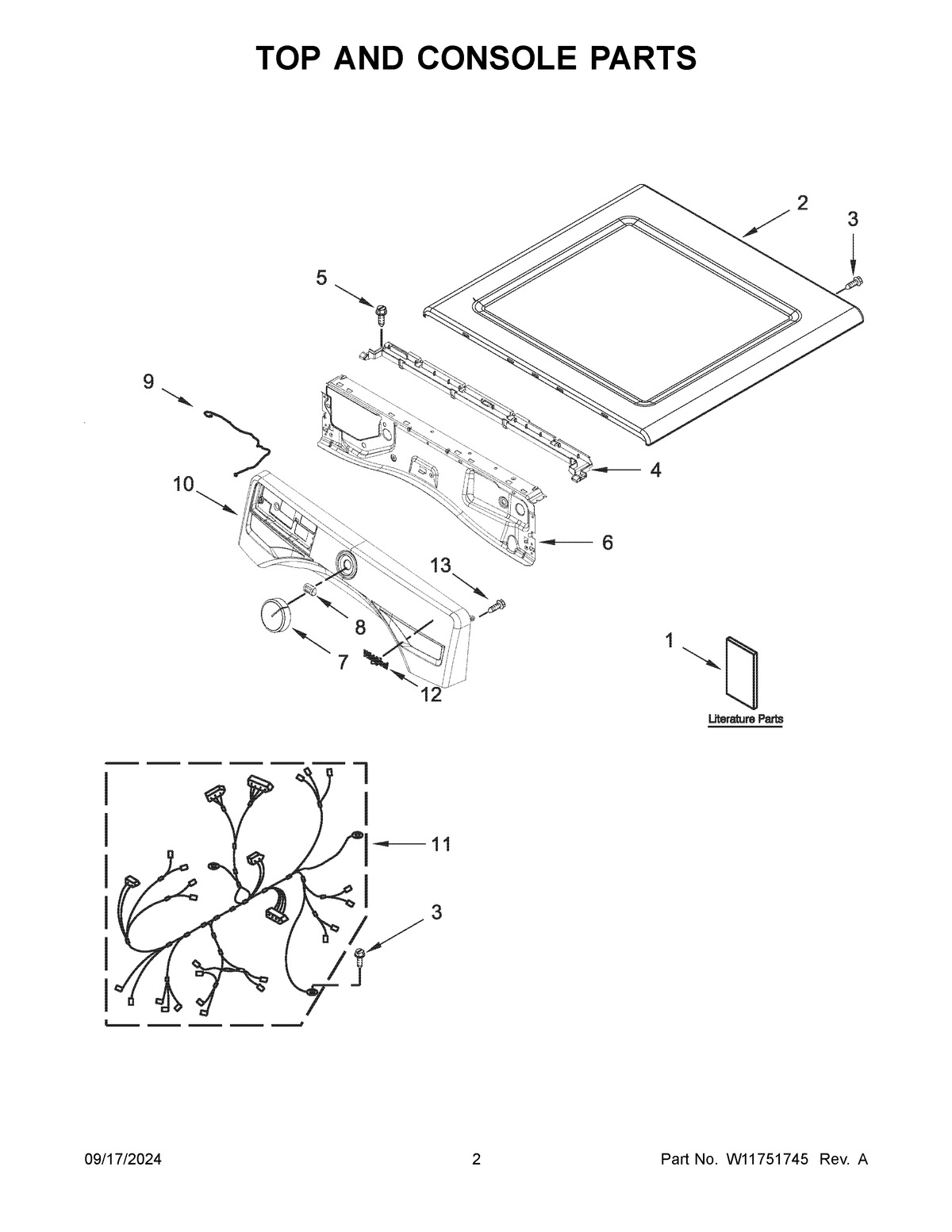

YWED6720RR0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1BQUICK START GUIDE
1CENERGY GUIDE
1OWNERS MANUAL
2TOP (RADIANT SILVER)
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7ASSEMBLY, KNOB
8WP8536939 Whirlpool Spring Clip
9HARNESS, ACU TO HMI
10CONSOLE + CORE
11HARNESS, WIRING (MAIN)
12W11223753 Whirlpool Refrigerator Nameplate
13WP9740848 Whirlpool Dishwasher Screw
