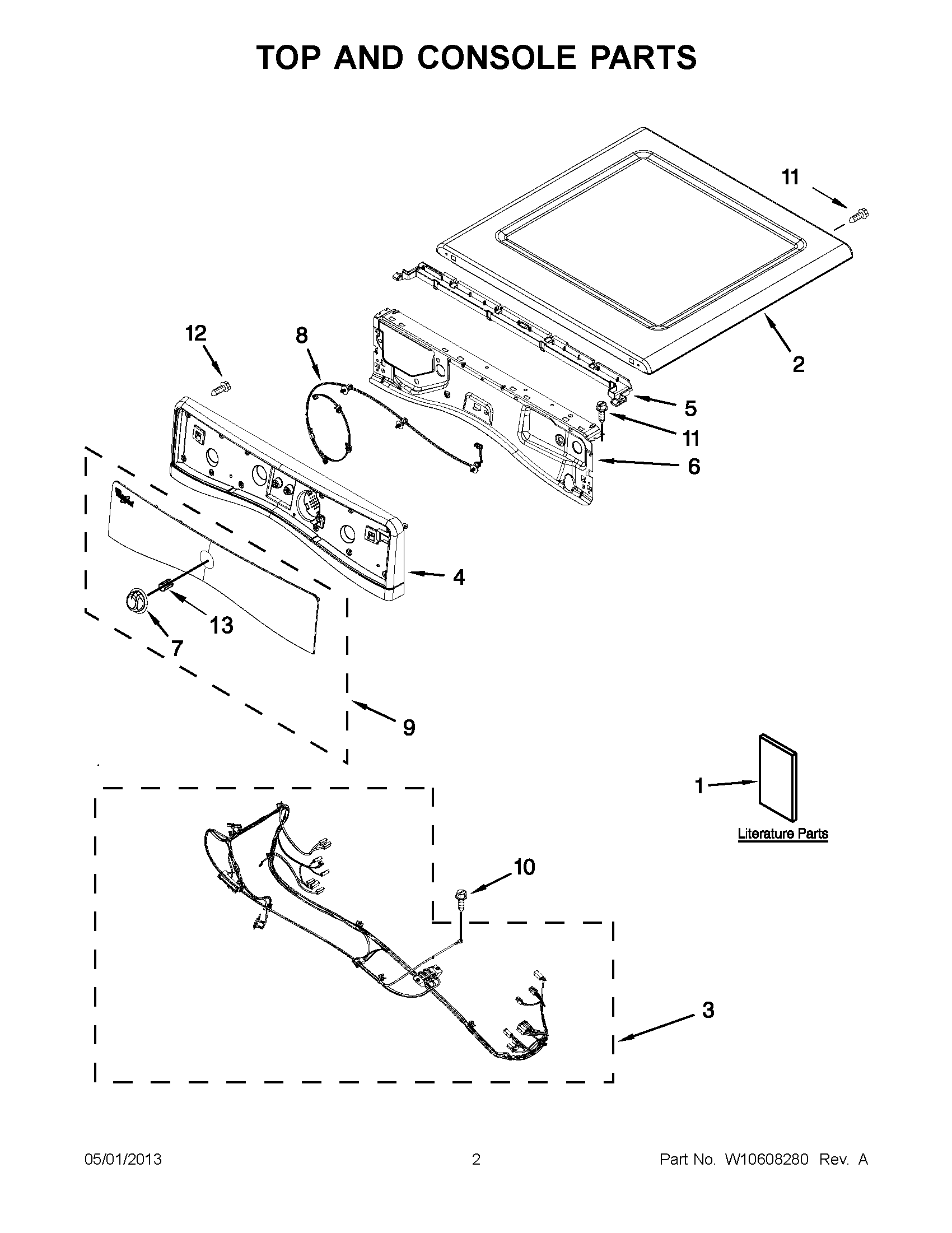

YWED70HEBW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1USE & CARE GUIDE
1WIRING DIAGRAM
2WPW10208383 Whirlpool Top Panel
3MAIN, WIRING HARNESS
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8W11025125 Whirlpool Wire Harness
9WPW10553790 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
