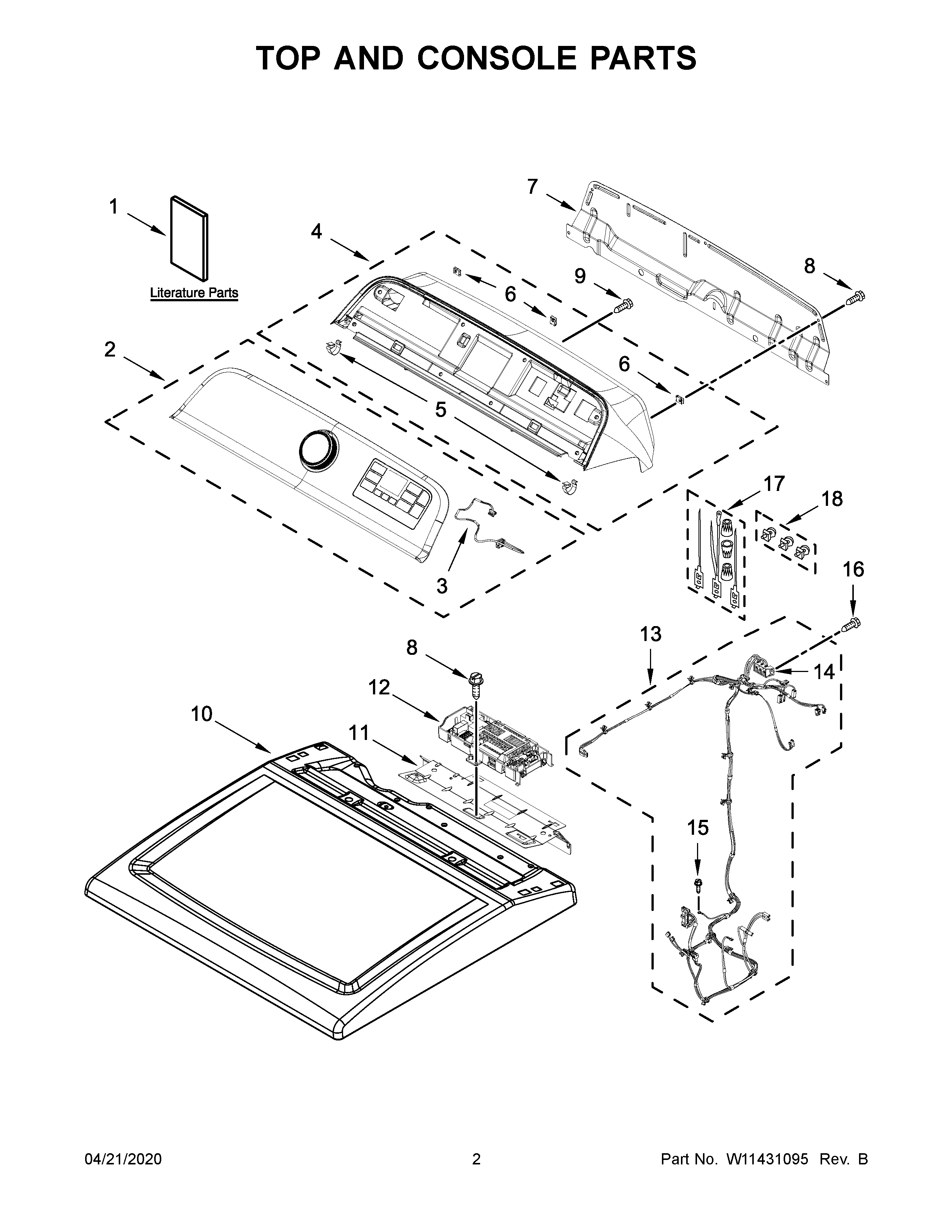

YWED7120HC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
1ATECH SHEET
2W11419059 Whirlpool Control Panel
3W11164312 Whirlpool Wire Harness
4W11401366 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7W11433112 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP9740848 Whirlpool Dishwasher Screw
10W11641122 Whirlpool Top
11W11431865 Whirlpool Bracket
12W11618916-includeCORE Whirlpool W11618916 Refrigerator Electronic Control Board
13HARNESS, MAIN WIRING
14WP3397659 Whirlpool Terminal Block
15W11693756 Whirlpool Screw Assembly
16WP308685 Whirlpool Microwave Screw
17279318 Whirlpool Terminal
18279393 Whirlpool Terminal Block Screw and Nut Kit
