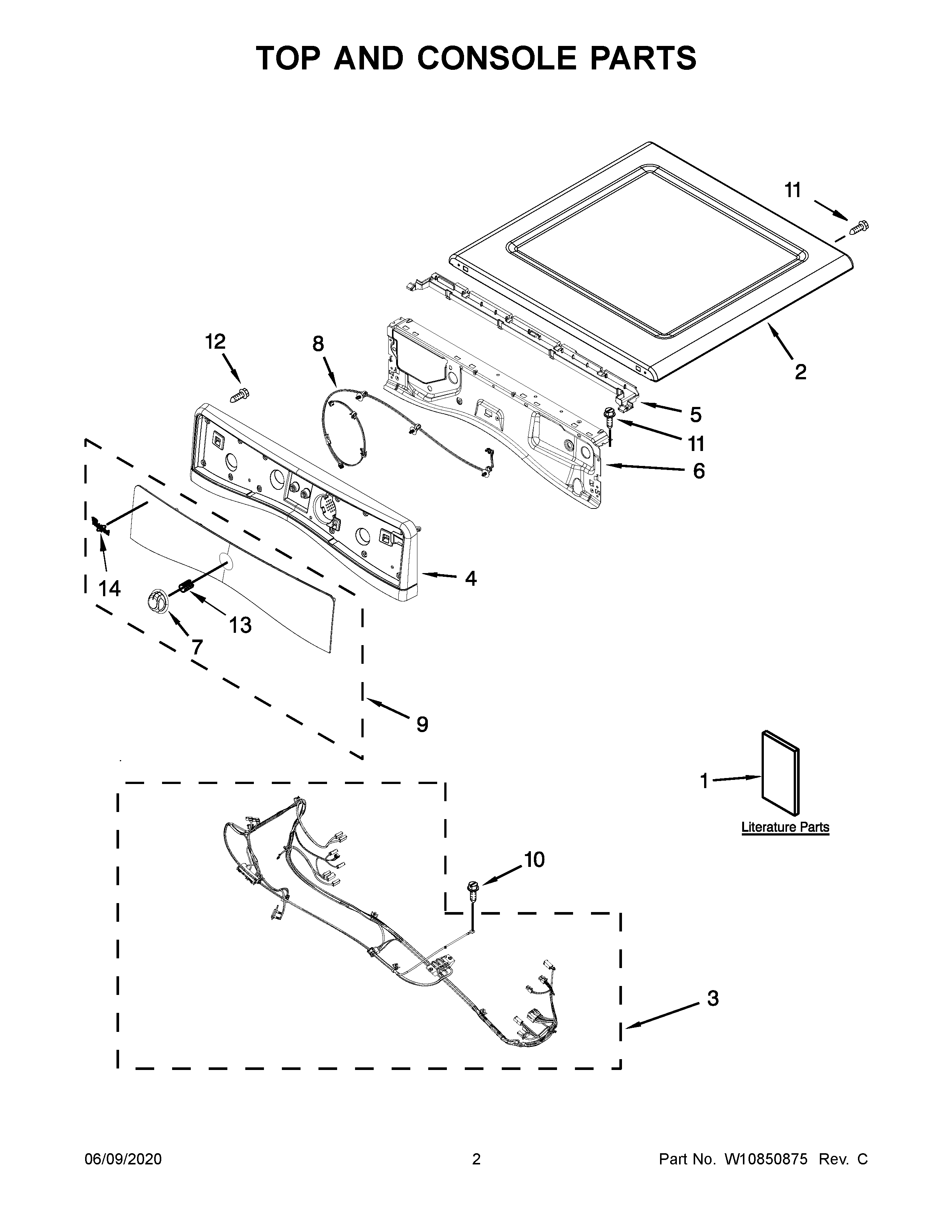

YWED72HEDW1 02 – TOP AND CONSOLE PARTS

YWED72HEDW1 02 – TOP AND CONSOLE PARTS

Written by

in

YWED72HEDW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CQUICK START GUIDE
1AUSE AND CARE GUIDE
1BTECH SHEET
2WPW10208383 Whirlpool Top Panel
3HARNESS, WIRING (MAIN)
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
8W11025125 Whirlpool Wire Harness
9IML ASSEMBLY (WHITE)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14BADGE (WHITE)
