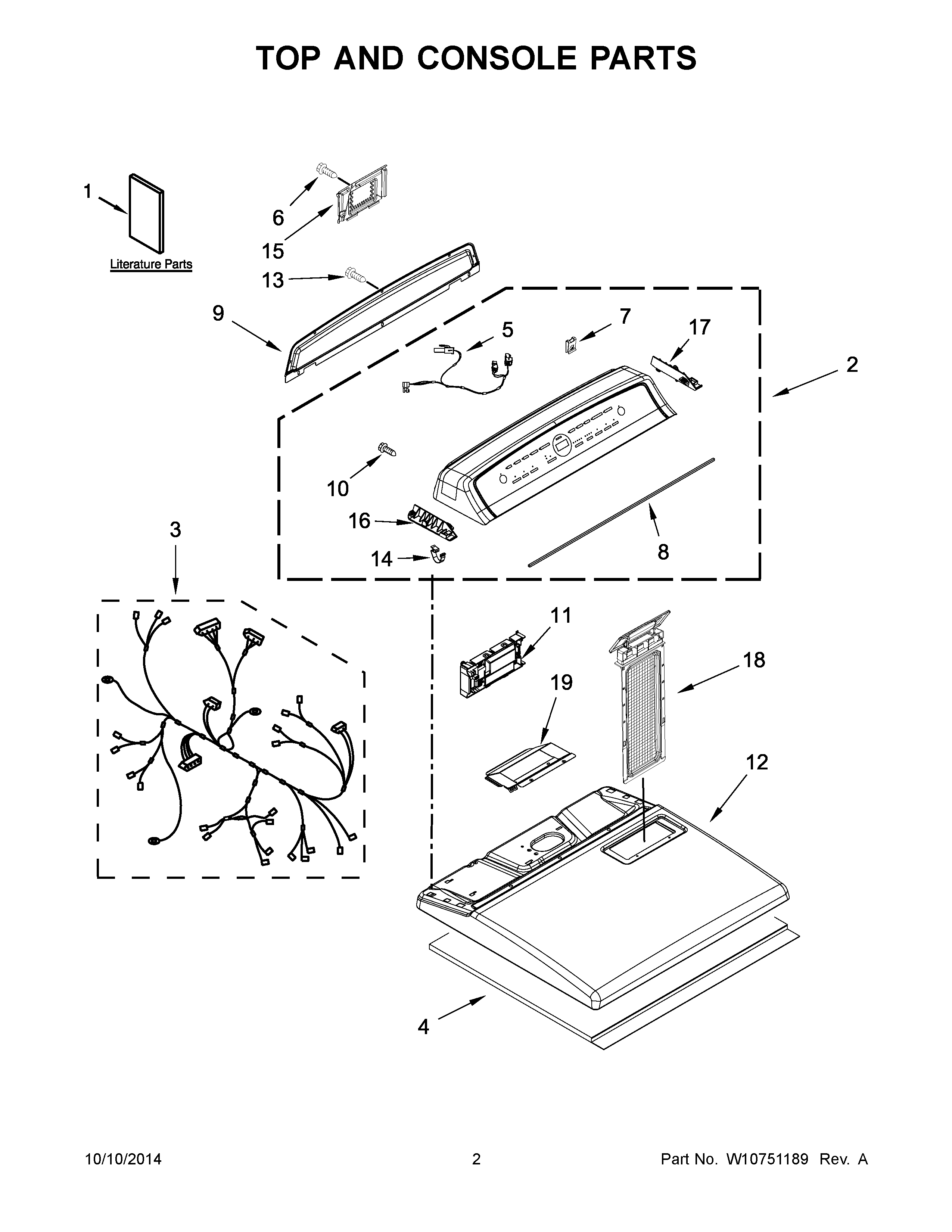

YWED7300DW0 02 – TOP AND CONSOLE PARTS

YWED7300DW0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED7300DW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1AGUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
2ASSEMBLY, CONSOLE (WHITE)
3HARNESS, WIRING
4W10123956 Whirlpool Sound Absorber
5W10634454 Whirlpool Wire Harness User Interface
6WP90767 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10775189 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11CONTROL, ELECTRONIC
12W11222514 Whirlpool Top Assembly
13W11311945 Whirlpool Refrigerator Screw
14WP8312709 Whirlpool Endcap Clip
15W10819767 Whirlpool Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18SCREEN
19W10662472 Whirlpool Cover Assembly
